Baja 202 Islander - Page 56

202 Islander
®
6.5
seCtIon 6 • eleCtrICal systeMs
R
Speed changes you.
TM.

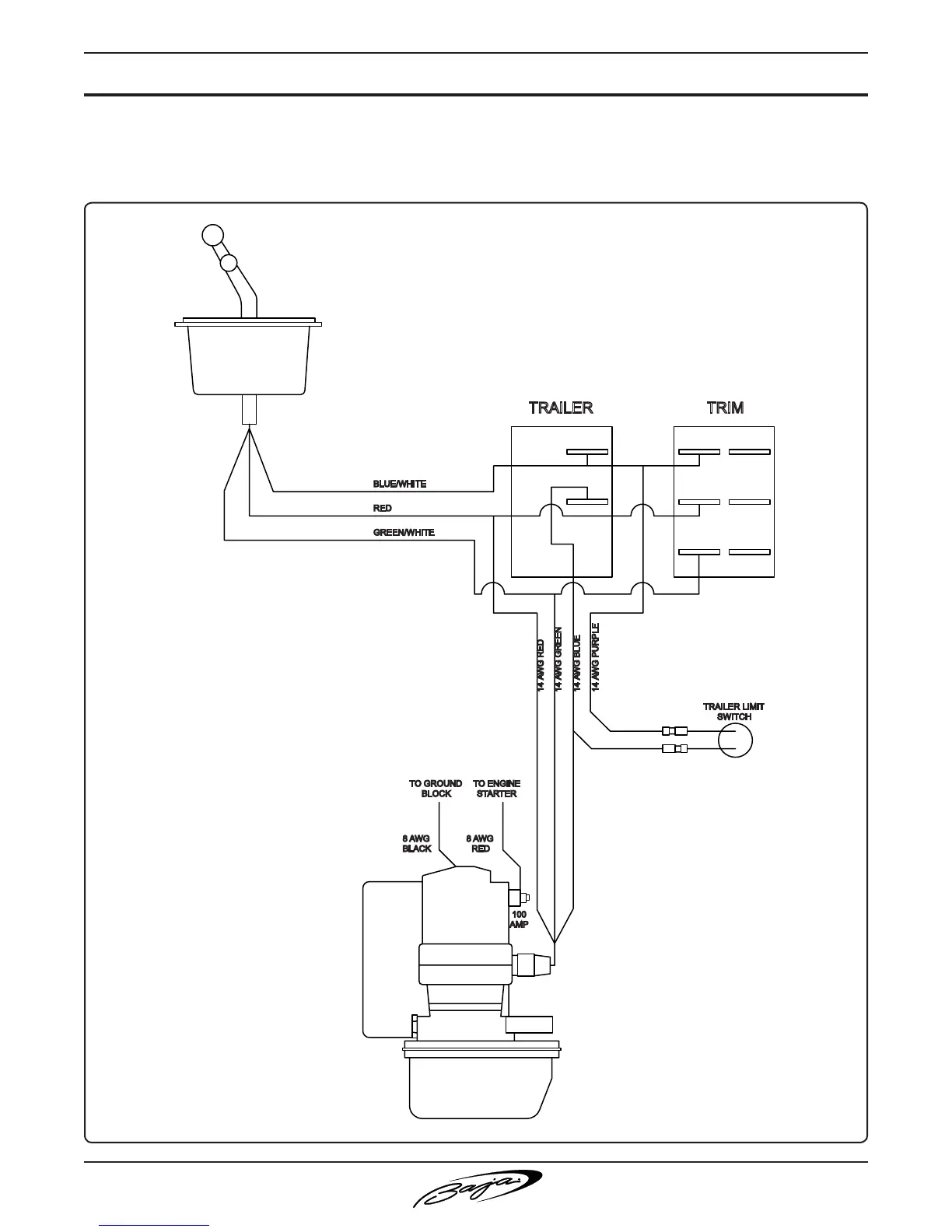

TRAILER TRIM
BLUE/WHITE
RED
GREEN/WHITE
14 AWG RED 14 AWG GREEN 14 AWG BLUE 14 AWG PURPLE
TRAILER LIMIT
SWITCH
TO GROUND
BLOCK
TO ENGINE
STARTER
8 AWG
BLACK
8 AWG
RED
100
AMP
drIve puMp
(FIg. 6.5.1)
