Baja 202 Islander - Electrical Systems

202 Islander
®
6.4
seCtIon 6 • eleCtrICal systeMs
R
Speed changes you.
TM.

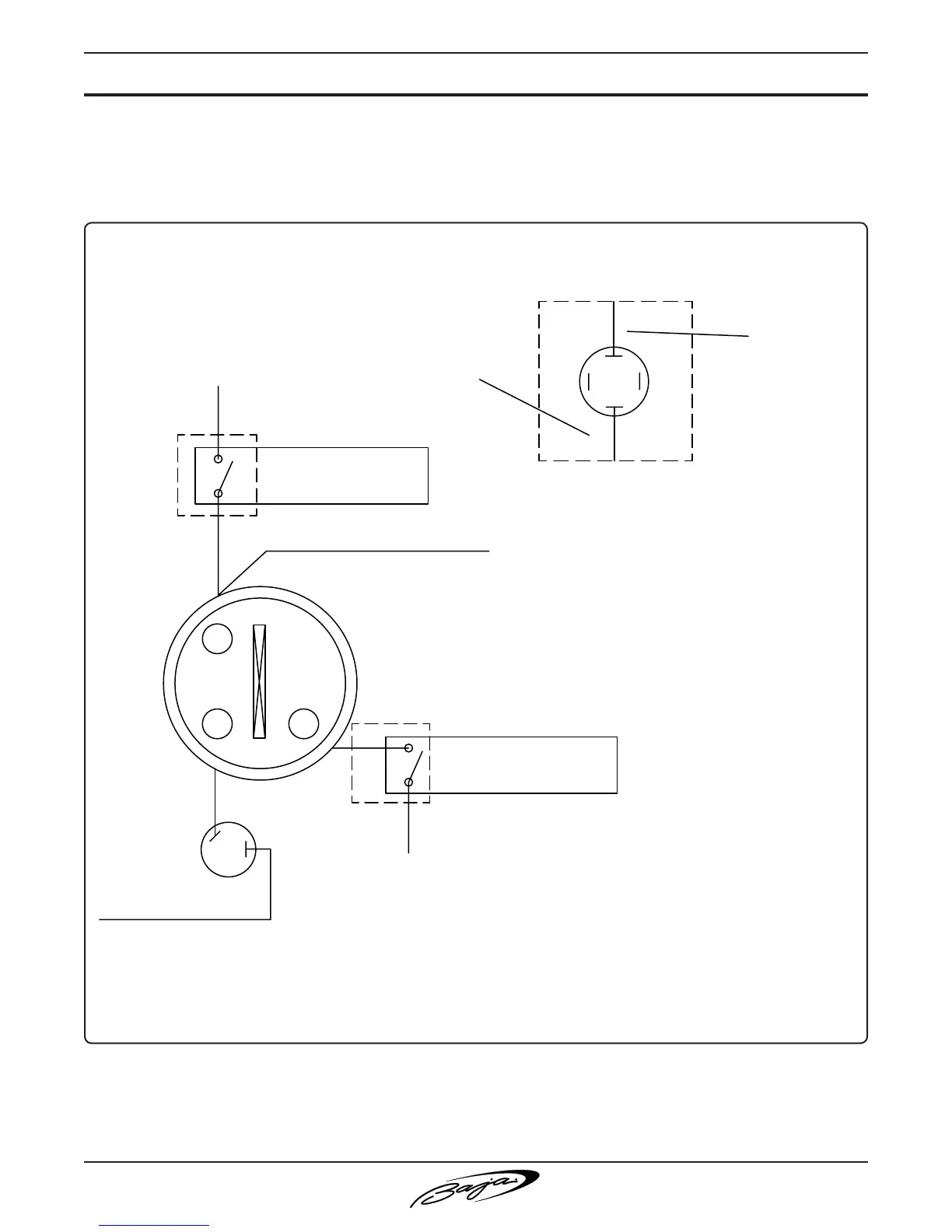

IgnItIon swItCh
(FIg. 6.4.1)
TO ENGINE
RUN CIRCUIT
16 AWG
PURPLE/BLACK
16 AWG
PURPLE/BLACK
LANYARD
STOP SWITCH
B
EXHAUST
12 AWG RED
TO EXHAUST
BREAKER
FROM IGNITION
SWITCH ( I)
16 AWG
PURPLE/BLACK
TO ENGINE
B
RUN
OFF
I
B S
START
16 AWG
YEL/RED
TO STARTER
SOLENOID
SHIFTER'S NEUTRAL
SAFETY SWITCH
20A
12 VOLT DC
FROM ENGINE
12 AWG
RED/BLACK
A
