6.4
Section 6 • electrical SyStemS
R
Speed changes you.
TM.
drive PumP

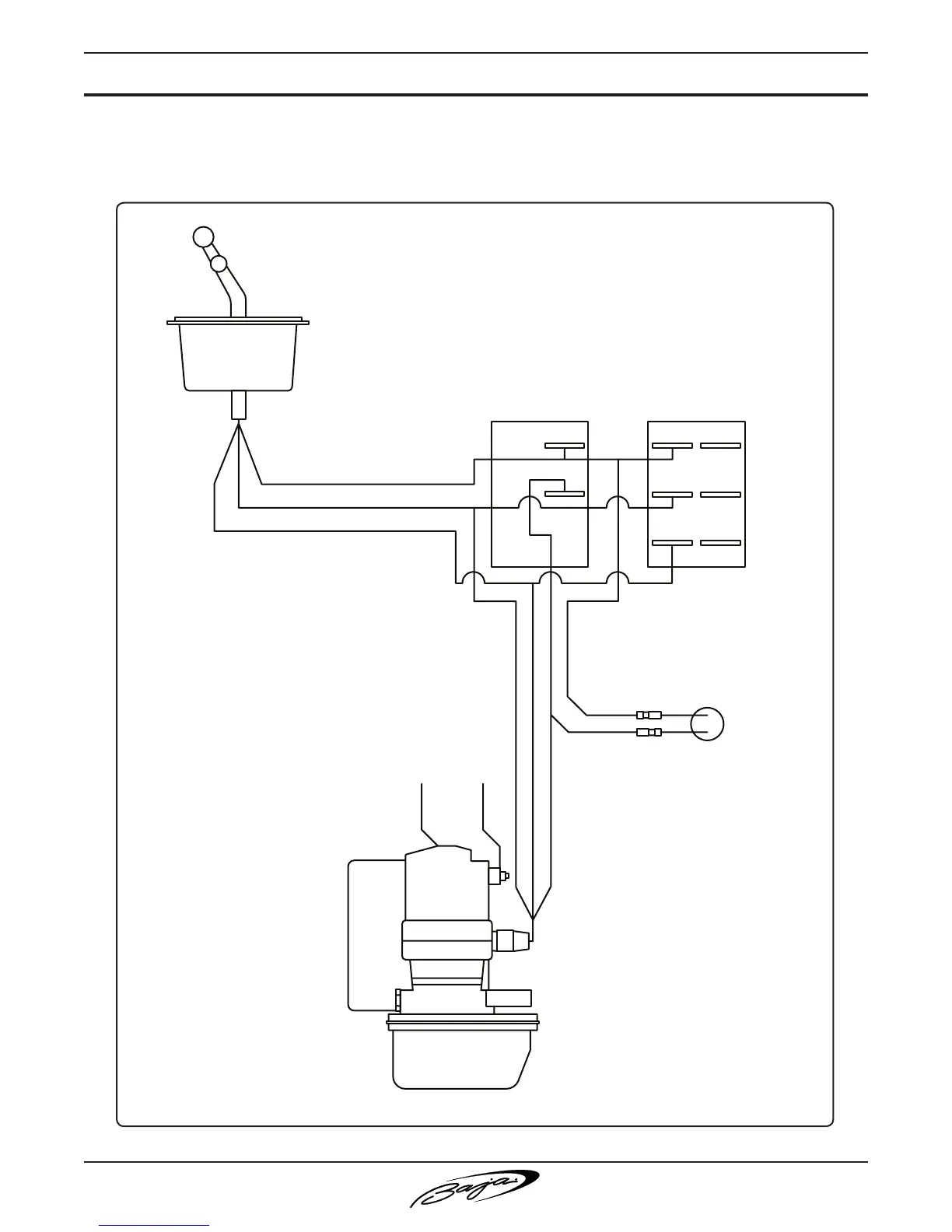

(fig. 6.4.1)
TRAILER TRIM
BLUE/WHITE
RED
GREEN/WHITE
14 AWG RED 14 AWG GREEN 14 AWG BLUE 14 AWG PURPLE
TRAILER LIMIT
SWITCH
TO GROUND
BLOCK
TO ENGINE
STARTER
8 AWG
BLACK
8 AWG
RED
100
AMP
Note: This drawing contains information proprietary to Baja
Marine Corp. Any unauthorized disclosure, use, or reproduction is
expressly prohibited, unless written permission of Baja
