Service Station Manual
Control switch LH
Control switch RH
Headlight
Condition 1 : Ignition ON, Kill switch ON/OFF, Engine OFF
Headlight Switch
Position
Headlight
Position Lamp
Effect on pressing
Pass switch
Low beam OFF ON High beam
High beam OFF ON
High beam,
No change
‘ON’

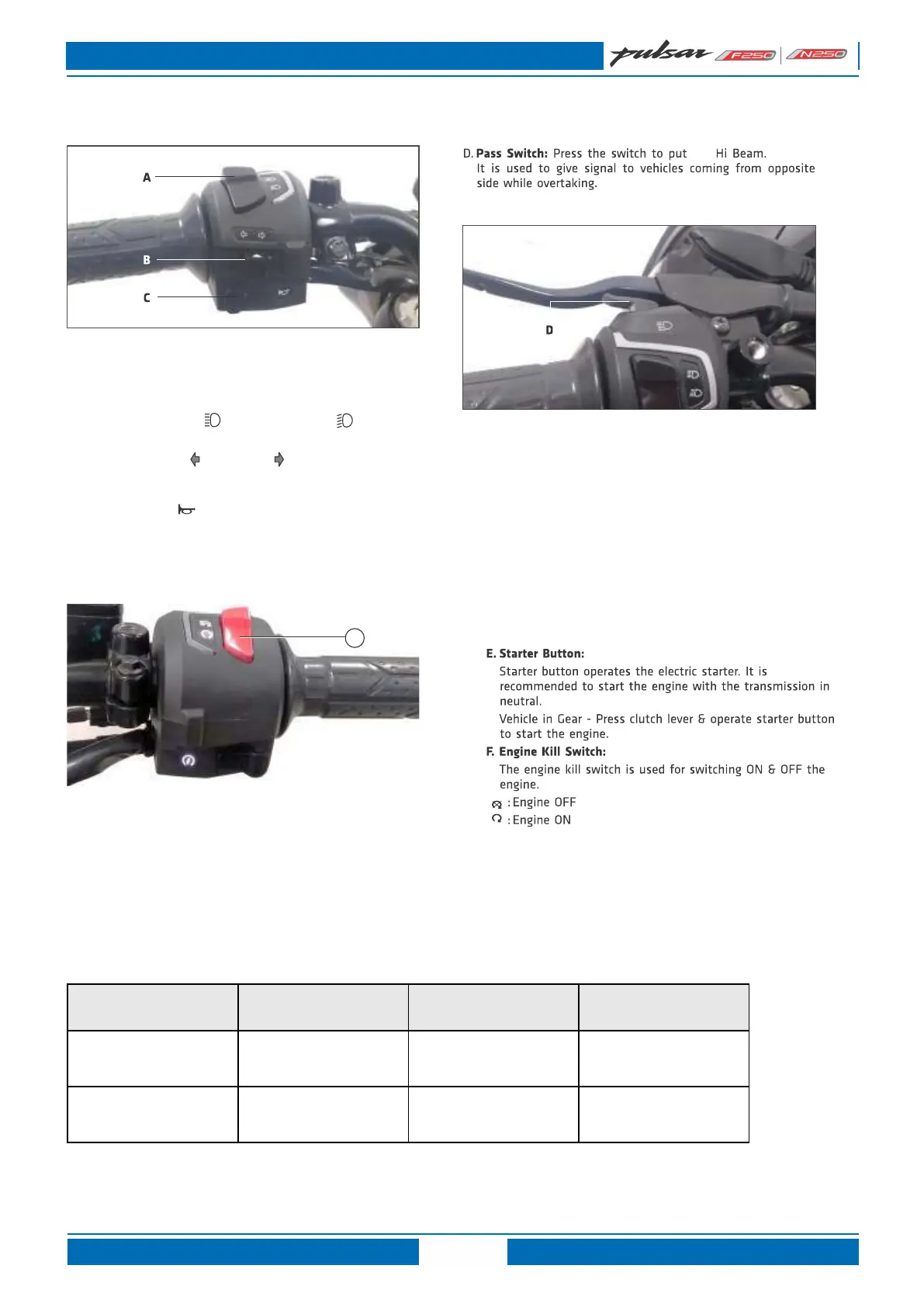

A. High/Low Beam Switch: When headlight is ON,
High or Low beam can be selected with this
switch. Hi beam indicator light located on Speedo
console will light up when high beam is selected.
: High Beam : Low beam
B. Turn Signal Switch: When the turn signal knob is
turned to Left ( ) or Right ( ) respective
indicator will start blinking, to stop blinking push
the knob in & release.
C. Horn Button ( ): Press button for sounding horn.
F
CONTROL SWITCHES / IGNITION SWITCH / HEADLIGHT /SIDE STAND INFORMATION
