BAK PLANON - Welding Parameter

BAK Thermoplastic Welding Technology Ltd 5
ADJUSTMENTS BEFORE THE WELDING
Basic adjustment:
Perform adjustments only in cold condition (Danger of burns!).
Nozzle adjustment:

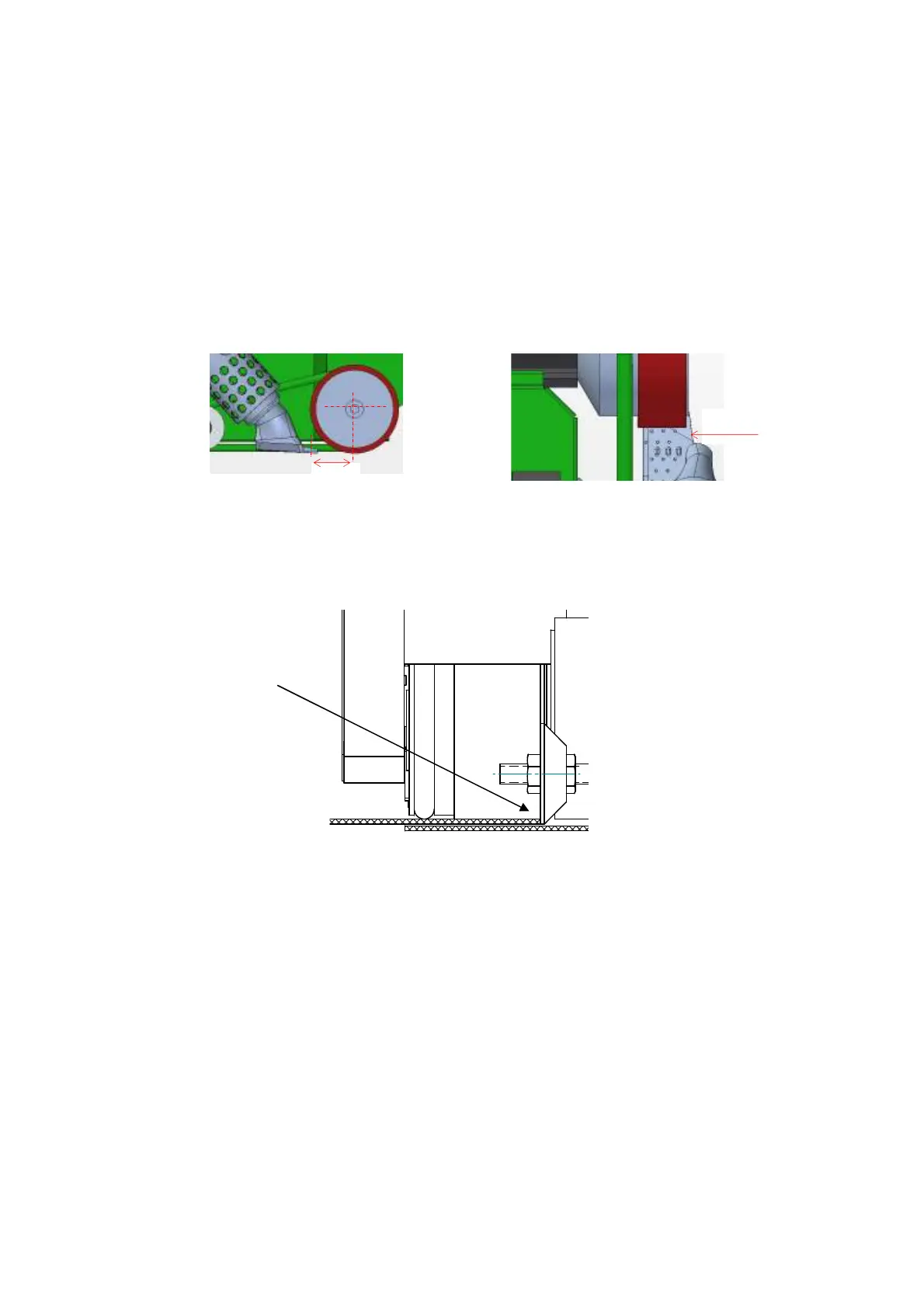

• Loosen the screws on the bracket to change adjustments on the nozzle. See below
drawings for the recommended adjustments.
Guide roller adjustment:
• Bring the welding machine into the welding position.
Outside edge of the overlap, outside edge of the pressure roller and outside edge of the guide
roller must form a line (see drawing).
WELDING PARAMETER
Attention: Before the welding make a welding test to find out the welding parameters.
Welding temperature:
Adjust the welding temperature using the potentiometer. Do not start with the welding before
the set temperature has been achieved.
Welding speed:
Adjust the welding speed using the potentiometer.
The drive starts automatically when the nozzle is swivelled in.
38
-
42
1,5mm
