Inspection and Maintenance: (continued)
 DAILY - Check power band belt and ensure tension is “taut” with no more than 1/2” of
deflection in the belt.
.
 DAILY – Lubricate the carriage drive chains (1 per side).
We recommend Zep 2000 or heavy oil.
 DAILY – Clean carriage wheel rails (1 per side) using an
air hose or brush.
 DAILY – Check the tailing or off-load conveyor for
proper tracking. If necessary, modify tracking with the
adjustment bolts that connect to the belt extender.

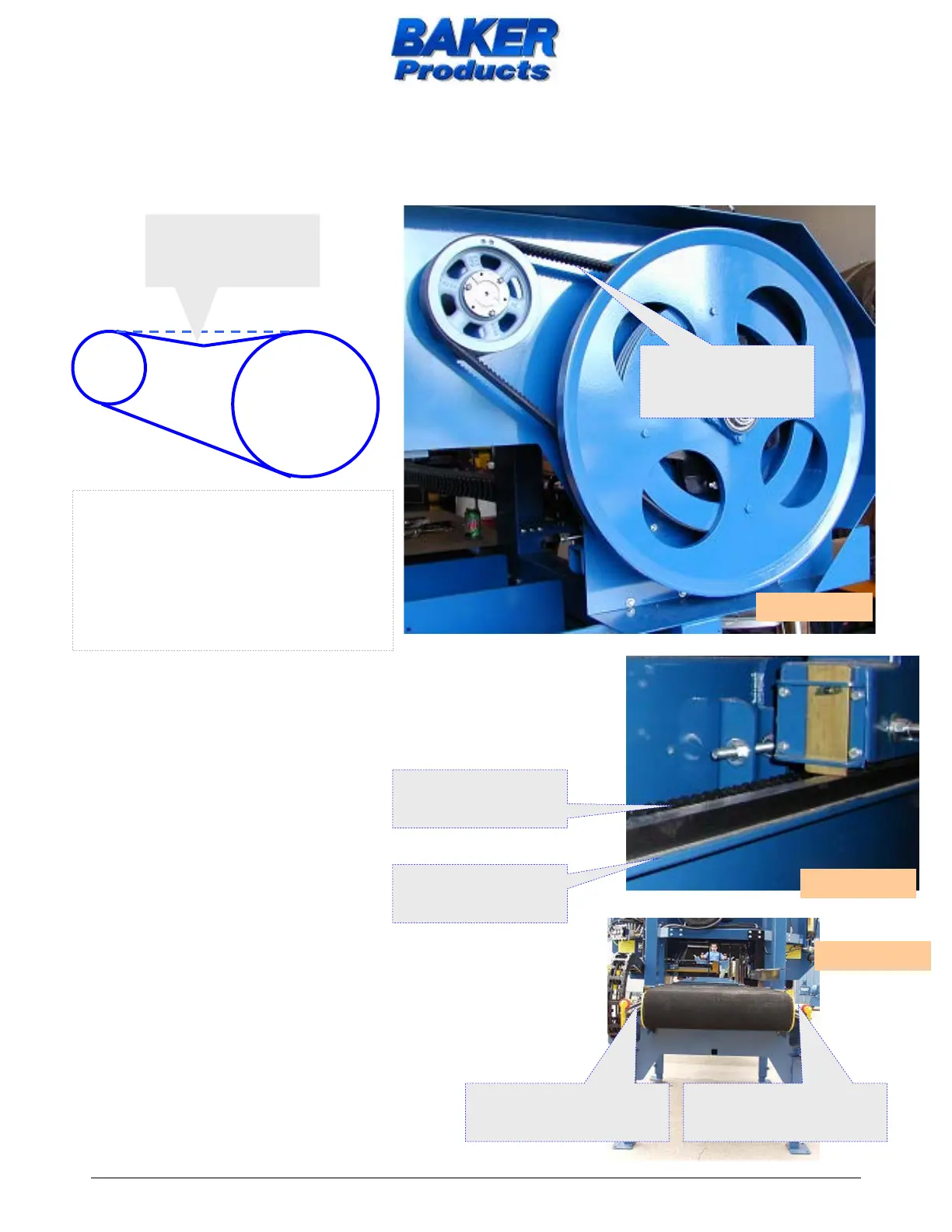

Check belt tension
here (see example of
deflection to the left)
Belt tension should
be “taut” with no more
than ½” of deflection
Figure 36
If an adjustment is required, loosen
the four (4) mounting bolts on the
50-hp electric motor and adjust belt
tension via the two (2) tensioning
bolts beside the motor. Re-tighten
the motor mounting bolts when the
proper tension has been achieved.
Carriage drive chain
(1 per side)
Carriage wheel rail
(1 per side)
Tracking adjustment bolts
on each side of conveyor
Tracking adjustment bolts
on each side of conveyor
Figure 36A
Figure 36B
