PV4-118310
PAGE 4
REQUIRED PARTS, TOOLS, & REFERENCE MATERIALS
To install the GrudgeBox Transmission Kit, the following is required:
• Factory Service Manual for your year and model motorcycle
• Common hand tools (allen wrenches, sockets, retaining ring pliers, etc.)
• Breaker bar, 1/2" drive
• Torque wrenches, 3/8” & 1/2” drive
• 1-3/16” socket, 6 pt, 1/2” drive
• Red and blue threadlocker
• A new primary cover gasket
• Dial indicator (.0005” increments)
• MAP/Propane gas or heat gun
• Main drive gear & bearing service tool
o BAKER TOOLA-07
o H-D equivalent 35316C
• Inner primary race service tool
o BAKER TOOLB-56
o H-D equivalent 34902B
• Pulley locking tool
o BAKER TOOLC-56
o H-D equivalent 46282
• Pulley nut socket
o BAKER TOOLD-07
o H-D equivalent 47910
• Countershaft bearing service tool
o BAKER TOOLE-07
• Primary drive locking tool
o H-D-48219 (Touring models)
o H-D-47977 (Softail/Dyna)
• Primary fluid, 40 oz. (Touring models) or 46 oz. (Softail/Dyna)
o BAKER recommends Spectro Heavy Duty Primary Chain Case Oil; R.HDPCO
• Transmission fluid, 28-32 oz.
o BAKER recommends Spectro Heavy Duty Platinum 6 Speed Transmission Oil;
BD-75140-32
HIGHLY RECOMMENDED ADDITIONAL PART

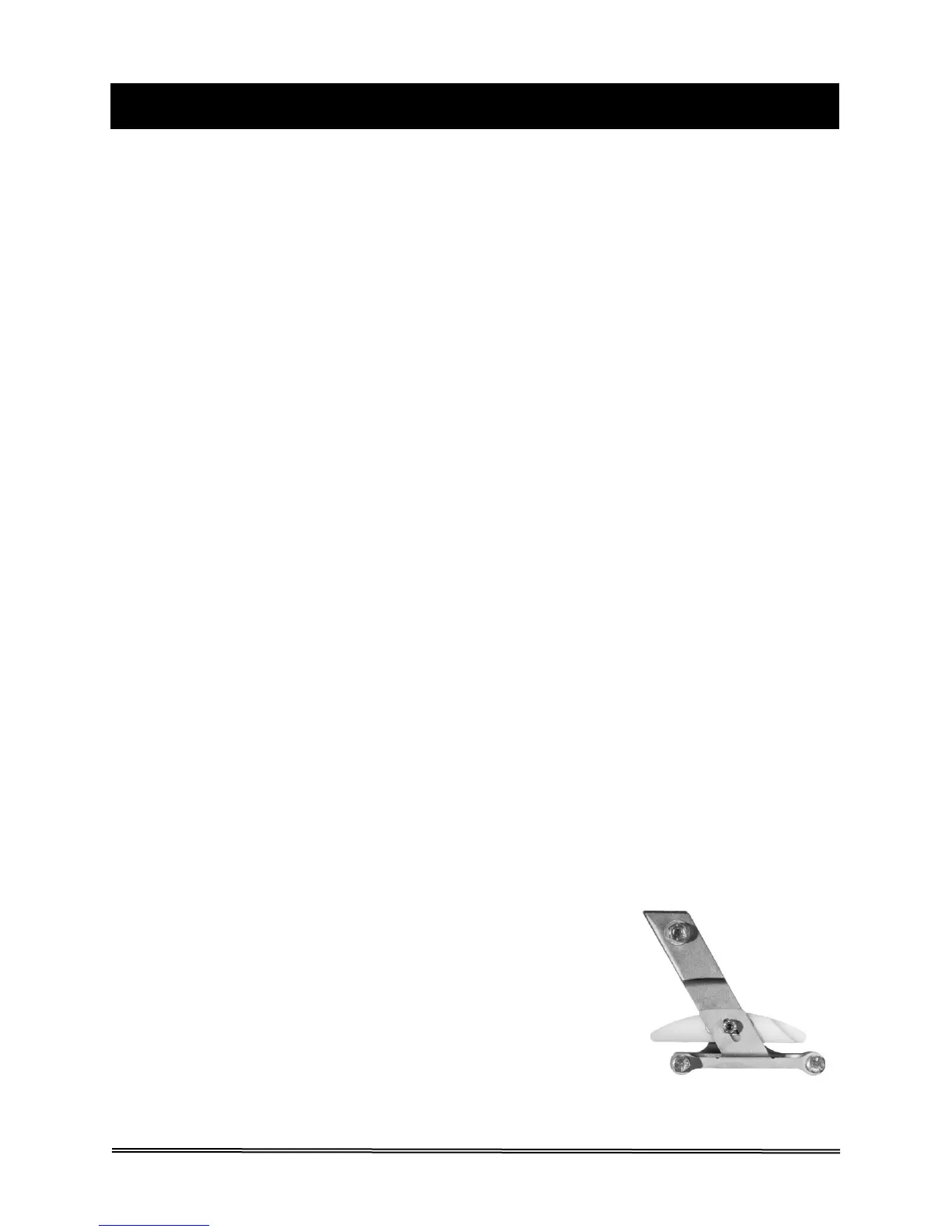

Baker Drivetrain highly recommends that the automatic chain
tensioner be replaced with a Baker Attitude Adjuster (figure 1).
Extensive testing and durability miles have proven that our
Attitude Adjuster (P/N 177-67K) puts less shear stress load on
the motor sprocket shaft and the transmission mainshaft, thereby
extending the life of the drivetrain components.
NOTE: DOES NOT FIT 2018-LATER SOFTAILS WITH MID CONTROLS
