Balboa Clim8zone - Mounting on a Platform; Platform Mounting Procedure

GROUND
PLATFORM
Follow these steps to mount the
CLIM8ZONE
TM
unit to a platform.
1 - Establish the location of the CLIM8ZONE
TM
unit on
the platform (figure 5, A). Each foot on the CLIM8ZONE
TM
unit has a mounting hole (figure 5, A). Clearly mark the
center of each mounting hole on the platform
(figure 5, A). In the next step you will drill a mounting
hole for each foot (four total).
DO NOT install the CLIM8ZONE
TM
unit indoors.
It is recommended that the CLIM8ZONE
TM
unit be
installed no more than 6.5 feet (2 meters) from
the Hot Tub.
Follow the minimum clearance requirements
(figure 3) to insure proper air flow.
2 - Using the marks from step 1 as a guide, drill one
mounting hole for each foot into the platform
(figure 5, B).
3 - Clean the mounting holes and the platform
(figure 5, C), removing all dust and debris.
4 - Move the CLIM8ZONE
TM
unit back to its final position,
making sure the mounting holes in the platform align
with the corresponding mounting holes in the feet.
5 - Place a rubber foot pad under each foot
(figure 4, C). Rubber foot pads dampen vibrations.
6 - Install the washers, bolt and nut on each foot
(figure 5, D).
7 - Tighten the nut (figure 5, E) on each foot.
Mounting hardware not included.
MOUNTING
PLATFORM
TM
INSTALLATION GUIDE 42391 Rev A
Balboa Water Group | Your Single Source Solution
13
12
Platform minimum
load capacity:
300lbs (136 kg)
B C D
E
Platform
The platform should be
higher than the highest
level of snow fall.
A

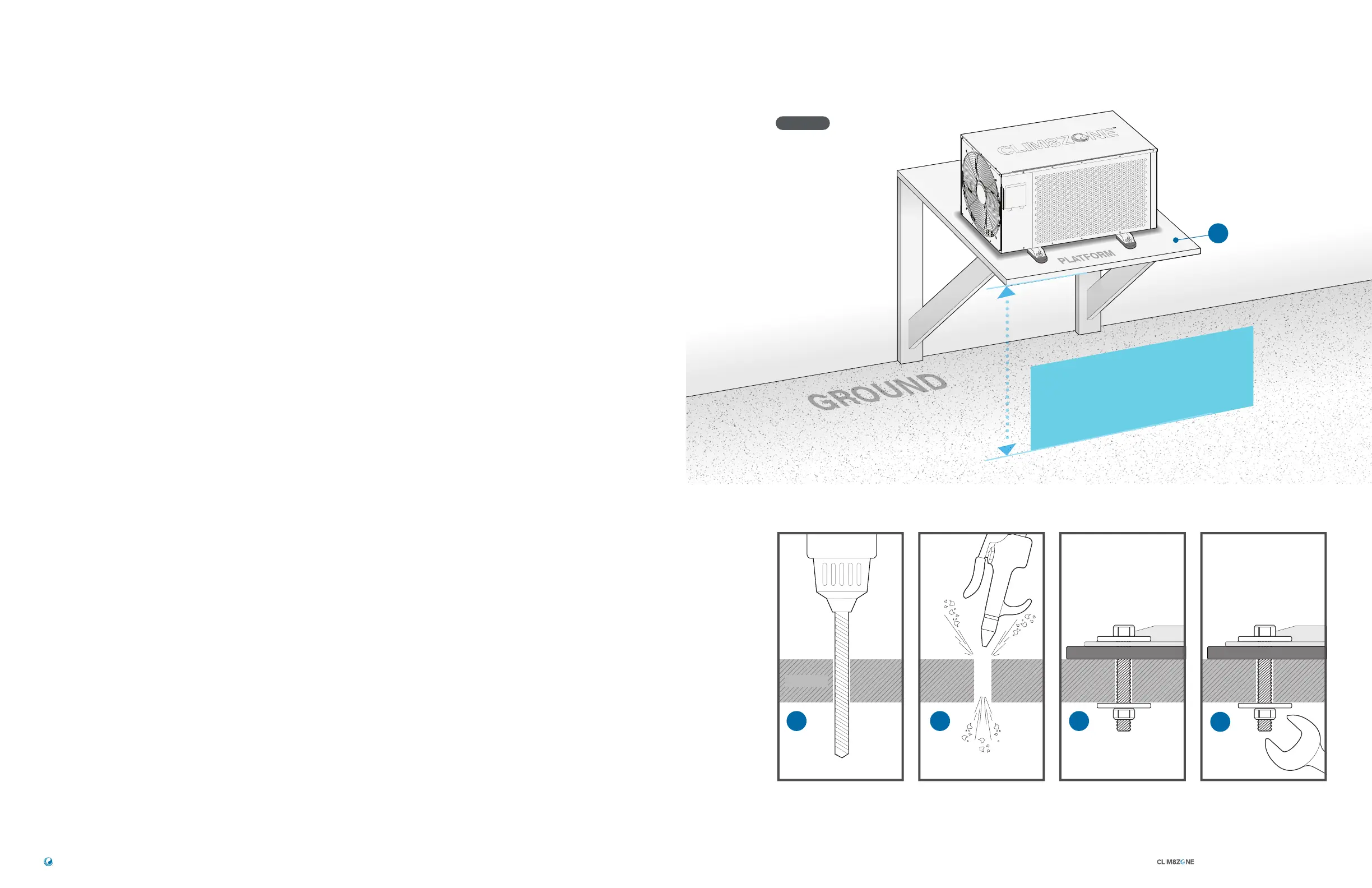

Figure 5
