Balex BXT 3210 E - Assembly Instructions; Assembly Preparation; Cutting Height Adjustment

19
ENGLISH EN
3. Assembly
Preparation

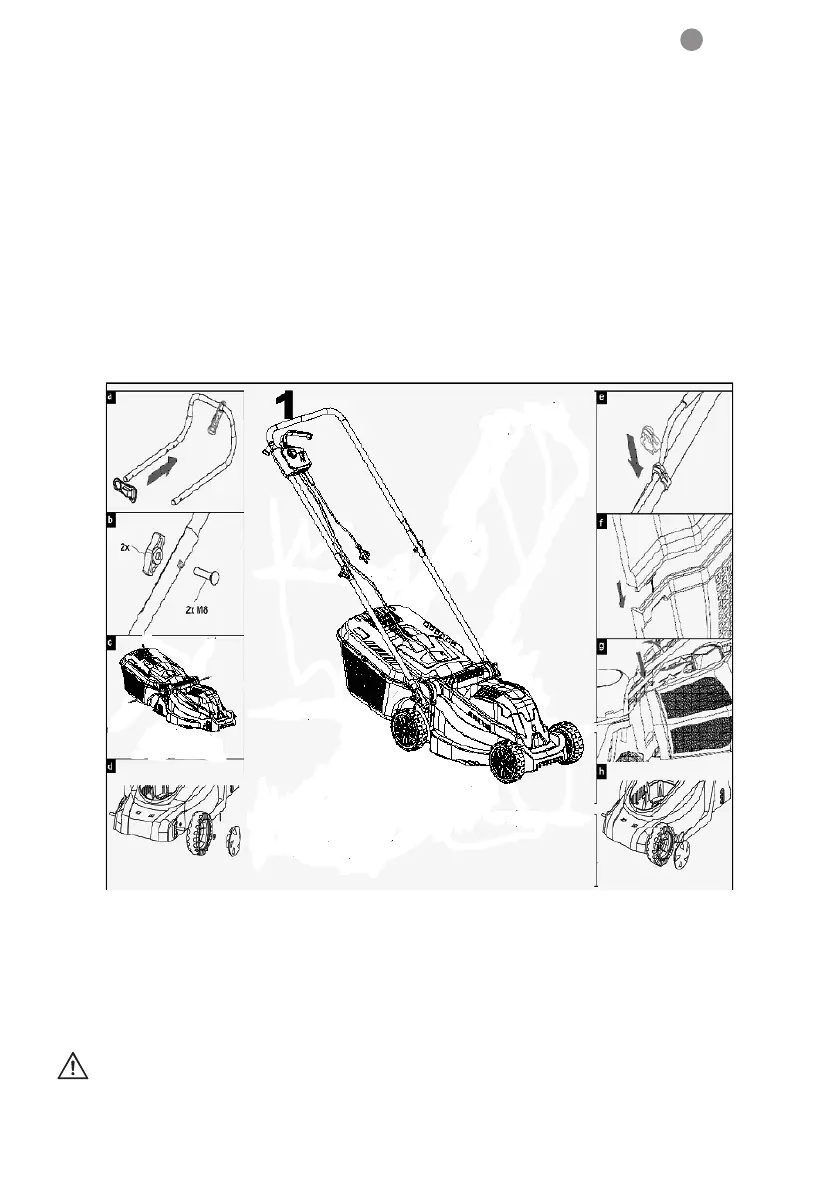

1. Put the cable hook on upper handle (Fig. 1a).
2. Connect upper and lower handles with supplied screws and knobs (Fig. 1b).
3. Insert the screws into the mower body and tighten the screws (Fig. 1c).
4. Fit each wheels over the axles, secure in place with the “R” pins and press the wheel
covers into place (Fig. 1d/1e).
5. Insert the screws into the upper grass collection and frame handle (Fig. 1h).
6. Fix the cable holders (Fig. 1f).
7. Assemble the two halves of the grass collection box and x them together (Fig. 1g).
8. Lift the ap and place the grass box over the lugs (Fig. 1h).
Cutting height adjustment
To obtain the desired cutting height, the front and rear axles are repositioned on the underside
of the mower housing.
WARNING! Disconect the mower from the power suply and ensure the blade has
stopped coasting before adjusting the height.
