Ball HD Series - Page 71

•
HD SERIES
SM1047

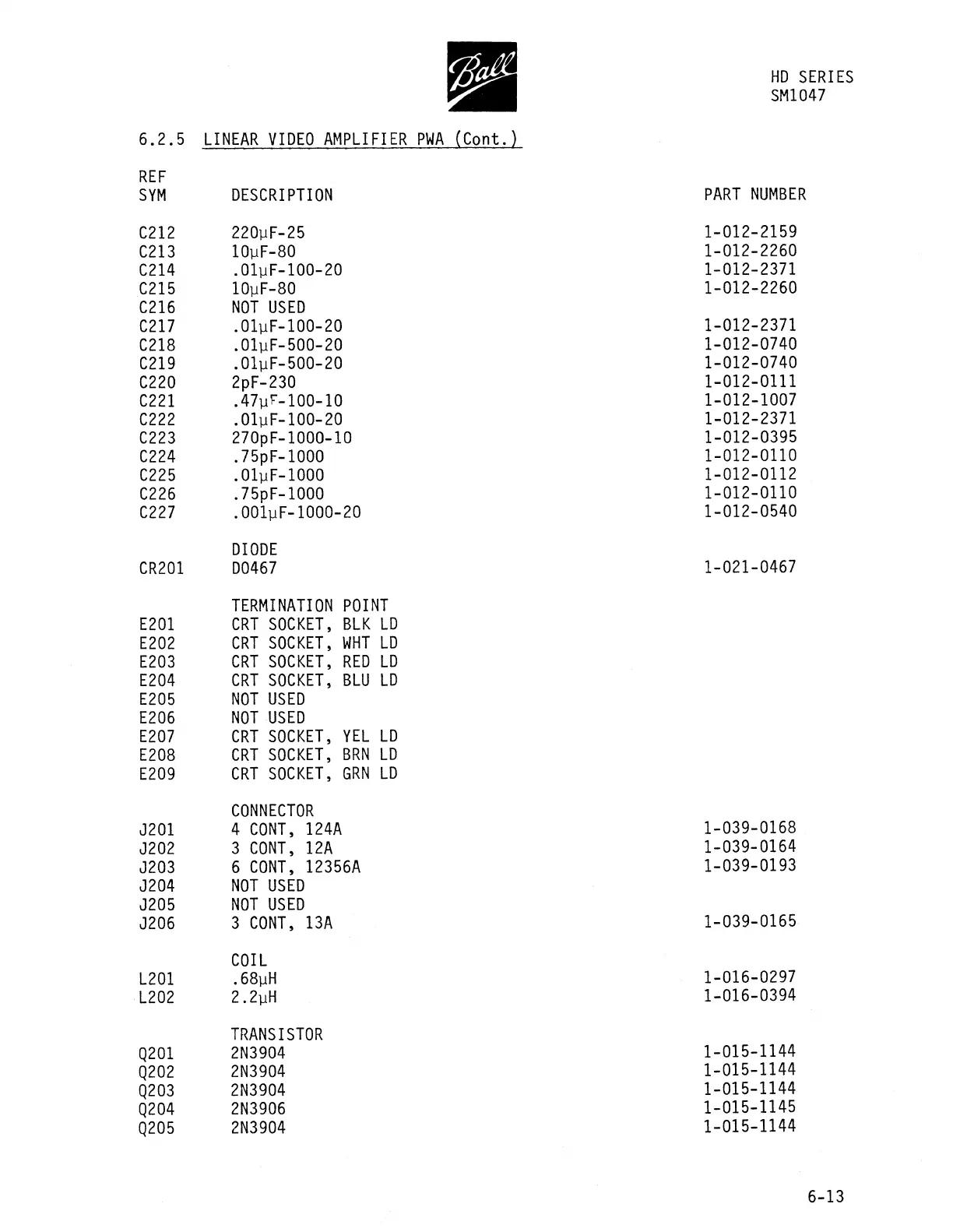

6.2.5 LINEAR VIDEO AMPLIFIER PWA
(Cont.)
REF
SYM
DESCRIPTION
PART NUMBER
C212
220µF-25
1-012-2159
C213
lOµF-80
1-012-2260
C214
.OlµF-100-20
1-012-2371
C215
lOµF-80
1-012-2260
C216
NOT USED
C217 .OlµF-100-20
1-012-2371
C218
.OlµF-500-20
1-012-0740
C219
.OlµF-500-20
1-012-0740
C220 2pF-230
1-012-0111
C221 .47µF-100-10
1-012-1007
C222 .OlµF-100-20
1-012-2371
C223 270pF-1000-10
1-012-0395
C224 . 75pF-1000
1-012-0110
C225 .OlµF-1000
1-012-0112
C226 .75pF-1000
1-012-0110
C227 .OOlµF-1000-20
1-012-0540
DIODE
CR201 D0467
1-021-0467
TERMINATION POINT
E201
CRT SOCKET, BLK LD
E202
CRT SOCKET, WHT LD
E203
CRT SOCKET, RED LD
E204
CRT SOCKET, BLU LD
E205
NOT USED
E206
NOT USED
E207
CRT SOCKET,
YEL LD
E208
CRT SOCKET, BRN LD
E209
CRT SOCKET, GRN LD
CONNECTOR
J201
4 CONT, 124A
1-039-0168
J202
3 CONT, 12A
1-039-0164
J203
6 CONT, 12356A
1-039-0193
J204
NOT USED
J205
NOT USED
J206
3 CONT, 13A
1-039-0165
COIL
L201
.68µH
1-016-0297
L202
2.2µH
1-016-0394
TRANSISTOR
Q201
2N3904
1-015-1144
Q202
2N3904
1-015-1144
Q203
2N3904
1-015-1144
Q204
2N3906
1-015-1145
Q205
2N3904
1-015-1144
6-13
