HD SERlES
•
SM1047

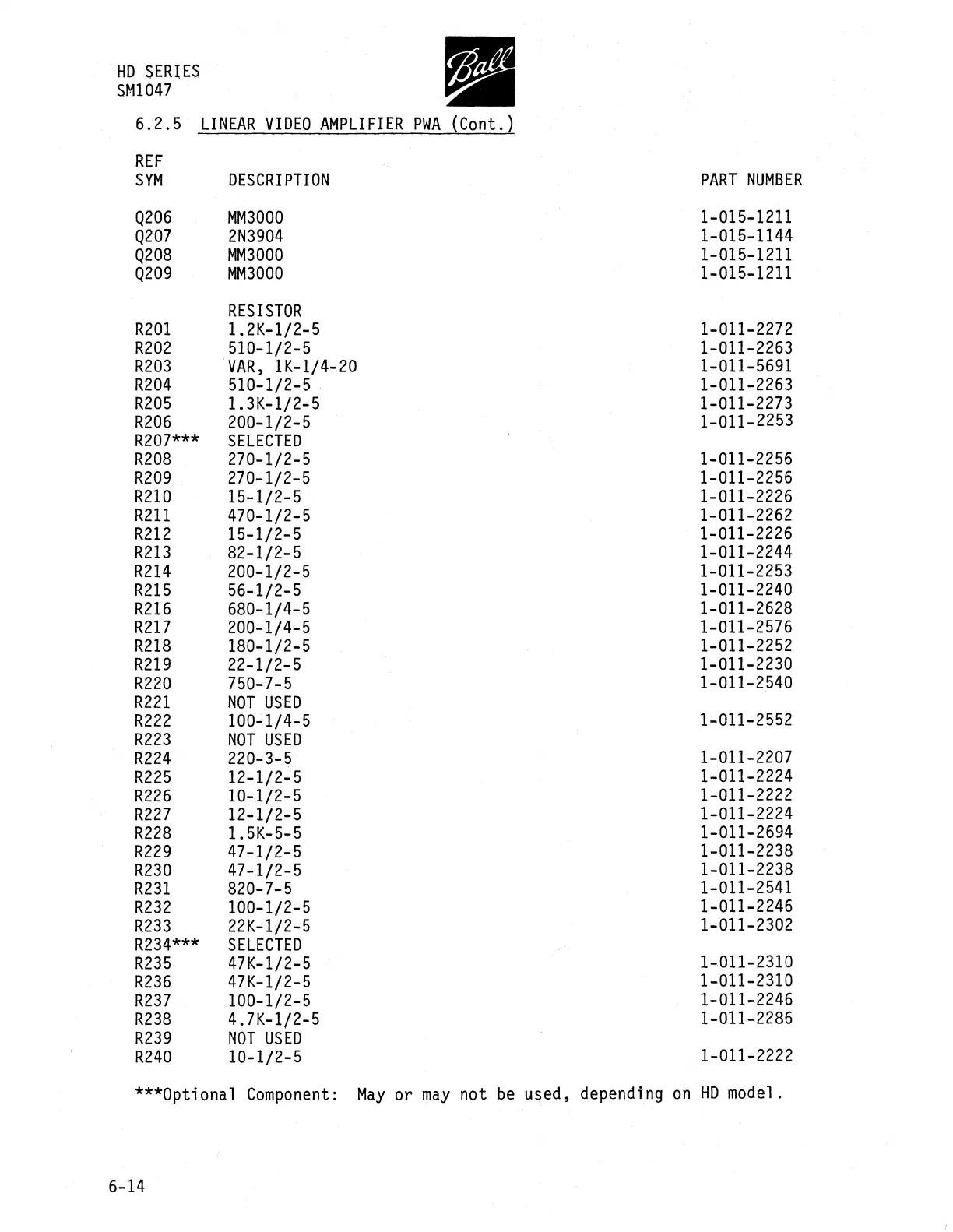

6.2.5 LINEAR VIDEO AMPLIFIER PWA (Cont.)
REF
SYM DESCRIPTION
PART NUMBER
Q206 MM3000 1-015-1211
Q207 2N3904 1-015-1144
Q208 MM3000
1-015-1211
Q209
MM3000 1-015-1211
RESISTOR
R201
1. 2K-1/2-5
1-011-2272
R202
510-1/2-5
1-011-2263
R203
VAR, lK-1/4-20
1-011-5691
R204
510-1/2-5
1-011-2263
R205
1.3K-1/2-5
1-011-2273
R206
200-1/2-5
1-011-2253
R207*** SELECTED
R208
270-1/2-5
1-011-2256
R209
270-1/2-5
1-011-2256
R210
15-1/2-5
1-011-2226
R211
470-1/2-5
1-011-2262
R212
15-1/2-5
1-011-2226
R213
82-1/2-5
1-011-2244
R214
200-1/2-5
1-011-2253
R215
56-1/2-5
1-011-2240
R216
680-1/4-5
1-011-2628
R217
200-1/4-5
1-011-2576
R218
180-1/2-5
1-011-2252
R219
22-1/2-5
1-011-2230
R220
750-7-5
1-011-2540
R221
NOT USED
R222
100-1/4-5
1-011-2552
R223
NOT USED
R224
220-3-5
1-011-2207
R225
12-1/2-5
1-011-2224
R226
10-1/2-5
1-011-2222
R227
12-1/2-5
1-011-2224
R228
1. 5K-5-5
1-011-2694
R229
47-1/2-5
1-011-2238
R230
47-1/2-5
1-011-2238
R231
820-7-5
1-011-2541
R232
100-1/2-5
1-011-2246
R233
22K-1/2-5
1-011-2302
R234*** SELECTED
R235
47K-l/2-5
1-011-2310
R236
47K-1/2-5
1-011-2310
R237
100-1/2-5
1-011-2246
R238
4. 7K-l/2-5
1-011-2286
R239 NOT USED
R240
10-1/2-5
1-011-2222
***Optional Component: May or may not be used, depending on HD model.
6-14
