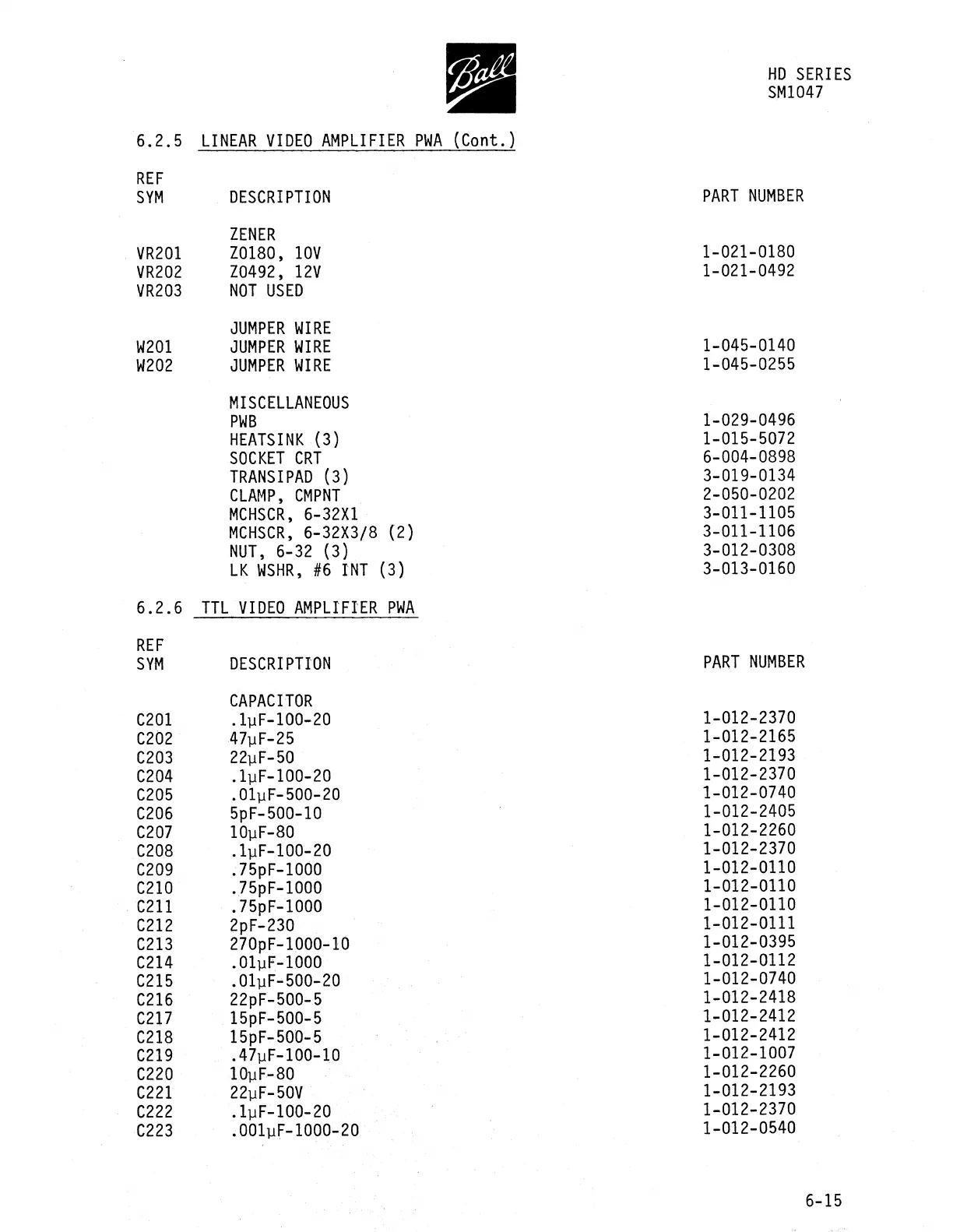

HO SERIES
-
SM1047
6.2.5
LINEAR VIDEO AMPLIFIER PWA
(Cont.)
REF
SYM
DESCRIPTION
PART NUMBER
ZENER
VR201
Z0180, lOV
1-021-0180
VR202
Z0492, 12V
1-021-0492
VR203 NOT USED
JUMPER WIRE
W201
JUMPER WIRE
1-045-0140
W202 JUMPER WIRE
1-045-0255
MISCELLANEOUS
PWB
1-029-0496
HEATSINK (3)
1-015-5072
SOCKET CRT
6-004-0898
TRANSIPAD (3)
3-019-0134
CLAMP, CMPNT
2-050-0202
MCHSCR, 6-32Xl
3-011-1105
MCHSCR, 6-32X3/8 (2)
3-011-1106
NUT, 6-32 (3)
3-012-0308
LK WSHR, #6 INT (3)
3-013-0160
6.2.6
TTL VIDEO AMPLIFIER PWA
REF
SYM
DESCRIPTION
PART NUMBER
CAPACITOR
C201 .lµF-100-20
1-012-2370
C202
47µF-25
1-012-2165
C203
22µF-50
1-012-2193
C204 . lµF-100-20
1-012-2370
C205 .OlµF-500-20
1-012-0740
C206 5pF-500-10
1-012-2405
C207 lOµF-80
1-012-2260
C208
.lµF-100-20
1-012-2370
C209 .75pF-1000
1-012-0110
C210 .75pF-1000
1-012-0110
C211 .75pF-lOOO
1-012-0110
C212 2pF-230
1-012-0111
C213
270pF-l000-10
1-012-0395
C214 .OlµF-1000
1-012-0112
C215
.OlµF-500-20
1-012-0740
C216 22pF-500-5
1-012-2418
C217 15pF-500-5
1-012-2412
C218 15pF-500-5
1-012-2412
C219
.47µF-100-10
1-012-1007
C220
lOµF-80
1-012-2260
C221
22µF-50V
1-012-2193
C222 . lµF-100-20
1-012-2370
C223
.OOlµF-1000-20
1-012-0540
6-15
