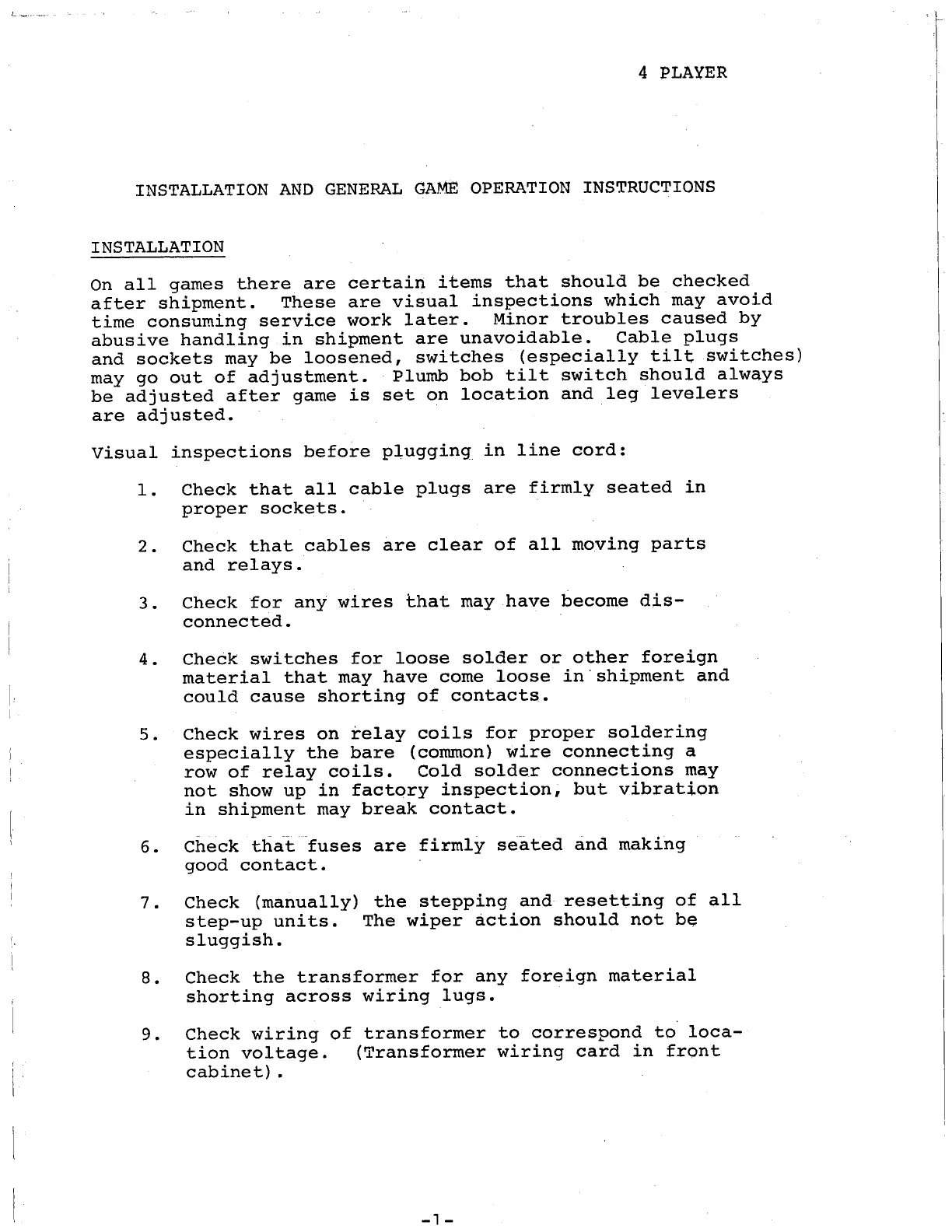

4 PLA¥ER
INSTALLATION AND GENERAL GAME OPERATION INSTRUCTIONS
INSTALLATION
On all games there are certain items that should be checked
after shipment. These are visual inspections which may avoid
time consuming service work later. Minor troubles caused by
abusive handling in shipment are unavoidable. Cable plugs
and sockets may be loosened, switches (especially tilt switches)
may go out of adjustment. Plumb bob tilt switch should always
be adjusted after game is set on location and leg levelers
are adjusted.
Visual inspections before plugging in line cord:
1. Check that all cable plugs are firmly seated in
proper sockets.
2. Check that cables are clear of all moving parts
and relays.
3. Check
for any wires that may have become dis-
connected.
I
i
4 . Check switches for loose solder or other foreign
material that may have come loose in' shipment and
could cause shorting of contacts.
5. Check wires on relay coils for proper soldering
especially the bare (common) wire connecting a
row of relay coils. Cold solder connections may
not show up in factory inspection, but vibration
in shipment may break contact.
- ..
6. Check that fuses are firmly seated and making
good contact.
7. Check (manually) the stepping and resetting of all
step-up units. The wiper áction should not be
sluggish.
8. Check the transformer for any foreign material
shorting across wiring lugs.
r
I .
I
9. Check wiring of transformer to correspond to loca-
tion voltage. (Transformer wiring card in front
cabinet) .
-1 -
