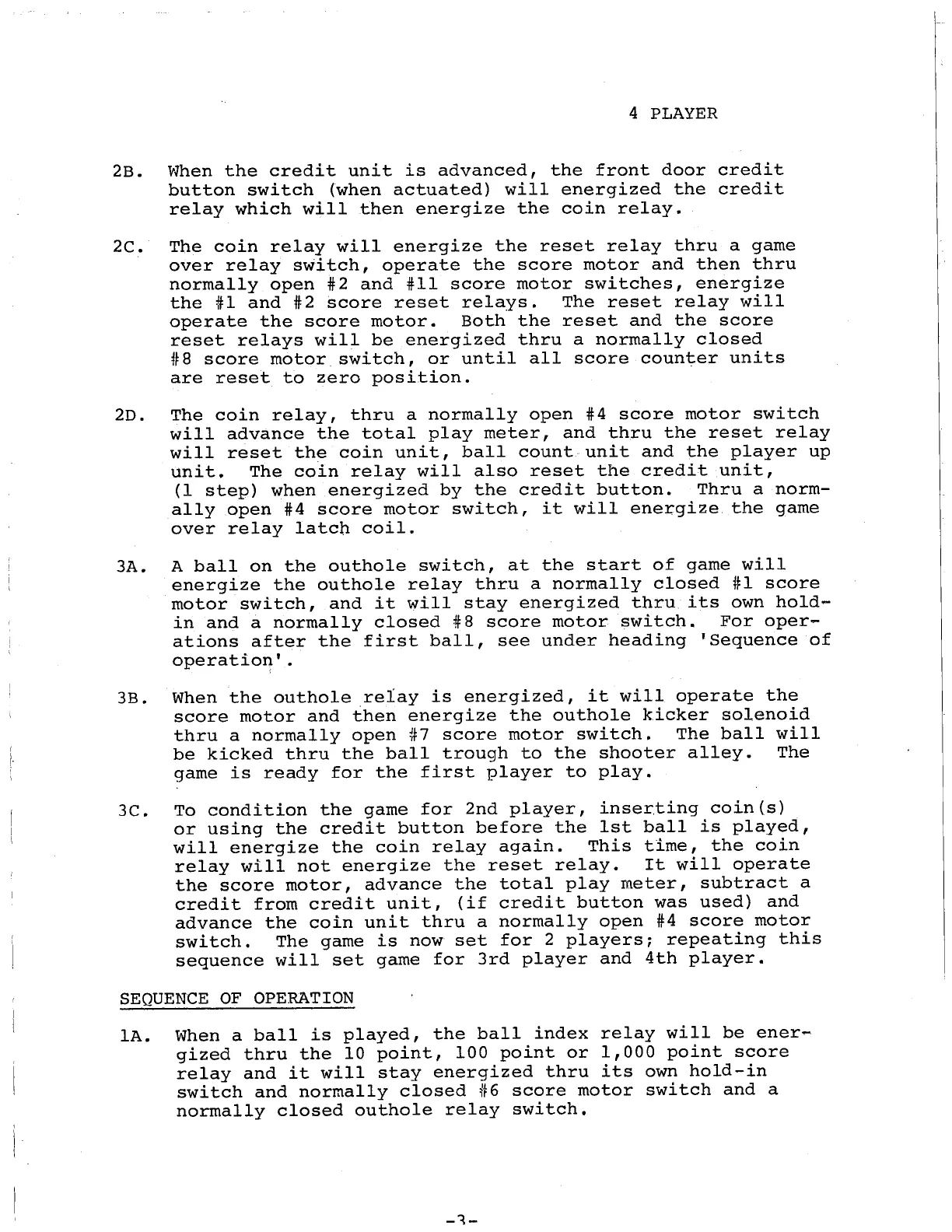

4 PLAYER
2B. When the credit unit is advanced, the front door credit
button switch (when actuated) will energized the credit
relay which will then energize the coin relay.
2C. The coin relay will energize the reset relay thru a game
over relay swl tch, operate the score motor and then thru
normally open #2 and #ll score motor switches, energize
the #1 and #2 score reset relays. The reset relay will
operate the score motor. Both the reset and the score
reset relays will be energized thru a normally closed
~~ 8 score motor switch, or until all score counter units
are reset to zero position.
2D. The coin relay, thru a normally open #4 score motor switch
will advance the total play meter, and thru the reset relay
will reset the coin unit, ball count unit and the player up
unit. The coin relay will also reset the credituni t,
(1 step) when energized by the credit button. Thru a norm-
ally open #4 score motor switch, it will energize the game
over relay latch coil.
3A. A ball on the outhole switch, at the start of game will
energize the outhole relay thru a normally closed #1 score
motor switch, and it will stay energized thru its own hold-
in and a normally closed # 8 score motor switch. For oper-
ations after the first ball, see under heading f Sequence of
operation f .
3B. When the outhole relay is energized, it will operate the
score motor and ihen energize the outhole kicker solenoid
thru a normally open #7 score motor switch. The ball will
be kicked thru the ball trough to the shooter alley. The
game is ready for the first player to play.
3C. To condition the game for 2nd player, inserting coin (s)
or using the credit button before the 1st ball is played,
will energize the coin relay again. This time, the coin
relay will not energize the reset relay. It will operate
the score motor, advance the total play meter, subtract a
credit from credit unit, (if credit button was used) and
advance the coin unit thru a normally open #4 score motor
swi tch. The game is now set for 2 players; repeating this
sequence will set game for 3rd player and 4th player.
SEQUENCE OF OPERATION
lA. When a ball is played, the ball index relay will be ener-
gized thru the 10 point, lOa point or 1, 000 point score
relay and it will stay energized thru its own hold-in
switch and normally closed #6 score motor switch and a
normally closed outhole relay switch.
-1-
