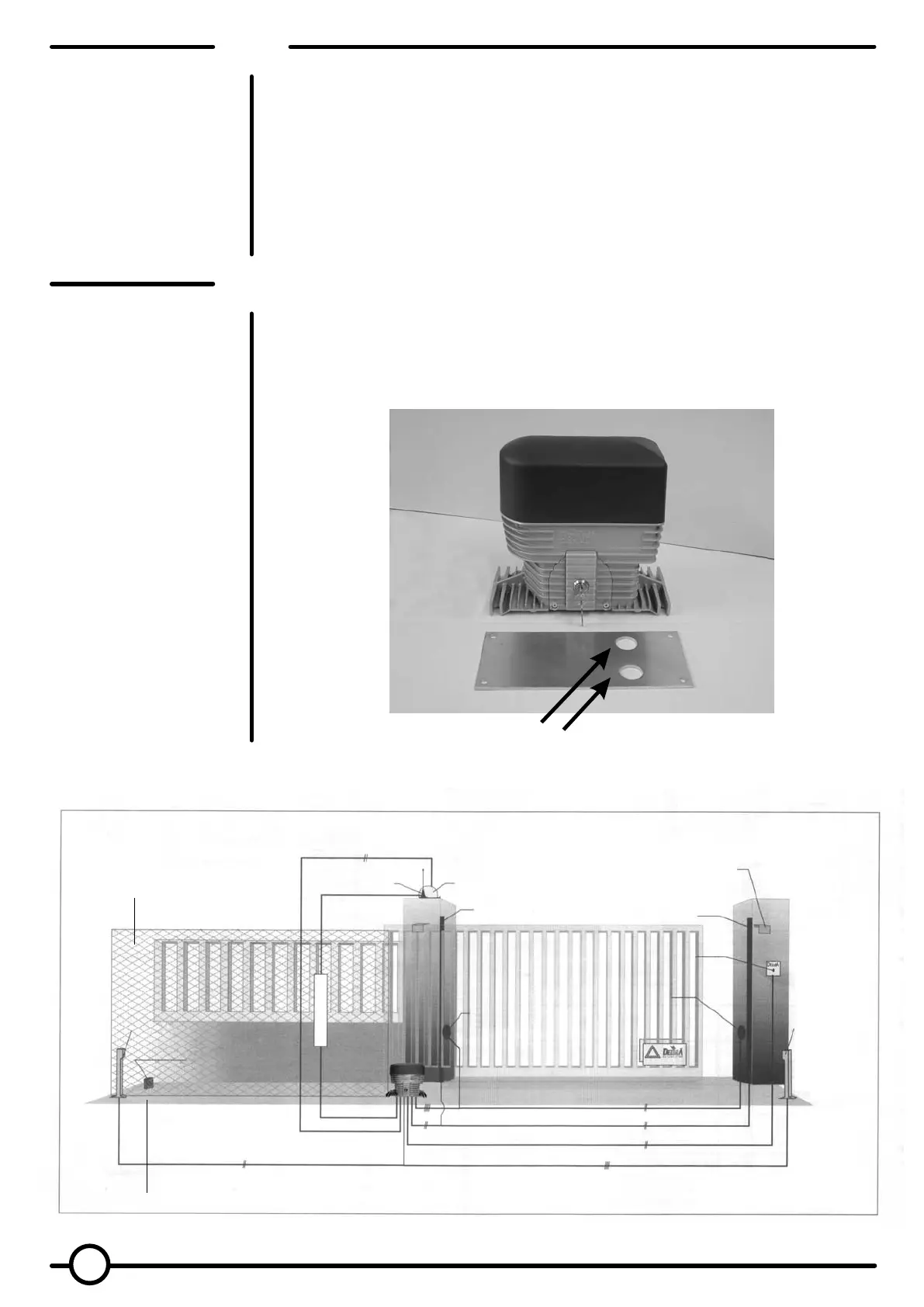

Electrical plant
Cables needed for the installation:
3 x 1,5 for the 230V main power supply
2 x 1,5 + 1 x RG58 for flashing light and antenna
2 x 1 for the photocell transmitter
4 x 1 for the photocell receiver
3 x 1 for the keyswitch
2 x 1 for the mechanical safety edge
If using the fixing plate the plastic pipes must pass trough the two
holes and the plate must be positioned as shown in figure 4.
Fig. 4Pipes passage
6
Swing
stopper
Swing
stopper
Mechanical
safety edge
Mechanical
safety edge
Keyswitch
External
TX photocell
Protection net
Area to be protected with safety devices
Shielded cable
Flashing lightAntenna
Motor
Internal TX
photocell
External
RX photocell
Internal RX
photocell
