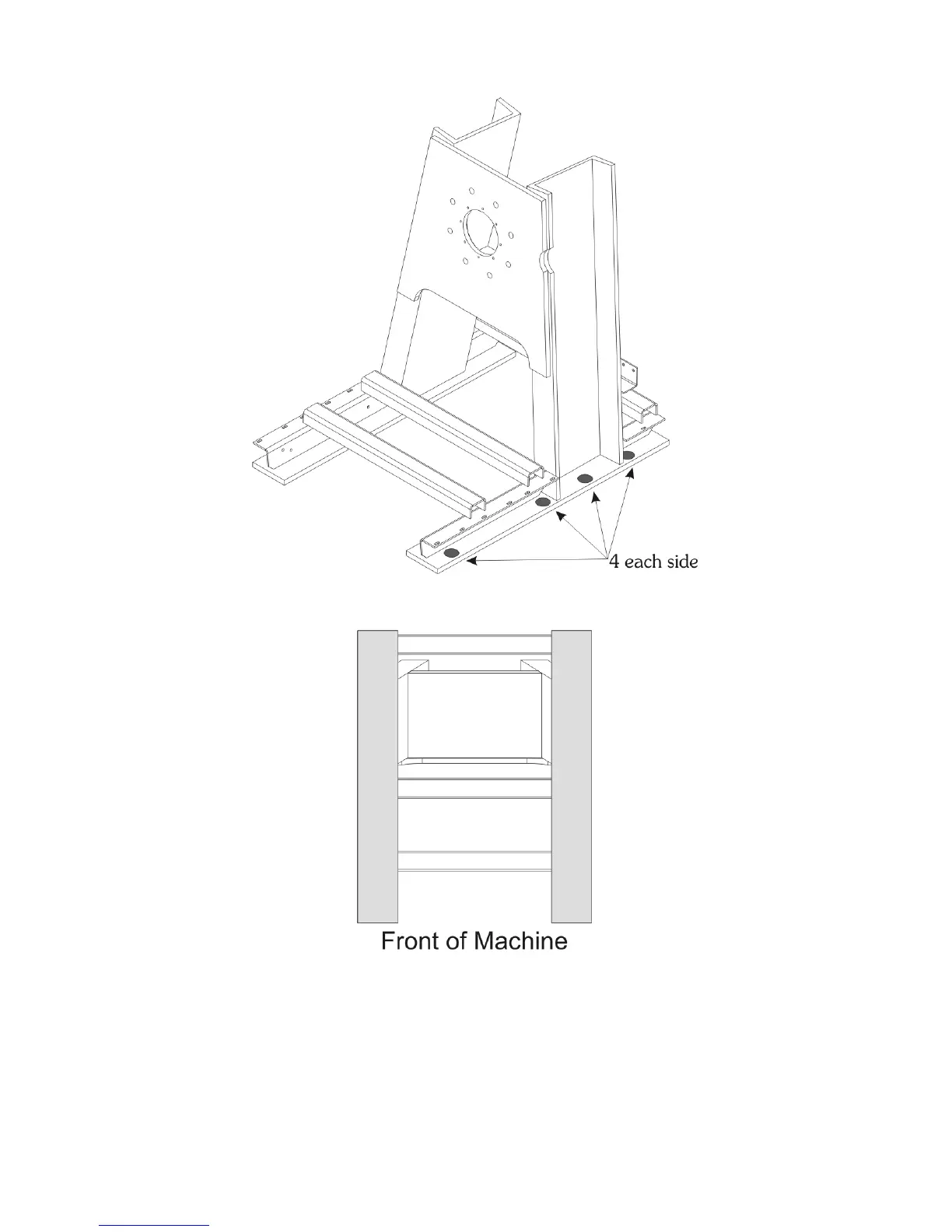

Figure 4.3: Foundation Bolt Location
Figure 4.4: Typical Grouting Pattern
4.4.1 Machine Foundation Construction
Place the machine adjacent to the foundation. Do not attempt to move it by pushing on the sides.
18
