4.5.4 HE-85 Mounting Bolt Installation
The HE-85 uses 5/8-11 x 8”’ bolts. Embed the bolts in 3500 psi reinforced concrete with a minimum
of 9”’ thickness. The threaded end of the bolt should extend 2 inches from the surface of the
floor. Use the outboard bolt holes for standard installation, the inboard bolt holes for side by side
installations, or installations near a wall or other object that would prevent access to the outboard
holes. Refer to figure 4.9 on page 23.

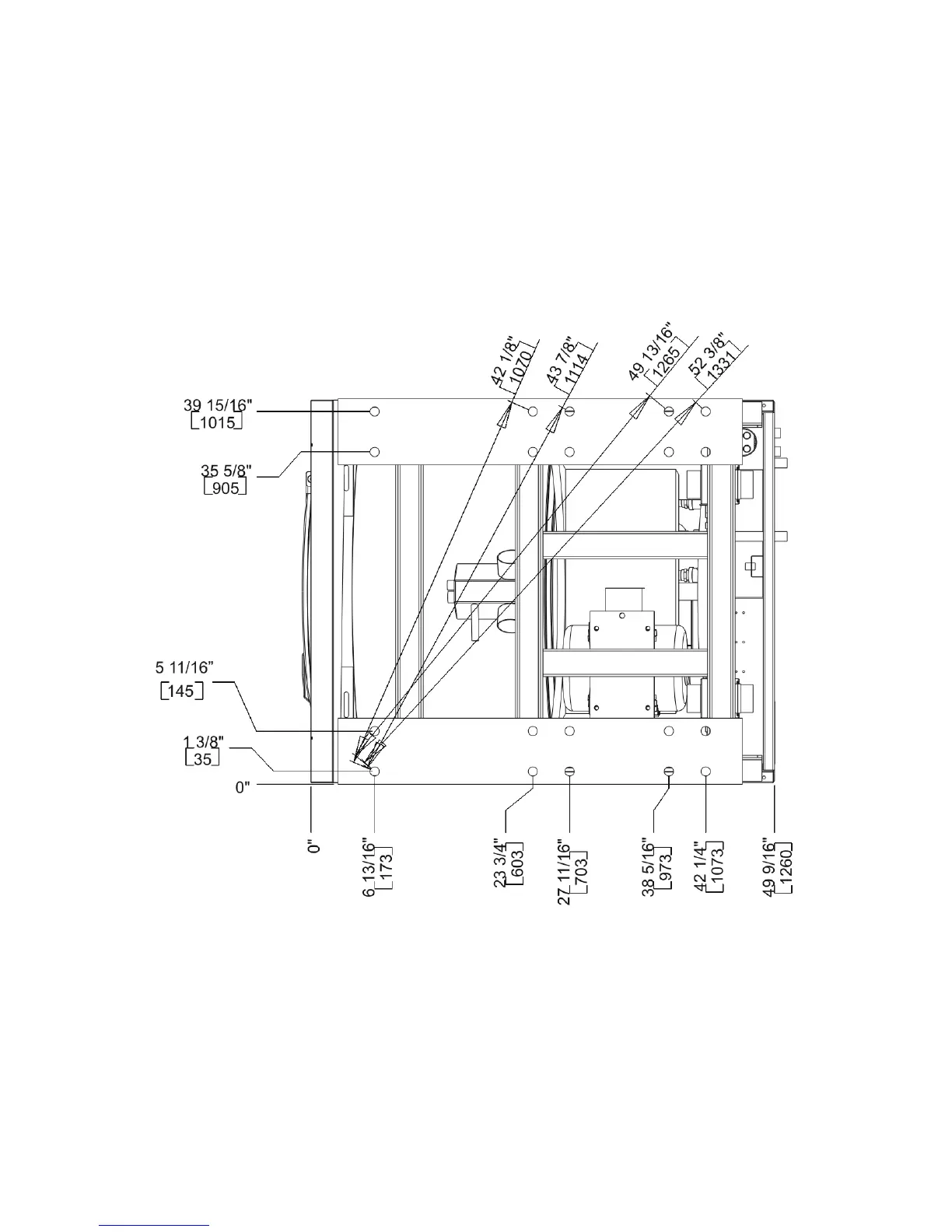

Figure 4.9: HE-85 Mounting Detail
23
