B&D Doors is a division of B&D Australia Pty Ltd
P: 13 62 63
W: www.bnd.com.au
EasyBeam
TM
Kit PE-3v1
Refer to compatibility table (page 2) for Product compatibility.
NOTE: Mount the receiver on the side of the doorway / gateway closest to the
opener / console.

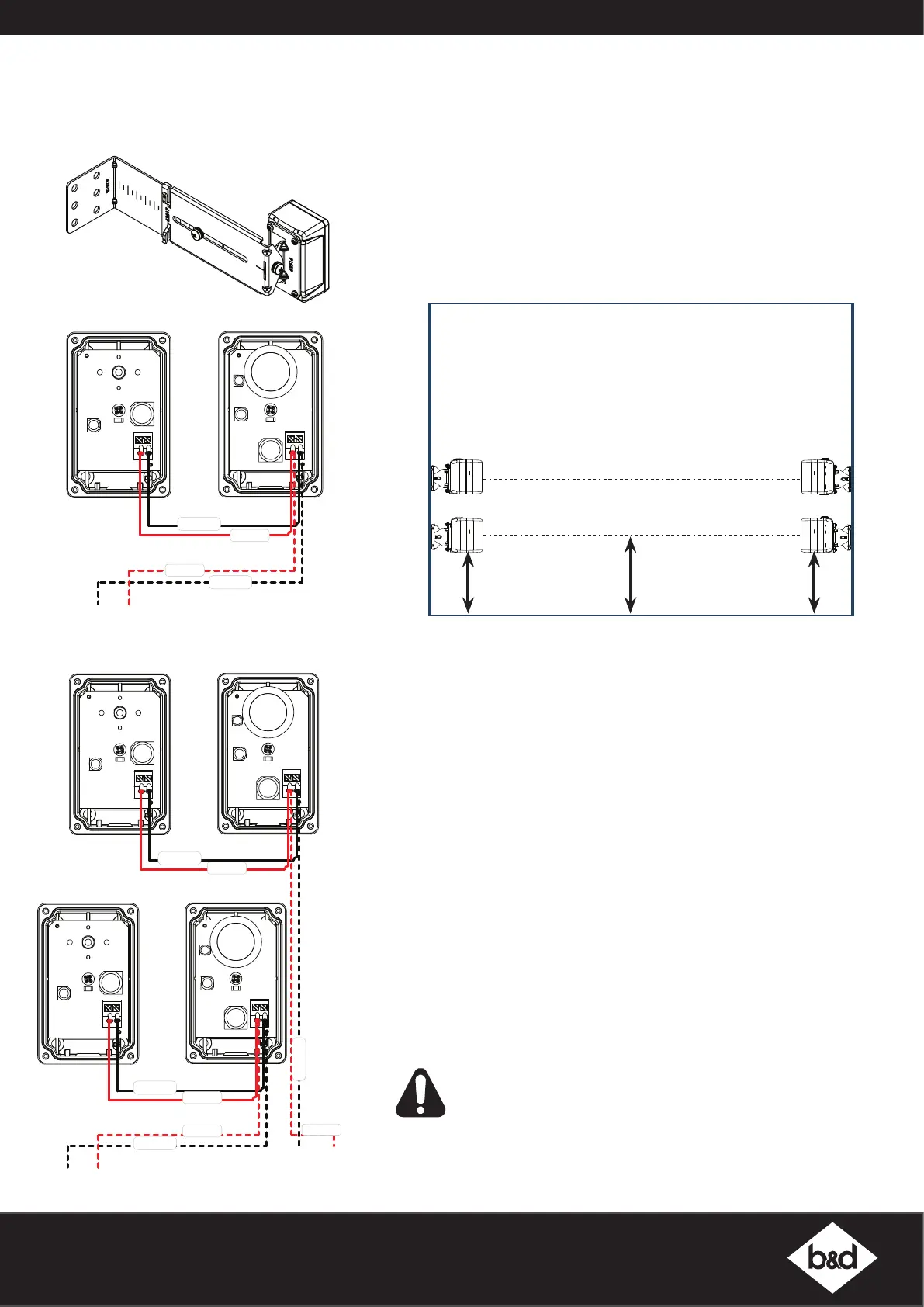

Assembling the Mounting Bracket
Assemble the mounting bracket as per instructions on page 2.
NOTE: When using two (2) sets of Safety Beams within the opening you must
alternative the configuration. See diagram below.
ATA recommends the transmitter and receiver are placed in line of sight, with the
beam 100mm above the ground level (as per AS60335). This can be achieved
by ensuring the bottom of the receiver and transmitter are 65mm above ground
level. They should also be placed as close as possible to the door / gate
opening.In industrial applications it is recommended that multiple Safety Beams
are fitted.
Wiring the EasyBeam
TM
PE-3v1
a. Connect the EasyBeam
TM
to the opener / console as per the first wiring
diagram for one (1) set of safety beams or second wiring diagram for two (2)
sets of safety beams.
Aligning the Transmitter and Receiver
a. Power up the opener with the safety beams connected. The green LED on the
transmitter should turn ON to indicate power is present.
b. If the receiver is connected to power and the red LED is flashing while the
green LED on the transmitter is on, the transmitter and receiver are not
aligned.
c. Make horizontal and/or vertical adjustment on the transmitter and/or receiver
until the red LED on the receiver turns on, indicating alignment.
Setting the limits
After aligning the safety beams, refer to the openers manual to set the travel
limits. If opener has been installed previously, ensure you clear the limits and
follows instructions to set limits again.
TRANSMITTER
RECEIVER
0V EB1 OR EB2 (OPENERS)
V- IN2 (C01L - CONSOLES)
0V SB1 OR SB2 (C02L - CONSOLES & GATES)
TX - 1RX - 1
TX - 2
RX - 2
65mm
Floor Level
100mm
65mm
Left side
bracket
WARNING! When using PE Beams, the doorway must be clear
of all obstructions and persons at all times. The location of the
beams and manner in which it is installed might not give safety
protection at all times. Check to make sure that the height of the
beam and type used give maximum protection possible.
TRANSMITTER
TRANSMITTER
TRANSMITTER RECEIVER
RECEIVER
0V EB1 (OPENERS)
0V SB1 (C02L - CONSOLES & GATES)
0V EB2 (OPENERS)
& GATES)
One (1) set
Two (2) sets
Black
Red
Black
Red
Black
Red
Black
Red
Black
Red
Black
Red
