PE 2000TS Kit
Refer to compatibility table (page 2) for Product compatibility.
NOTE: Mount the receiver on the side of the doorway / gateway closest to the
opener / console.
Assembling the Mounting Bracket
Assemble the mounting bracket as per instructions on page 2.
NOTE: When using two (2) sets of Safety Beams within the opening you must
alternative the configuration. See diagram below.
a. ATA recommends the transmitter and receiver are placed in line of sight,
with the beam 100mm above the ground level (as per AS60335). This can be
achieved by ensuring the bottom of the receiver and transmitter are 65mm
above ground level. They should also be placed as close as possible to the
door / gate opening.In industrial applications it is recommended that multiple
Safety Beams are fitted.

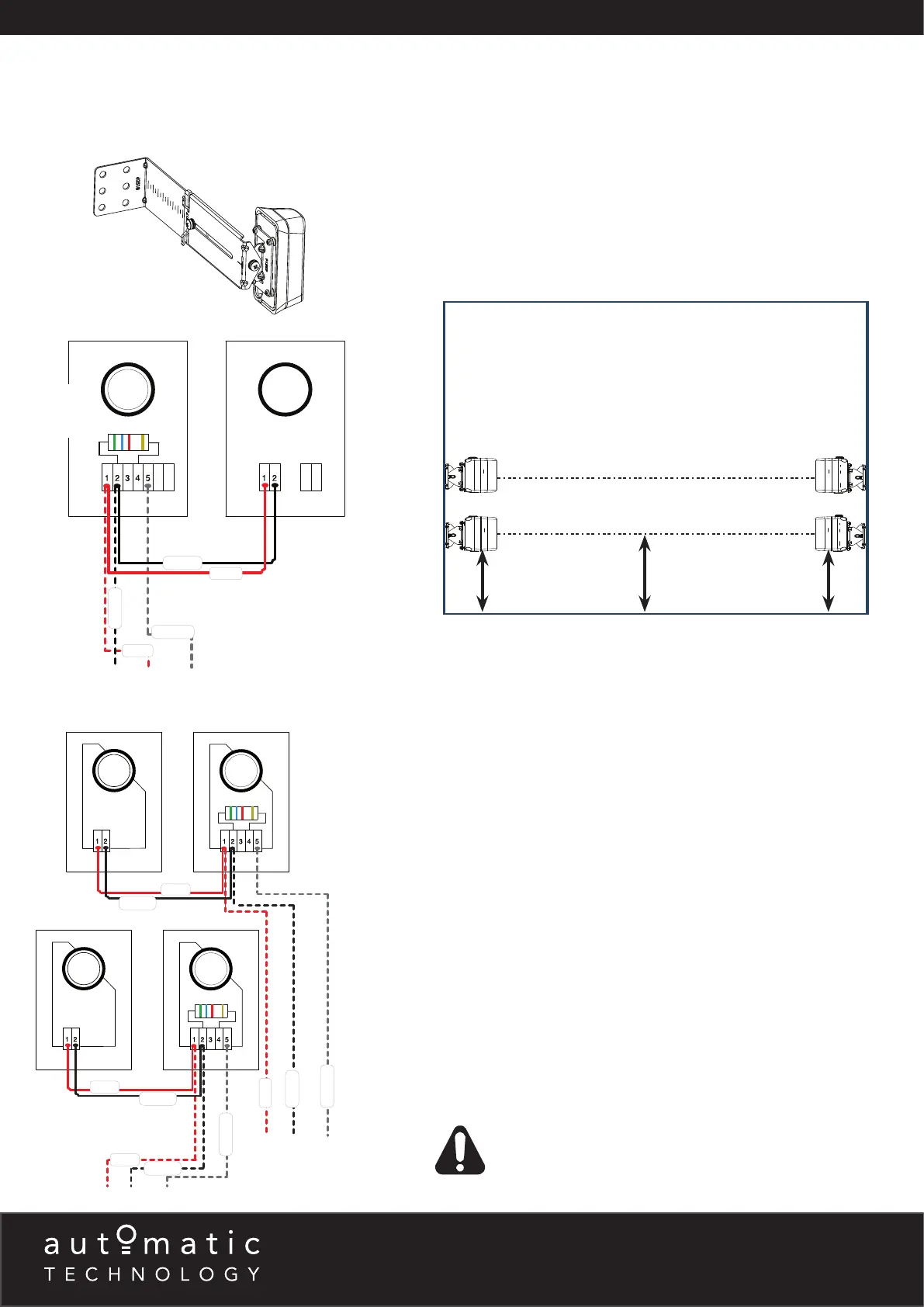

Wiring the PE 2000TS
a. Power off the opener.
b. A resistor is required to detect a short in the wiring of the Safety Beam
Receiver. Only one of the resistors is to be used inside the Receiver. Refer to
compatibility table (page 2) for Product specific resistors.
c. Connect the PE 2000TS to the opener / console as per the first wiring diagram
for one (1) set of safety beams or second wiring diagram for two (2) sets of
safety beams.
Aligning the Transmitter and Receiver
a. Power up the opener with the safety beams connected. The green LED on the
transmitter should turn ON to indicate power is present.
b. If the receiver is connected to power and the red LED is flashing while the
green LED on the transmitter is on, the transmitter and receiver are not
aligned.
c. Make horizontal and/or vertical adjustment on the transmitter and/or receiver
until the red LED on the receiver turns on, indicating alignment.
Setting the limits
After aligning the safety beams, refer to the openers manual to set the travel
limits. If opener has been installed previously, ensure you clear the limits and
follows instructions to set limits again.
RED
BLUE
GREEN
GOLD
+
+
-
-
6
7
0V PWR PE (OPENERS)
OUT V+ SB1 (GATES)
V- V+ IN3 (C01L - CONSOLES)
TRANSMITTERRECEIVER
TX - 1RX - 1
TX - 2
RX - 2
65mm
Floor Level
100mm
65mm
Left side
bracket
5.6K
resistor
shown
WARNING! When using PE Beams, the doorway must be clear of all
obstructions and persons at all times. The location of the beams and
manner in which it is installed might not give safety protection at all
times. Check to make sure that the height of the beam and type used
give maximum protection possible.
