Bandit 240 DB - Procedure to Change the HY-3 Pack

P. 27 - Replacement of HY-3 pack
OKOK
GuardGuard
AlarmAlarm
FailureFailure
HY-3HY-3
Power ?Power ?
BANDIT

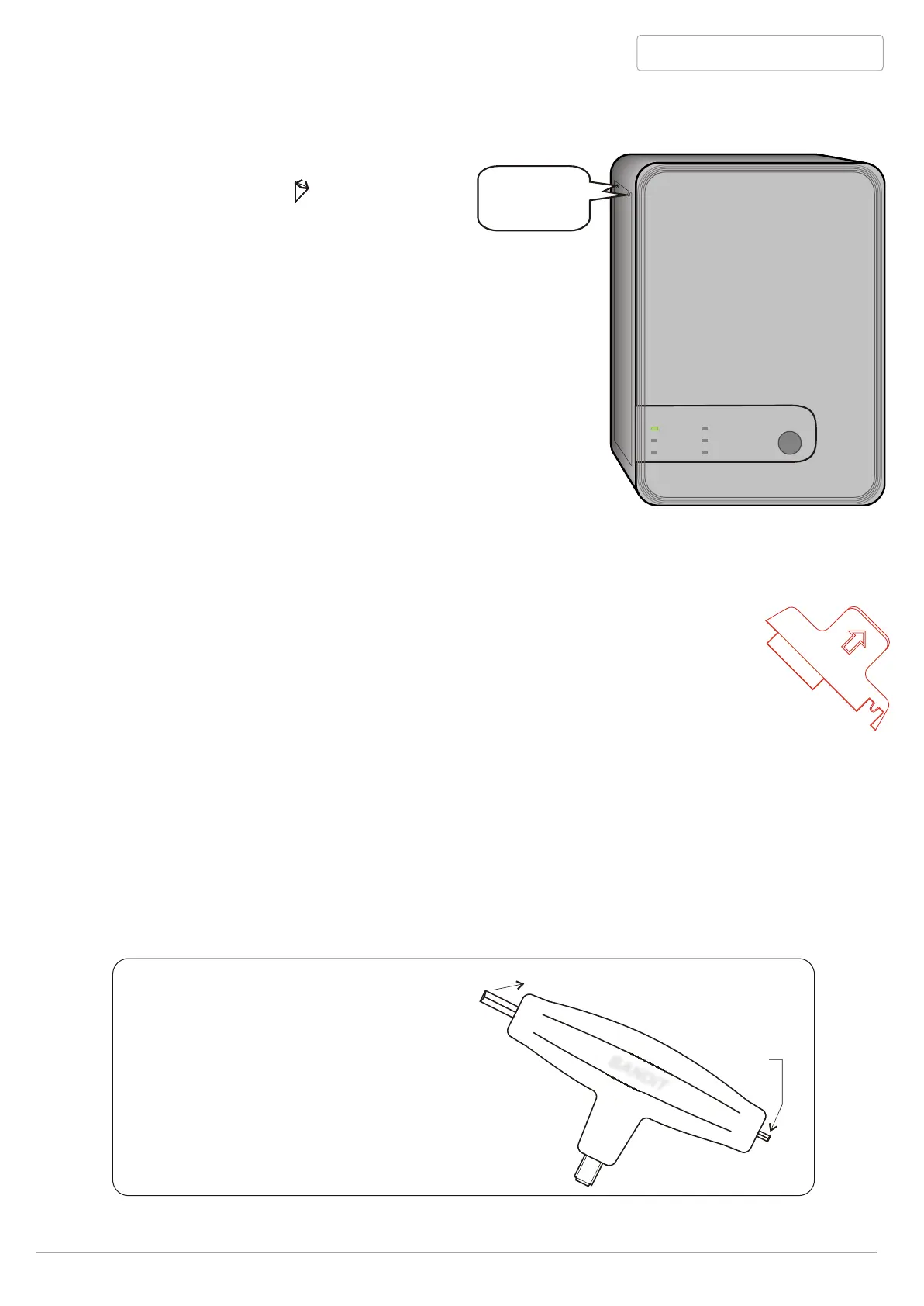

Two allen bolts
to loosen the
side hatch
HY
-
3
AN T
B
D
I
AN T
B
D
I
HY-3 pack grip
Allen key for red allen fixing bolts
Allen key for
unscrewing
side hatch
M8 thread end
HY
-
3
B
A
N
D
I
T
B
A
N
D
I
T
BANDIT 240 DB v.206
Procedure to change the HY-3 pack:
- First of all, the sabotage contact of the side
hatch must be switched off. Through the
“Control Box” switch,
or if there isn’t a "Control Box"
connected, by bridging the sabotage loop
of the controlling alarm system.
- Unscrew by means of the "HY-3 pack grip" the side hatch
by loosening the 2 allen bolts (there are anti loss rings
on the bolts).
- Remove the side hatch and put it gently (to avoid
scratches) on the unit.
- Open the box of the new HY-3 pack
and put the upper layer next to the box.
- Use the "HY-3 pack grip" allen key #5. Unscrew the
2 red allen-fixing bolts. Put these also on the
unit.
- Screw on the M8 thread end of the "HY-3 pack grip"
in the M8 hole and pull the "HY-3 pack grip", the whole
HY-3 pack will slide over the 2 slide pins out of the unit.
- Put the “old HY-3 pack” in the upper layer of the HY-3 pack box.
Unscrew the "HY-3 pack grip" and screw it on the new
HY-3 pack. Pull off the red transport protection cap and put it on the "old" HY-3 pack.
- Push evenly the HY-3 pack over the slide pins into the unit. Press slightly on
to make sure the HY-3 pack connector and the liquid coupling are sliding over
their respective connector and coupling.
- Unscrew the HY-3 pack grip and fasten both red allen fixing bolts.
- The green HY-3 pack LED will be on continuously (everything OK).
- Remount the side hatch and fix it by fastening both allen bolts. Put the sabotage switch
of the side hatch back off (green LED switch and front LED “failure” go off).
- Repack the “old” HY-3 pack in the original box (tape it).
- For refilling: ship the box by normal freight to your BANDIT-dealer.
Normally the returned HY-3 packs get a technical check, are refilled, memory reset and tested.
Additional costs will be incurred if the returned HY-3 pack shows deep scratches or dents.
Repair cost will be assessed by the company. The costs to repair the HY-3 pack
into a reasonable condition to sell, will be charged to your account.
Changing the HY-3 pack, takes about 5
minutes. You will need a new HY-3 pack
and the HY-3 pack grip, and possibly a
ladder to reach a higher installed unit.
With each BANDIT comes a "HY-3 pack
grip".
