Bandit 240 DB - Hidden Mounting

þ Make sure the BANDIT is firmly secured to wall or floor, to prevent a burglar with prior
knowledge from throwing the unit quickly through a window.
Use an optional available BANDIT wallmounting to install the unit against a wall:
There are two kinds of wallmounting: flat or swivel. Use the re-usable mounting help
“Handy boy” to install the unit, as this tool carries the unit and makes it possible that any
person can install the device easily by himself.
- For wallmounting against a solid brick wall, use plugs and screws supplied within
- For wallmounting against a double plaster wall, use special metal plaster-plugs
available in any hardware store.
- For wallmounting against a single layer plaster wall: install the unit only in an inner
corner and order in addition an optional plaster inner corner support plate. Don’t install
the unit with a normal wallmounting against these kind of walls to avoid the device
Falling on the floor after a while, due to its weight.
p. 6 - Mounting
þ For floor mounting, use BANDIT floor mounting. This floor mounting is screwed into the
floor or stuck to it with included double-sided adhesive tape. The device is installed at 6 cm
off the floor to avoid possible damage due to cleaning tools or water.
Hidden mounting of the appliance
þ For installation into a closet, order the device with option /L. This unit is supplied with 4
rubber supports, a 50 mm extended ejection nozzle (a standard closet door has a
thickness of approximately 20 mm) and a heat resistant black metal door rosette (ejection
nozzle passage). This way you can hide the device and at the outside only a little rosette
(dia. ~50) will be visible. Make sure you provide a ventilation grid above and beneath to
avoid too much rising of the temperature in the closet due to BANDIT ‘s heat loss. With
an ambient temperature above 50°C, the unit will activate its technical output [Okout] and
you can expect damage on the internal lead battery. Also available option besides the
regular /L/R60 is the straith ejection mouth option /L /R0.
4 rubber supports on
shelf in a closet
BANDIT 240 DB v.206
Do not use any other rosette than the
one supplied with the unit. The supplied
rosette is made of aluminium with a
special heat and steam resistant
coating.

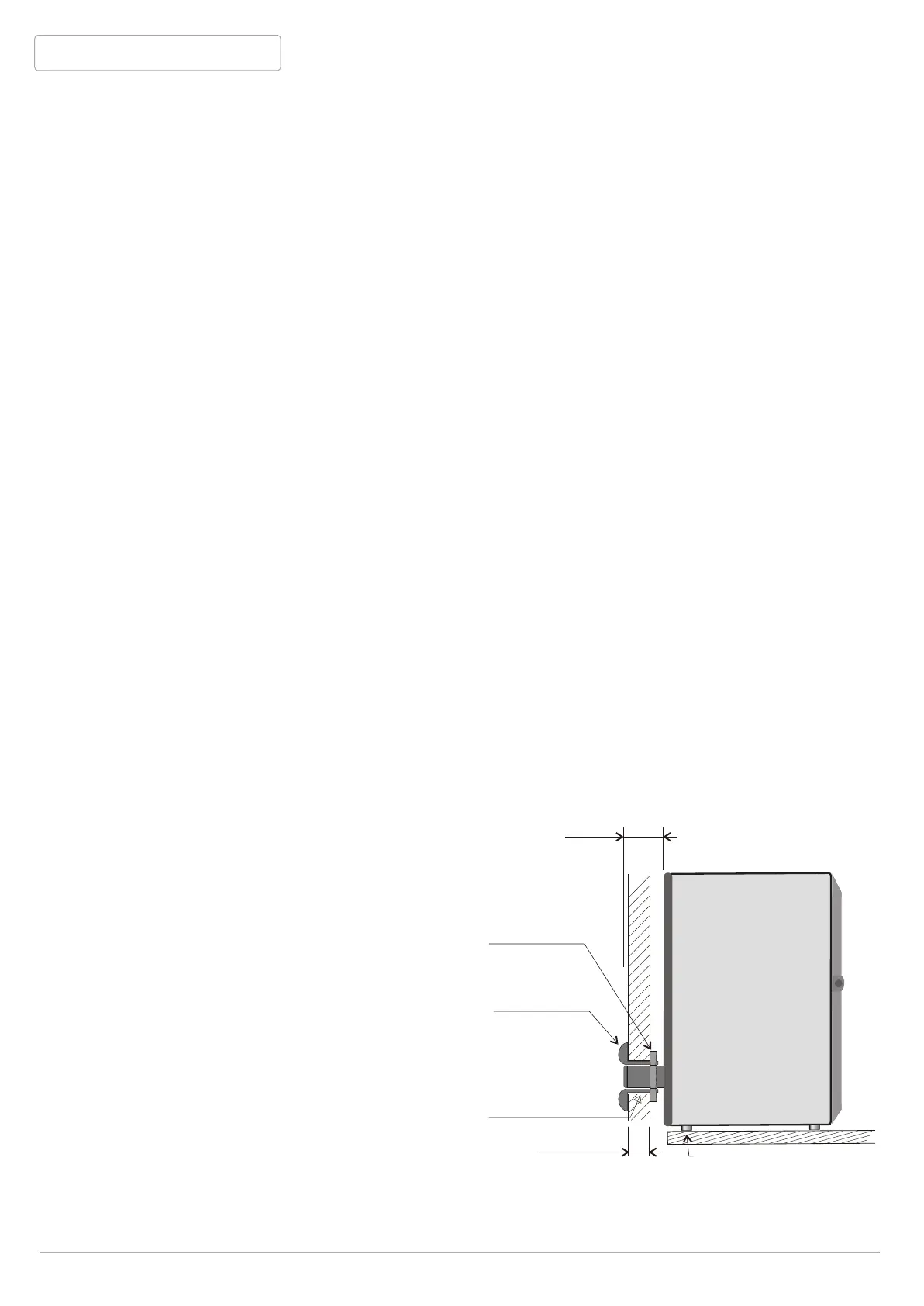

Hole trough closet
door (holesaw)
dia. ~52 mm.
max. 24 mm
50 mm
Black rozette
Rozette
assembly nut
M 50 x s. 1.5
F
