Page 4

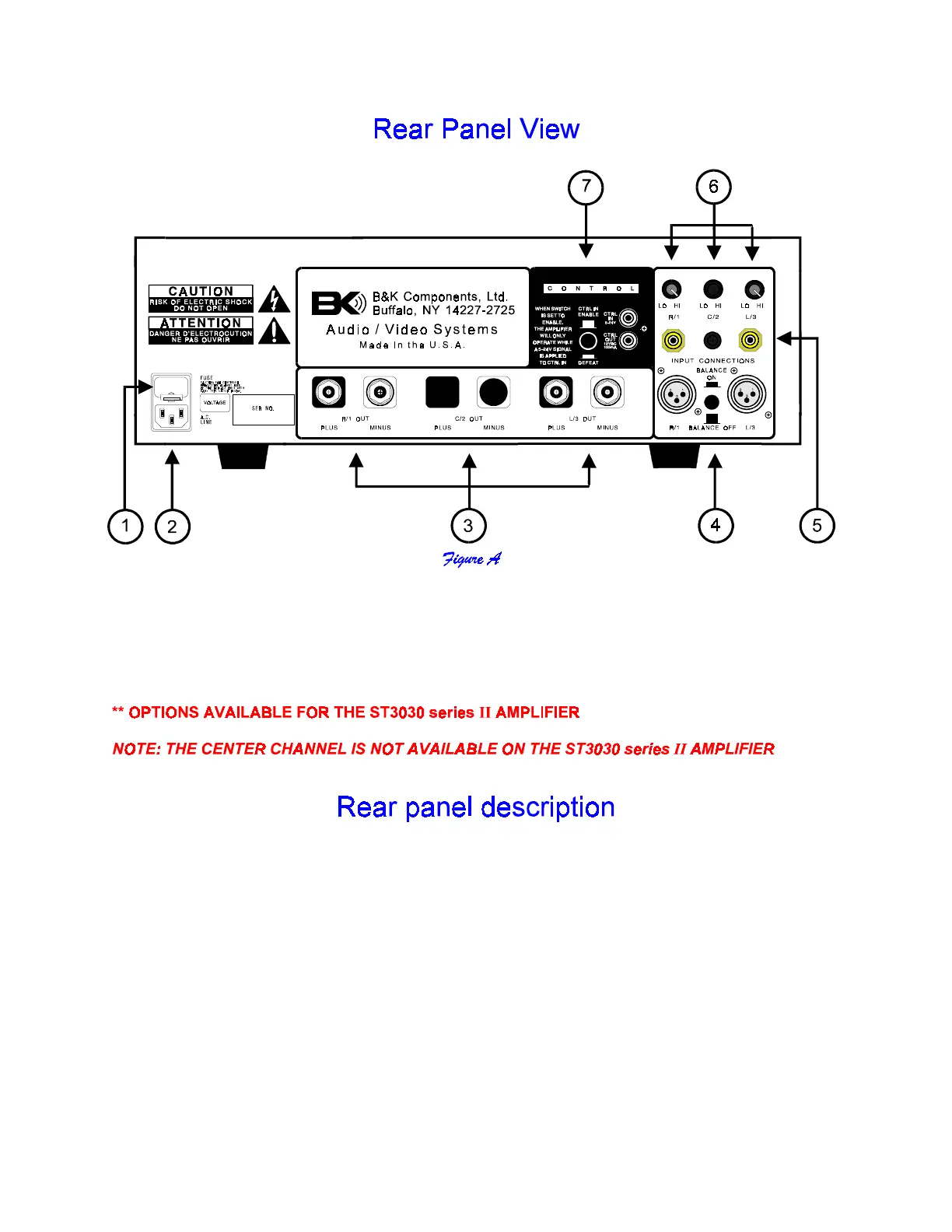

1. AC fuse holder 5. RCA inputs (unbalanced)
2. AC Input receptacle 6. Level controls **
3. Speaker outputs 7. Amplifier control muting input/output
4. Balanced inputs
1. AC fuse holder - Holds the AC Line fuse. This fuse is an 8 Amp / 250 Volt
Slow Blow fuse. Replace with same type and value fuse
only.
2. AC Input receptacle - For attaching the supplied AC power cord to the
amplifier.
3. Speaker outputs - For connecting the speakers to the amplifier. Explained
further on page 7.
