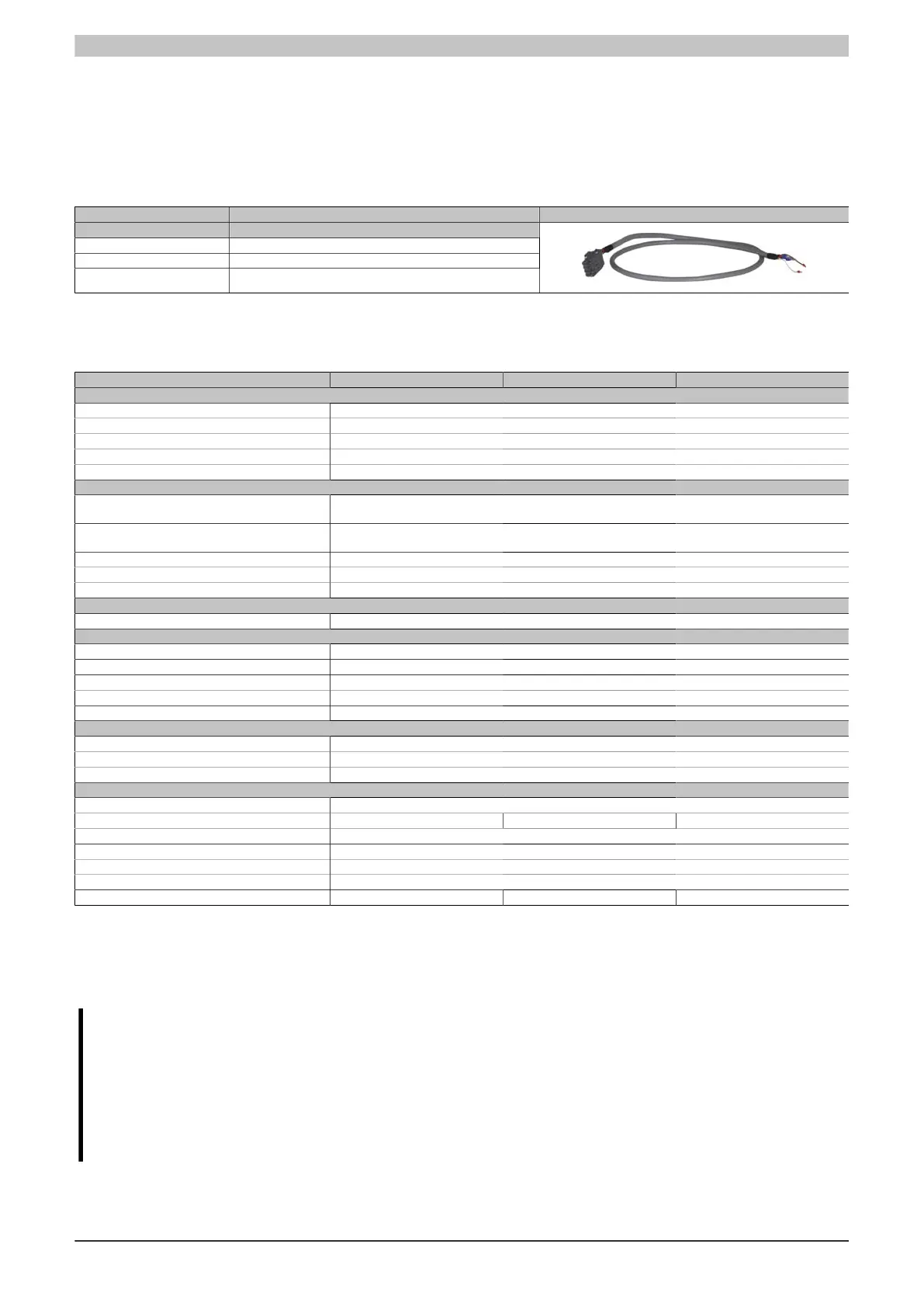

B&R Panel PC 900 - 5 Caups.XXXX-01

Technical data
190 Panel PC 900 user's manual V1.18
2.3.11.6 5CAUPS.xxxx-01
2.3.11.6.1 General information
The UPS connection cable establishes the connection between the UPS interface option and battery unit.
2.3.11.6.2 Order data
Model number Short description Figure
Uninterruptible power supplies
5CAUPS.0005-01 UPS cable - 0.5 m - For 5AC901.IUPS-xx
5CAUPS.0010-01 UPS cable - 1 m - For 5AC901.IUPS-xx
5CAUPS.0030-01 UPS cable - 3 m - For 5AC901.IUPS-xx
Table 184: 5CAUPS.0005-01, 5CAUPS.0010-01, 5CAUPS.0030-01 - Order data
2.3.11.6.3 Technical data
Model number 5CAUPS.0005-01 5CAUPS.0010-01 5CAUPS.0030-01
General information
Certification
CE Yes
cULus Yes
cULus HazLoc Class 1 Division 2 Yes
1)
GOST-R Yes
Cable construction
Wire cross section 2x 0.5 mm
2
(AWG 20)
2x 2.5 mm
2
(AWG 13)
Conductor resistance At 0.5 mm
2
max. 39 Ω/km
At 2.5 mm
2
max. 7.98 Ω/km
2)
Outer sheathing
Material Thermoplastic PVC-based material
Color Window gray (similar to RAL 7040)
Connector
Type Screw clamps, 4-pin
3)
Electrical characteristics
Operating voltage Max. 30 VDC
Peak operating voltage Typ. 30 VDC
Test voltage
Wire/Wire 1500 V
Current-carrying capacity 10 A at 20°C
Environmental conditions
Temperature
Moving -5 to 70°C
Static -30 to 70°C
Mechanical characteristics
Dimensions
Length 0.5 m 1 m 3 m
Diameter 7 mm
Bend radius
Moving 10x wire diameter
Fixed installation 5x wire diameter
Weight Approx. 55 g Approx. 100 g Approx. 250 g
Table 185: 5CAUPS.0005-01, 5CAUPS.0010-01, 5CAUPS.0030-01 - Technical data
1) Yes, although applies only if all components installed within the complete system have this certification and the complete system itself carries the corresponding
mark.
2) At an ambient temperature of 20°C.
3) Tightening torque: min. 0.4 Nm, max. 0.5 Nm.
Information:
The maximum length of the UPS connection cable depends on the following:
•
Power value
•
Voltage drop
•
Wire cross section
•
Sensor line
