Bang & Olufsen Beogram 3000 Service Manual

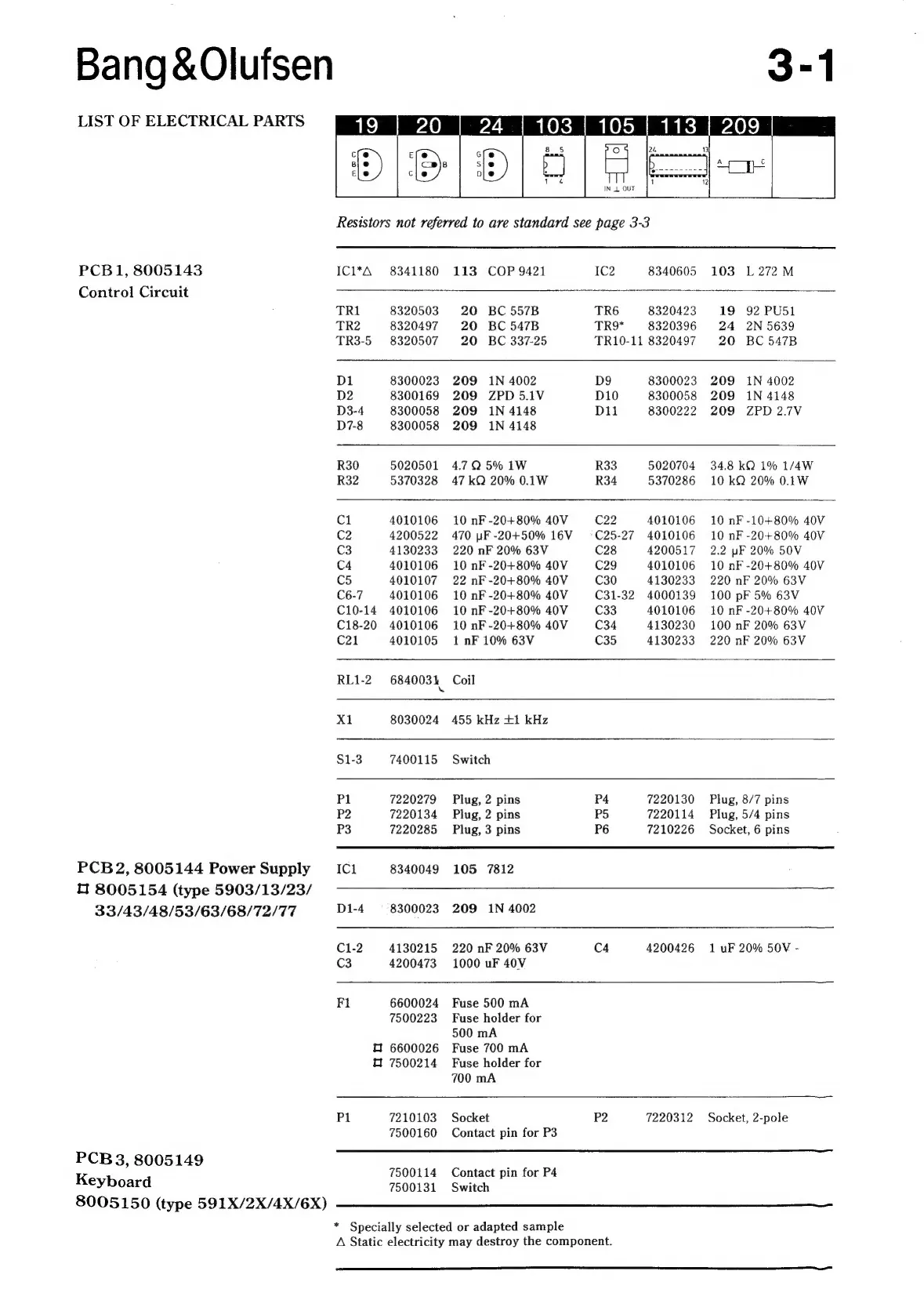

Bang &Olufsen 3-1
LIST OF ELECTRICAL PARTS 105
IN LL OUT
Resistors not referred to are standard see page 3-3
PCB1, 8005143 IC1*A 8341180 113 COP 9421 IC2 8340605 103 L272M
Control Circuit
TRI 8320503 20 BC 557B TR6 8320423 19 92 PU51
TR2 8320497 20 BC 547B TR9* 8320396 24 2N 5639
TR3-5 8320507 20 BC 337-25 TR10-11 8320497 20 BC 547B
D1 8300023 209 1N 4002 D9 8300023 209 1N 4002
D2 8300169 209 ZPD 5.1V D10 8300058 209 1N 4148
D3-4 8300058 209 1N 4148 Dili 8300222 209 ZPD 2.7V
D7-8 8300058 209 1N 4148
R30 5020501 4.7Q 5% 1W R33 5020704 34.8 kQ 1% 1/4W
R32 5370328 47 kQ 20% 0.1W R34 5370286 10 kQ 20% 0.1W
Cl 4010106 10 nF-20+80% 40V C22 4010106 10 nF-10+80% 40V
C2 4200522 470 uF-20+50% 16V = C25-27 4010106 10 nF -20+80% 40V
C3 4130233 220 nF 20% 63V C28 4200517 2.2 pF 20% 50V
C4 4010106 10 nF-20+80% 40V C29 4010106 10 nF-20+80% 40V
C5 4010107 22 nF-20+80% 40V C30 4130233 220 nF 20% 63V
C6-7 4010106 10 nF-20+80% 40V C31-32 4000139 100 pF 5% 63V
C10-14 4010106 10 nF-20+80% 40V C33 4010106 10 nF-20+80% 40V
C18-20 4010106 10 nF-20+80% 40V C34 4130230 100 nF 20% 63V
C21 4010105 1 nF 10% 63V C35 4130233 220 nF 20% 63V
RL1-2 6840034 Coil
Xl 8030024 455 kHz +1 kHz
$1-3 7400115 Switch
Pl 7220279 Plug, 2 pins P4 7220130 Plug, 8/7 pins
P2 7220134 Plug, 2 pins PS 7220114 Plug, 5/4 pins
P3 7220285 Plug, 3 pins P6 7210226 Socket, 6 pins
PCB 2, 8005144 Power Supply _ICi 8340049 105 7812
1 8005154 (type 5903/13/23/
33/43/48/53/63/68/72/77 D1-4 —- 8300023. 209 1N 4002
C1-2 4130215 220 nF 20% 63V C4 4200426 1 uF 20% 50V -
C3 4200473 1000 uF 40V
Fl 6600024 Fuse 500 mA
7500223 Fuse holder for
500 mA
6600026 Fuse 700 mA
7500214 Fuse holder for
700 mA
Pl 7210103 Socket P2 7220312 Socket, 2-pole
7500160 Contact pin for P3
PCB 3, 8005149 7500114 Contact pin for P4
ontact pin tor
Keyboard
7500131
Switch
8005150 (type 591X/2X/4X/6X)
* Specially selected or adapted sample
A Static electricity may destroy the component.
