MASTER LINK
INSTALLATION TYPES
In this section we explain in brief the two ways to perform installations,
namely hidden and visible installation. The examples describe different
ways of using Bang & Olufsen installation accessories, as described at the
back of the manual.
The installations only show a couple of installation examples, but there is,
of course, a whole range of other possibilities which we cannot go through
in detail here.

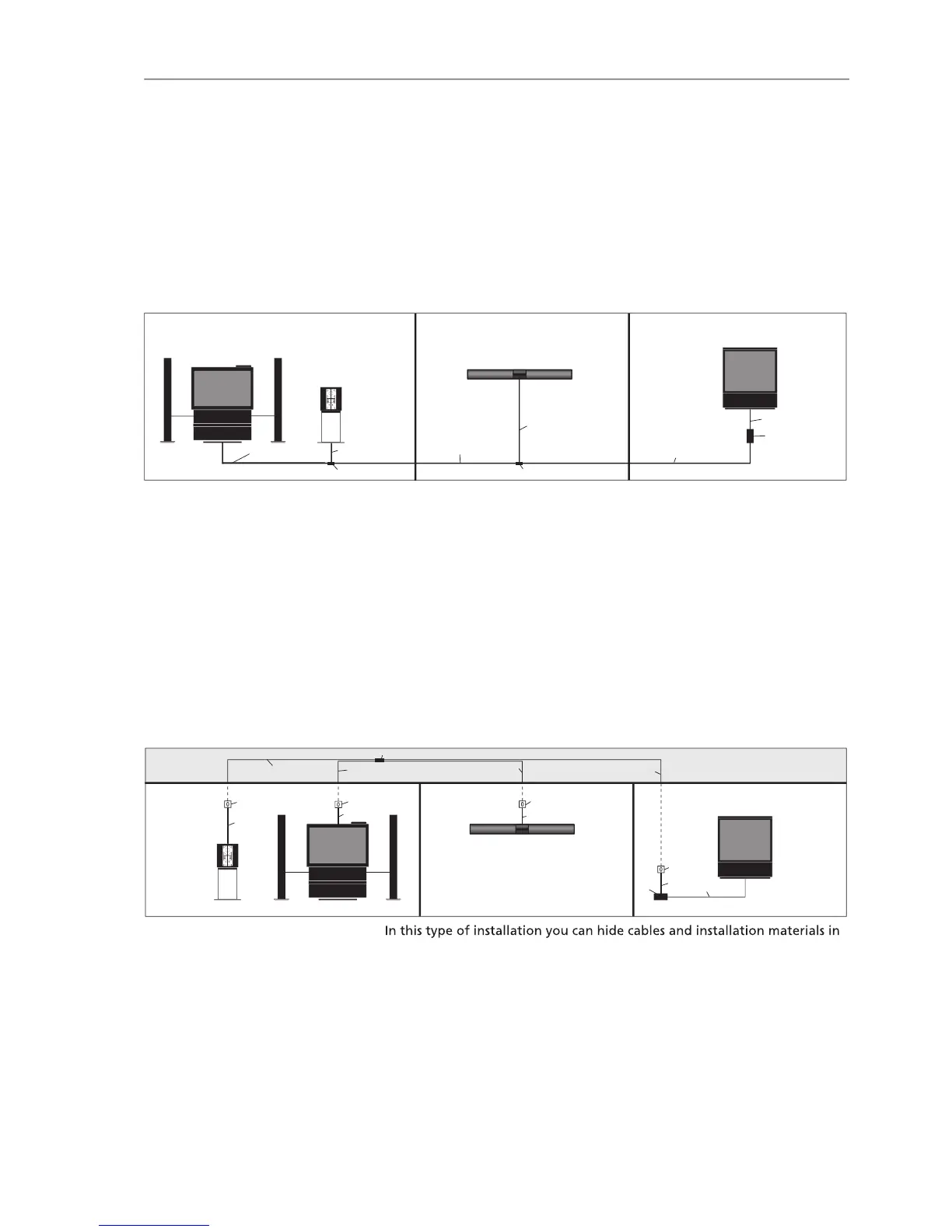

Visible installation









A visible installation is used when it is not possible to hide cables and
installation materials in the loft and/or using cable conduits in the walls.
In this example we have used:
1.
4 x Master Link cable with one plug
2.
Master Link cable without plugs
3.
2 x Master Link junction boxes
4.
1 x BeoLink Video
5.
1 x Datalink cable (supplied with BeoLink Video)
23
Hidden installation















In this type of installation you can hide cables and installation materials in
walls and/or loft. In this example we have used:
1.
4 x Master Link cable with two plugs
2.
Master Link cable without plugs
3.
4 x Master Link wall socket
4.
1 x Master Link junction box
5.
1 x BeoLink Video
6.
1 x Datalink cable (supplied with BeoLink Video)
