MASTER LINK
31















1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PI
GN
WH/
GN
WH/
BL
OR
WH/
OR
WH/
RD
RD
BL
white
shield
grey
pink
green
shield
brown
yellow
shield
shield
grey
white
7
1
2
3
4
5
6
8
7
1
2
3
4
5
6
8

Power Link cable with core for display data
Pins in Master
Cable colour
Function
Link plug
1
white/green (WH/GN)
Data -
2
green (GN)
Data +
3
white/blue (WH/BL)
ML sensor
4-10
No connection
11
blue (BL)
- supply voltage
12
pink (PI)
+ supply voltage
13
white/orange (WH/OR)
- L (left channel)
14
orange (OR)
+ L (left channel)
15
white/red (WH/RD)
- R (right channel)
16
red (RD)
+ R (right channel)
Shield
3 x solid cable
ground
TECHNICAL DESCRIPTION
The following section contains a short description of the cable installations
most often used in connection with a BeoLink installation.
Picture signals (from satellite and normal TV receiver and video recorder) are
distributed through a 75 ohm coax cable.
Descriptions of the spare part numbers can be found in "Accessories".


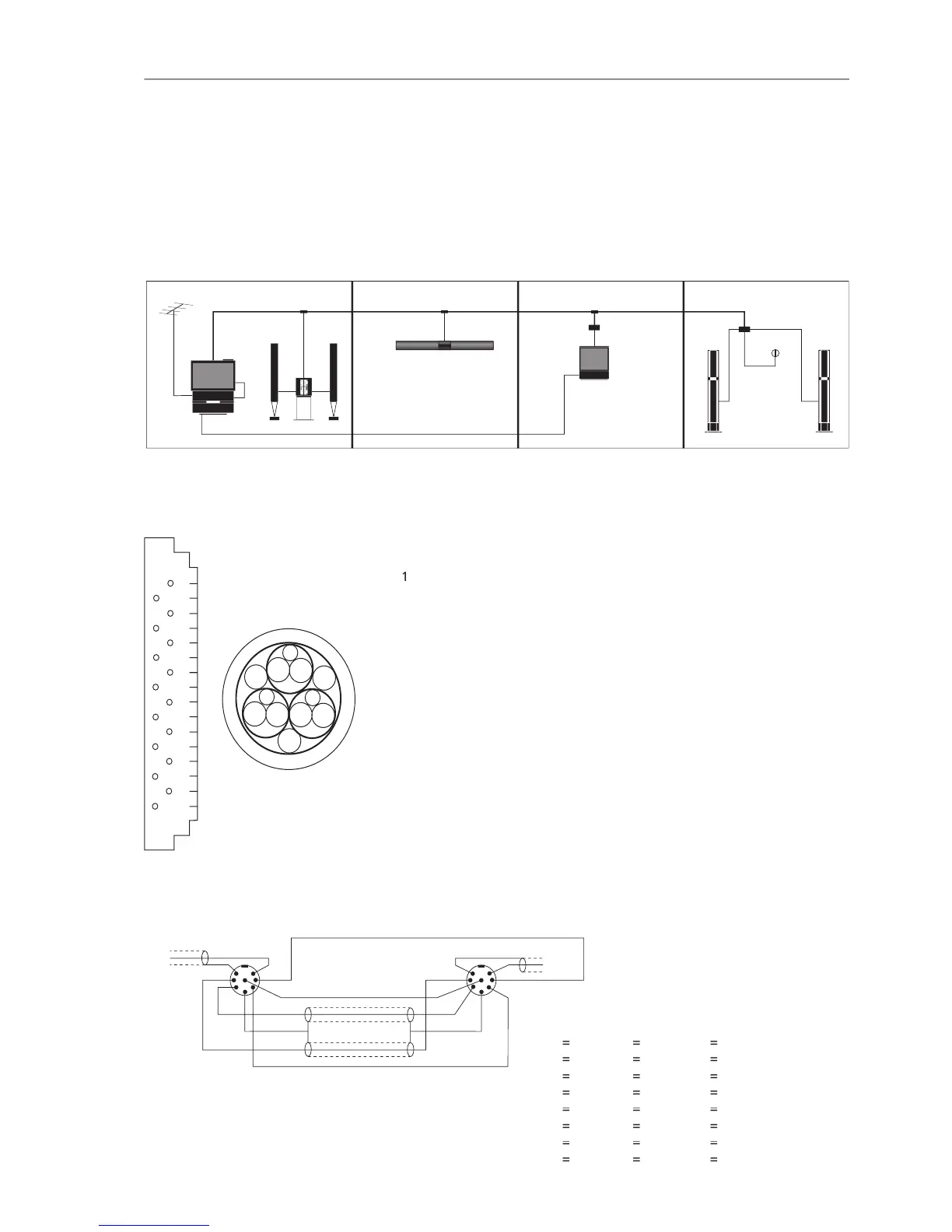

Master Link cable
Pin 1
=
grey
=
grey
=
power up/down
Pin 2
=
shield
=
shield
=
ground
Pin 3
=
brown
=
brown
=
signal, left channel
Pin 4
=
yellow
=
yellow
=
loudspeaker relay
Pin 5
=
green
=
green
=
signal, right channel
Pin 6
=
white
=
white
=
Datalink
Pin 7
=
shield
=
shield
=
ground
Pin 8
=
pink
=
pink
=
overload
