POWER LINK CENTRE Pin 1 PL ON => 2.5V, OFF =< 0.5V
SURROUND SOUND SPEAKERS Pin 2 Signal GND
FRONT & REAR CINEMA CENTRE & SUBWOOFER Pin 3 Audio L out 0V - 6.5V RMS
Pin 4 PL speaker ON => 2.5V, OFF =< 0.5V
Pin 5 Audio R out 0V - 6.5V RMS
Pin 6 Data: High >3.5V, Low <0.8V
Pin 7 Data GND
Pin 8 Not used
(Pin 3 and 5 are connected in the SUBWOOFER socket)
DVI-I Pin 1
Data 2 -
(For connection of e.g. a PC. Supported formats are: Pin 2
Data 2 +
DVI and VGA, 60 Hz, 640 x 480, 800 x 600, 1024 x 768, Pin 3 Data 2/4 shield
1280 x 720, 1366 x 768) Pin 4 Data 4 -
Pin 5 Data 4 +
Pin 6 DDC Clock
Pin 7 DDC Data
Pin 8 Analog vert. sync
Pin 9 Data 1 -
Pin 10 Data 1 +
Pin 11 Data 1/3 shield
Pin 12 Data 3 -
Pin 13 Data 3 +
Pin 14 + 5V
Pin 15 GND
Pin 16 Hot plug detect
Pin 17 Data 0 -
Pin 18 Data 0 +
Pin 19 Data 0/5 shield
Pin 20 Data 5 -
Pin 21 Data 5 +
Pin 22 Clock shield
Pin 23 Clock +
Pin 24 Clock -
C1 Analog red
C2 Analog green
C3 Analog blue
C4 Analog hor. sync.
C5 Analog GND
AV4 Phono Composite video in 1Vpp 75 ohms &
Audio L-R in 0.2 - 2V RMS > 10 kohms
DIGITAL AUDIO IN A1, A2, A3, A4 Coax phono Digital audio inputs
IR CONTROL OUT C1 Mini jack stereo (because of flash update)
(For IR control of external equipment C2, C3 & C4 Mini jack mono
connected to one of the AV sockets)
PROJECTOR Pin 1 Red out 0.7 Vpp 75 ohms
Pin 2 Green out 0.7 Vpp 75 ohms
Pin 3 Blue out 0.7 Vpp 75 ohms
Pin 13 H Sync out 5 Vpp 75 ohms
Pin 14 V Sync out 5 Vpp 75 ohms
Pin 6, 7, 8 & 10 GND
Pin 4 5, 9, 11, 12 & 15 Not used
Pr/Pb/Y Phono Component video inputs
(For connection of video signal from an external source
such as a HDTV source, can be used in conjunction with
an AV socket - or a digital audio socket)

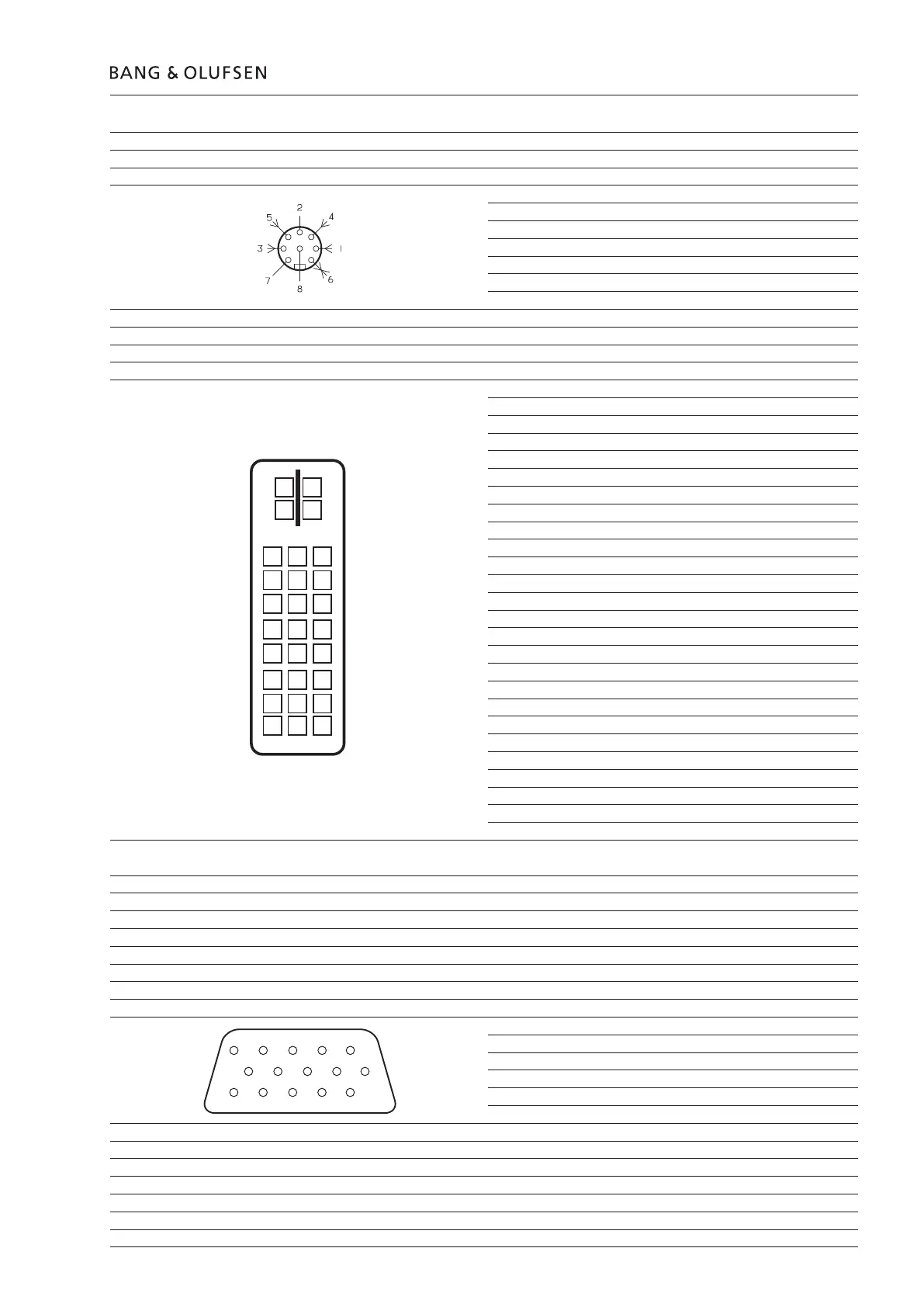

Specification guidelines for service use 6.3
DVI-I plug
24
17
8
1 9
16
C4
C3
C2
C1
