IR IN Mini jack
(For connection of an external IR receiver used in connection
with Home cinema setups, where the screen covers the IR
receiver of the television)
P1 BtB P2
Stereo mini jack IR code converter outputs (for Hotel setups)
DATA 9 pin D-sub (for Hotel setups)

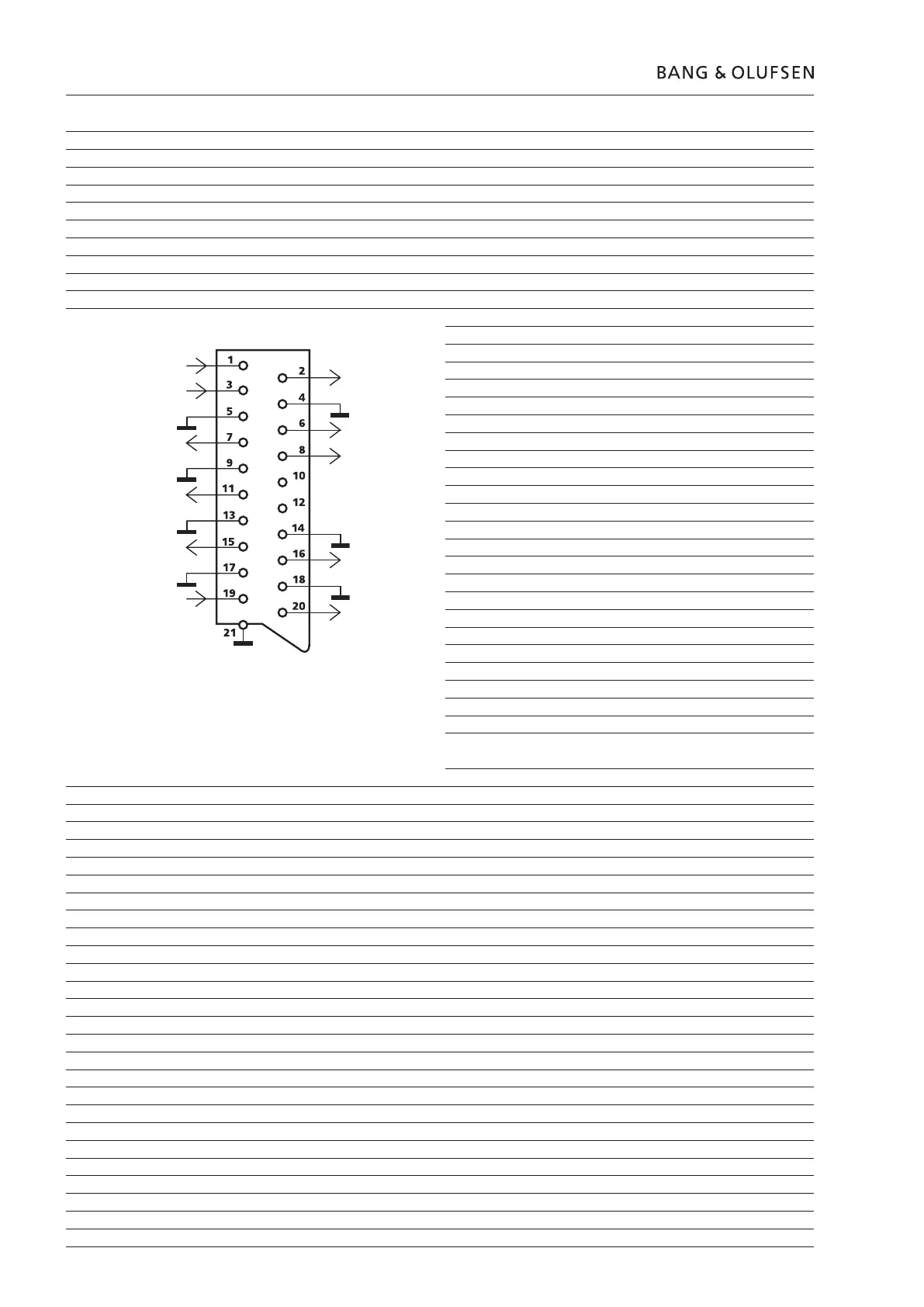

AV1, AV2 & AV3 Pin 1 Audio R out 1V RMS 150 ohms (N.C. on AV3)
Pin 2 Audio R in 1V RMS 40 kohms
Pin 3 Audio L out 1V RMS 150 ohms (N.C. on AV3)
Pin 4 Audio GND
Pin 5 Blue GND
Pin 6 Audio L in 1V RMS 40 kohms
Pin 7 Blue in 0.7 Vpp 75 ohms
Pin 8 Play voltage: Logic 0 = 0V to 2V
Logic 1 = 9.5V to 12V (4:3 info)
5V to 7V = 16:9 info
AV1 Data in/out
AV2 & AV3 Data out
Pin 9 Green GND
Pin 10 Not used
Pin 11 Green in 0.7 Vpp 75 ohms
Pin 12 Not used
Pin 13 Red GND
Pin 14 Blanking GND
Pin 15 Red in 0.7 Vpp 75 ohms – is also used for C in (not on AV3)
Pin 16 Blanking in Logic 0 = 0V to 0.4V
Logic 1 = 1V to 3V
R in 75 ohms
Pin 17 Video out GND
Pin 18 Video in GND
Pin 19 Composite video out 1 Vpp 75 ohms (N.C. on AV3)
Pin 20 Composite video in 1 Vpp 75 ohms – is also used for Y in
(not on AV3)
Pin 21 Shield
CAMCORDER
VIDEO Composite video in 1Vpp 75 ohms auto detection
L & R Audio L & R in 0.2V - 2 V RMS >10 kohms
PHONES Ø 3.5 mm 8 - 32 ohms
DVB DATA 9 pin D-SUB RS232 data (for update reasons only)
STAND Pin 1 GND
Pin 2 Turn Left < 1.4V
Pin 3 Turn Right < 1.4V
Pin 4 Stand Position feedback 0 - 5V pulses
Pin 5 14V supply
TV IN
75 ohms aerial input female
LINK TV OUT 75 ohms aerial male. Output to RF Link amplifier
DVB F-connector DVB-S input (optional)
Subject to change without notice
6.4 Specification guidelines for service use
