Banner Expert DF-G1-NS-2M - Wiring Diagrams

TO
FIBERS
TO
SENSOR
Fiber Outer Diameter (mm) Adapter Color
Ø 1.0 Black
Ø 1.3 Red
Ø 2.2 No adapter needed
When connecting coaxial-type fiber assemblies to the amplifier, install the single-core fiber to the Transmitter port, and the
multi-core fiber to the Receiver port. This will result in the most reliable detection.
TRANSMITTER
RECEIVER
Single-core fiber
Multi-core fiber

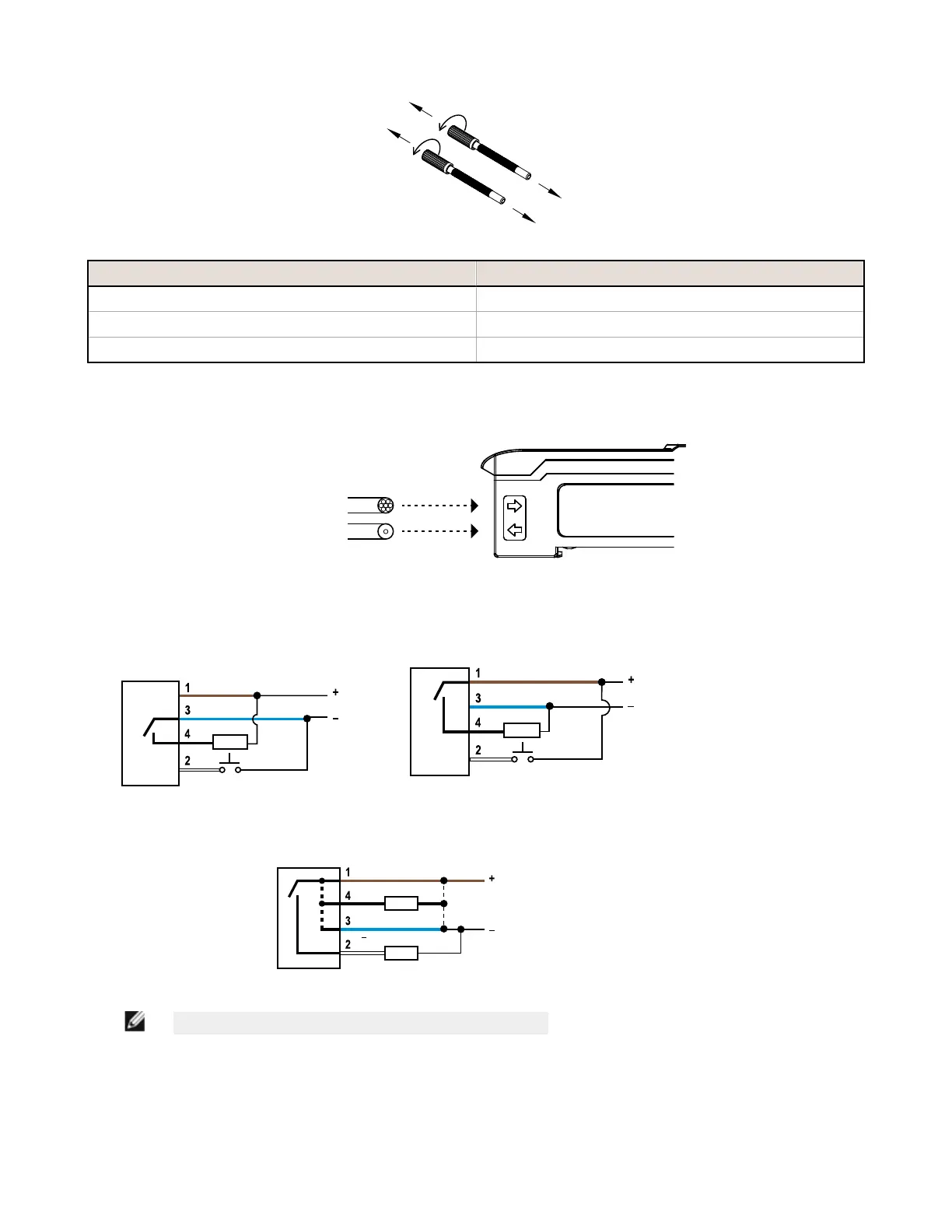

Wiring Diagrams
NPN Models
Remote
Programming
(N.O.)
10-30V dc
Load
PNP Models
Load
10–30 V dc
Remote
Programming
(N.O.)
Key
1 = Brown
2 = White
3 = Blue
4 = Black
IO-Link Models
(C/Q)
(Q)
PUSH-PULL
18-30V dc
Load
Load
NOTE: Open lead wires must be connected to a terminal block.
DF-G1 Expert
™
Dual Display Fiber Amplifier
P/N 161275 Rev. D www.bannerengineering.com - Tel: +1-763-544-3164 3
