Banner TL70 - Assembling the Modules; Wiring Diagrams

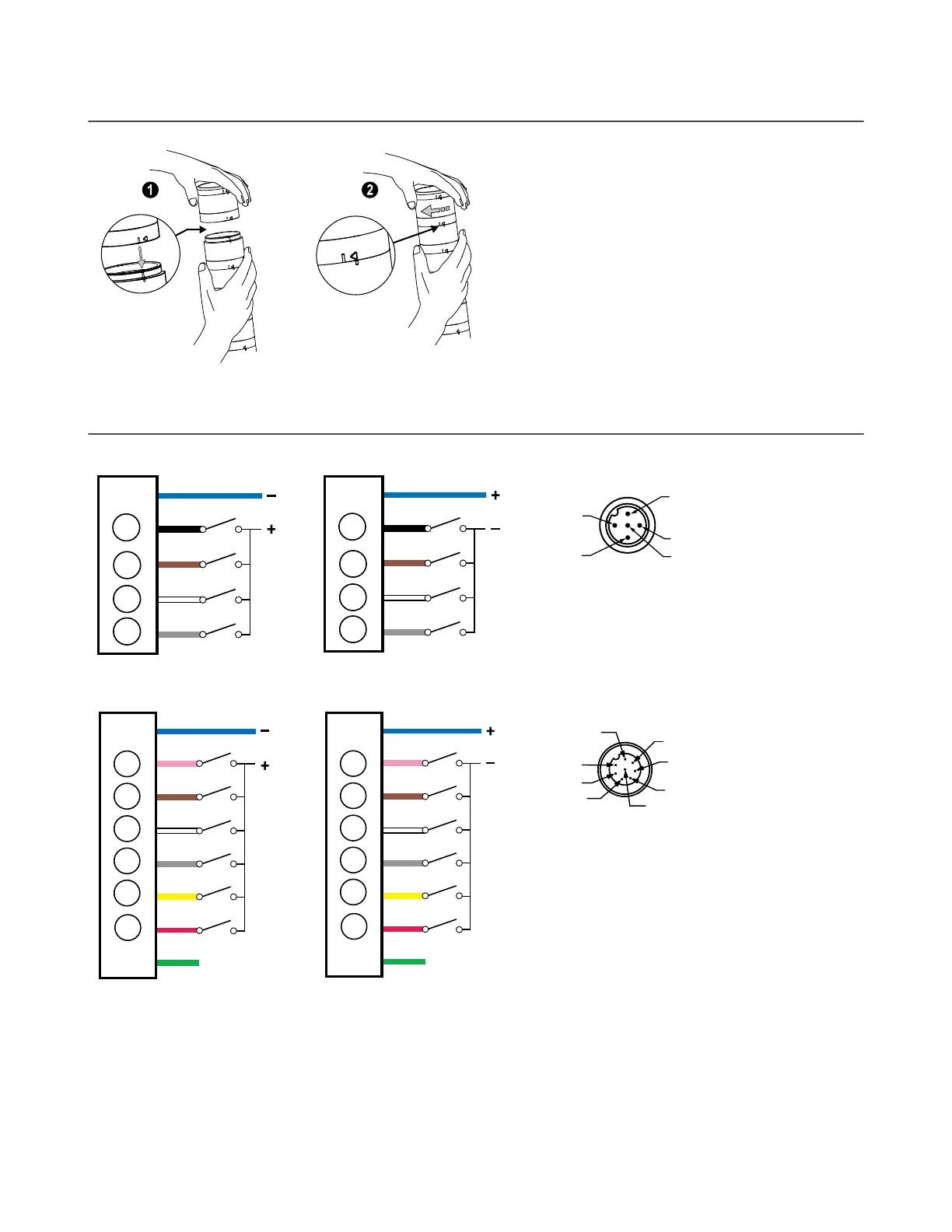

Assembling the Modules
To assemble the modules:
1. Align the notches on each module and press together.
2. Rotate the top module clockwise to lock into place
(notches shown in the locked posion).
Wiring Diagrams
PNP Input
Module
M2
M3
M1
M4
3
4
1
2
5
12–30 V dc
NPN Input
Module
M2
M3
M1
M4
3
4
1
2
5
12–30 V dc
Euro-style Male Pinouts
1
4
5
3
2
Key
1 = brown
2 = white
3 = blue
4 = black
5 = gray
M1 = Module 1
M2 = Module 2
M3 = Module 3
M4 = Module 4
PNP Input
7
6
2
1
5
4
8
3
12–30 V dc
Module
M1
M2
M3
M4
M5
M6
Not Used
NPN Input
7
6
2
1
5
4
8
3
12–30 V dc
Module
M1
M2
M3
M4
M5
M6
Not Used
Euro-style Male Pinouts
5
6
7
1
8
2
3
4
Key
1 = white
2 = brown
3 = green
4 = yellow
5 = gray
6 = pink
7 = blue
8 = red
M1 = Module 1
M2 = Module 2
M3 = Module 3
M4 = Module 4
M5 = Module 5
M6 = Module 6
TL70 Modular Tower Light
2 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 182215 Rev. G
