ECO 40 / 52 / 55
4. OPERATION OF THE STOVE

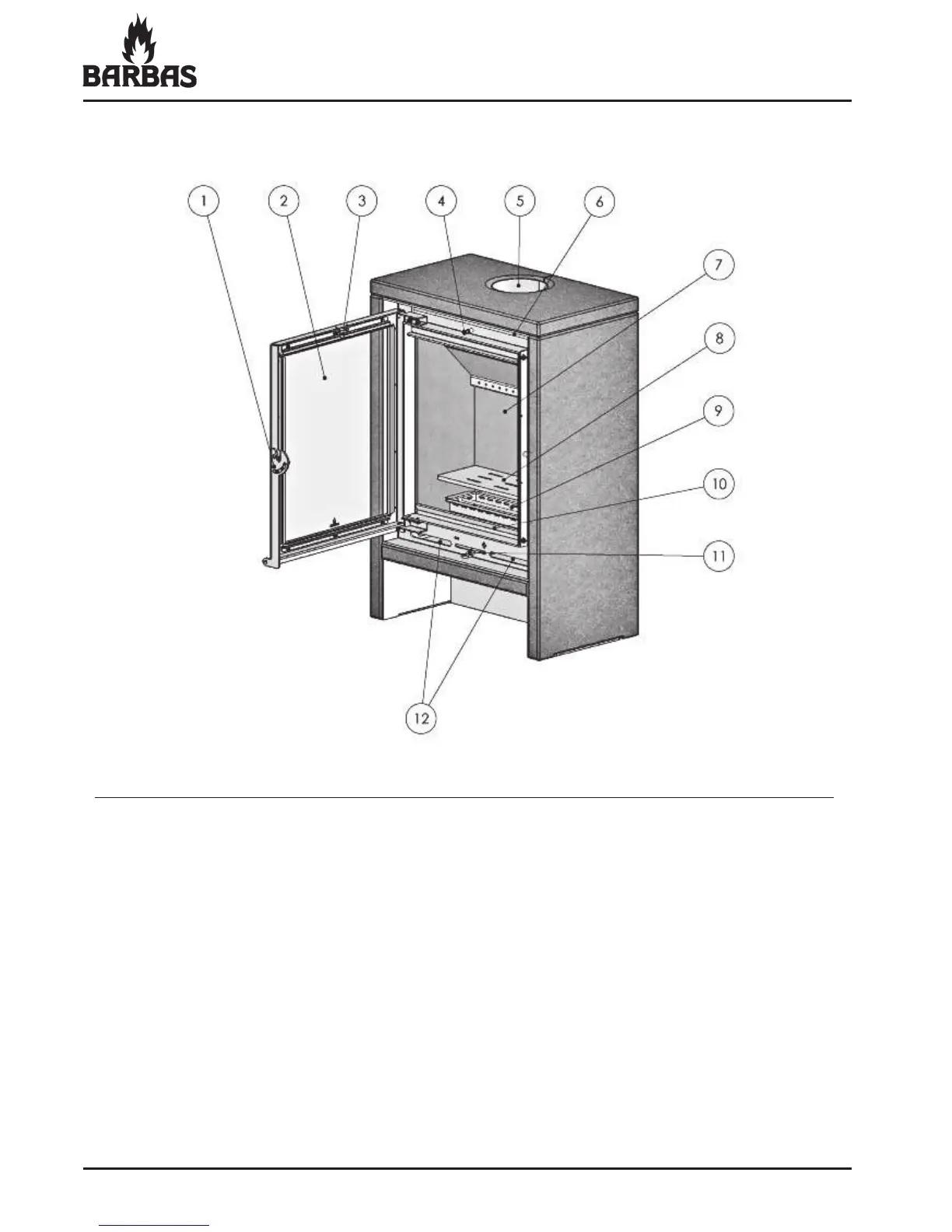

Figure 1: Operation
1 Handle
2 Ceramic heat-proof glass
3 Locking slider for operating pin of • ue gas • ap
4 Operating pin of • ue gas • ap
5 Smoke (• ue gas) outlet Ø150 mm (top/rear connection possibility)
6 Convection air escape opening (permanent)
7 Internal panels (vermiculite plate) / Inner lining
8 Grate / Primary air-supply
9 Ashtray
10 Wood rack
11 Combustion air-supply slider (One combined operation for adjusting all three
air supplies! Primary, Secondary and Tertiary)
12 Intake openings combustion air and convection air
