Technical information
25
Technical information

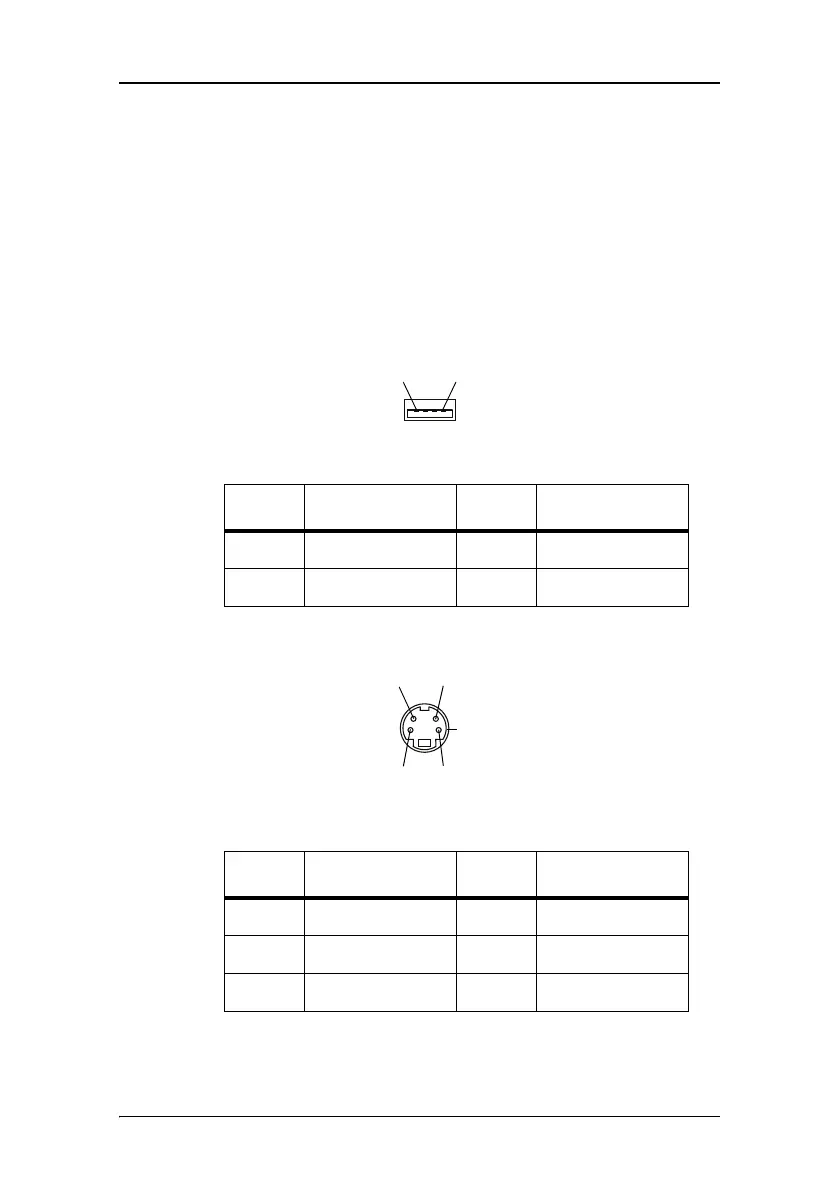

Connector pin assignments
Below is a detailed description of the pin assignments for all multi-pin
connectors.
USB connector:
Figure 9: DVI-I pin layout
S-Video connector:
Figure 10: 4-pin mini DIN pin layout
Pin N° Signal Pin N° Signal
1 +5V POWER 3 DATA +
2DATA - 4GND
Pin N° Signal Pin N° Signal
1 Ground (Y) 4 Chroma (C)
2 Ground (C) SG Shielded Ground
3 Luminance (Y)
1 4
4
2
3
1
SG
