Technical information
26
DVI-I connector:

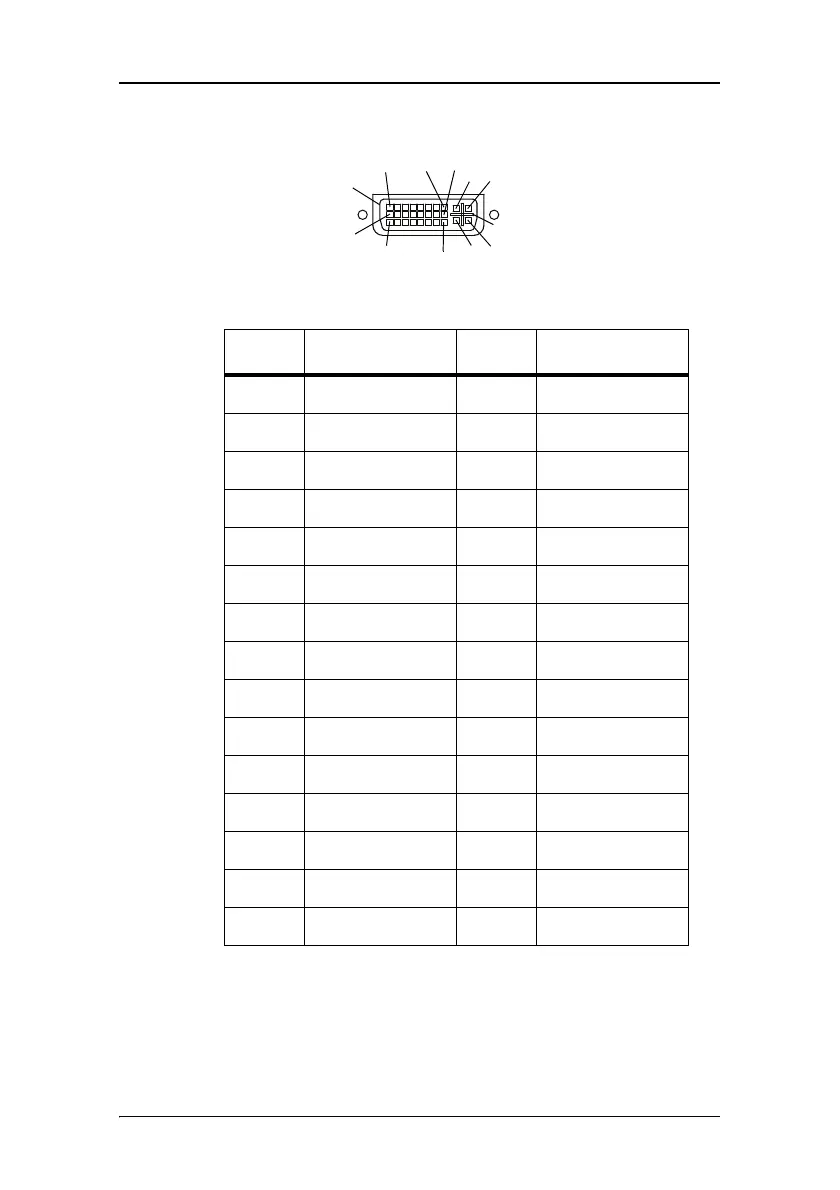

Figure 11: DVI-I pin layout
Pin N° Signal Pin N° Signal
1TMDS DATA 2-16HOT PLUG DETECT
2 TMDS DATA 2+ 17 TMDS DATA 0-
3GND 18TMDS DATA 0+
4NC 19GND
5NC 20NC
6 DDC CLOCK 21 NC
7 DDC DATA 22 GND
8Analog VS 23TMDS CLOCK+
9TMDS DATA 1-24TMDS CLOCK-
10 TMDS DATA 1+ C1 Analog R
11 GND C2 Analog G
12 NC C3 Analog B
13 NC C4 Analog HS
14 +5V POWER C5 Analog Ground
15 GND SG Shielded Ground
18
17
24
C3
9
16
C1
C2
C4
C5
SG
