Technical information
27

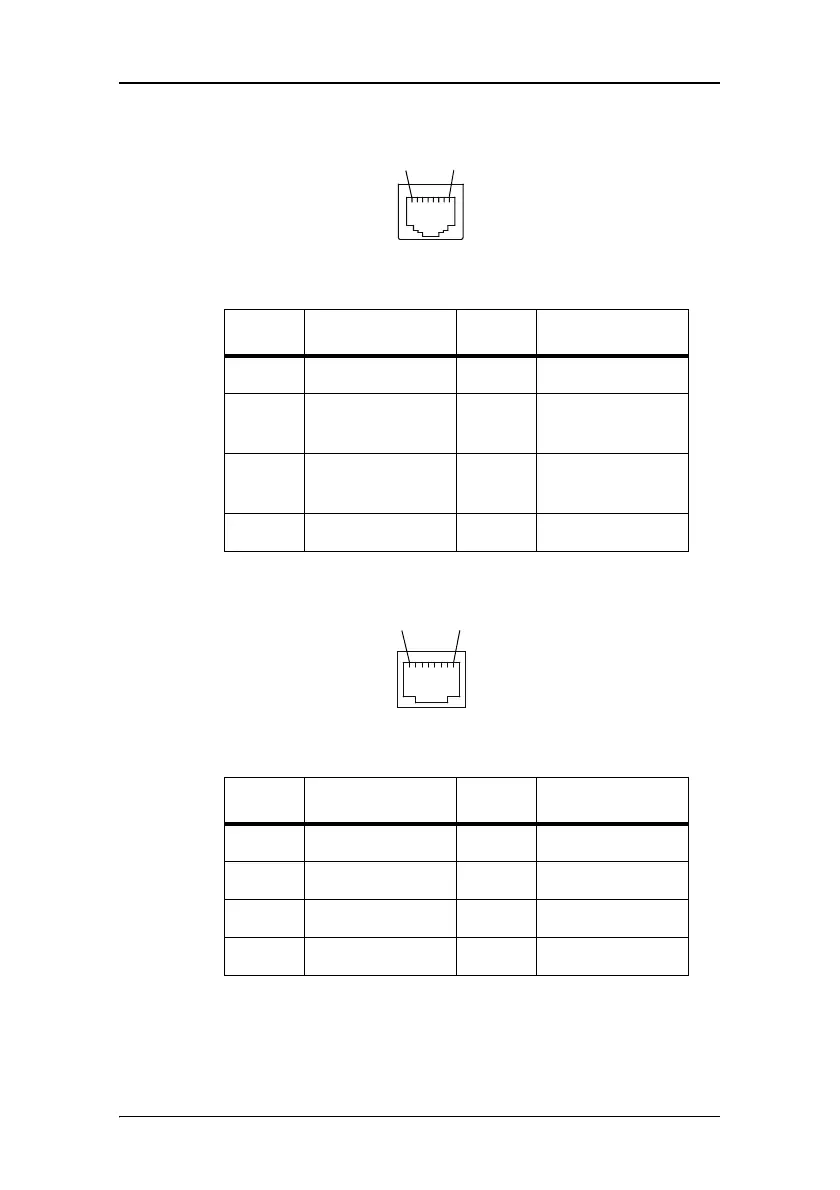

CAT6 connector:
Figure 12: CAT6 pin layout
Ethernet connector:
Figure 13: Ethernet pin layout
Pin N° Signal Pin N° Signal
1TMDS DATA 2+5TMDS DATA 1-
2TMDS DATA 2-6TMDS CLOCK-
(AC)
3 TMDS CLOCK+
(AC)
7TMDS DATA 0+
4TMDS DATA 1+8TMDS DATA 0-
Pin N° Signal Pin N° Signal
1 Transmit data + 5 NC
2 Transmit data - 6 Receive data -
3 Receive data + 7 NC
4NC 8NC
