D-Sub (VGA) 15 connector:

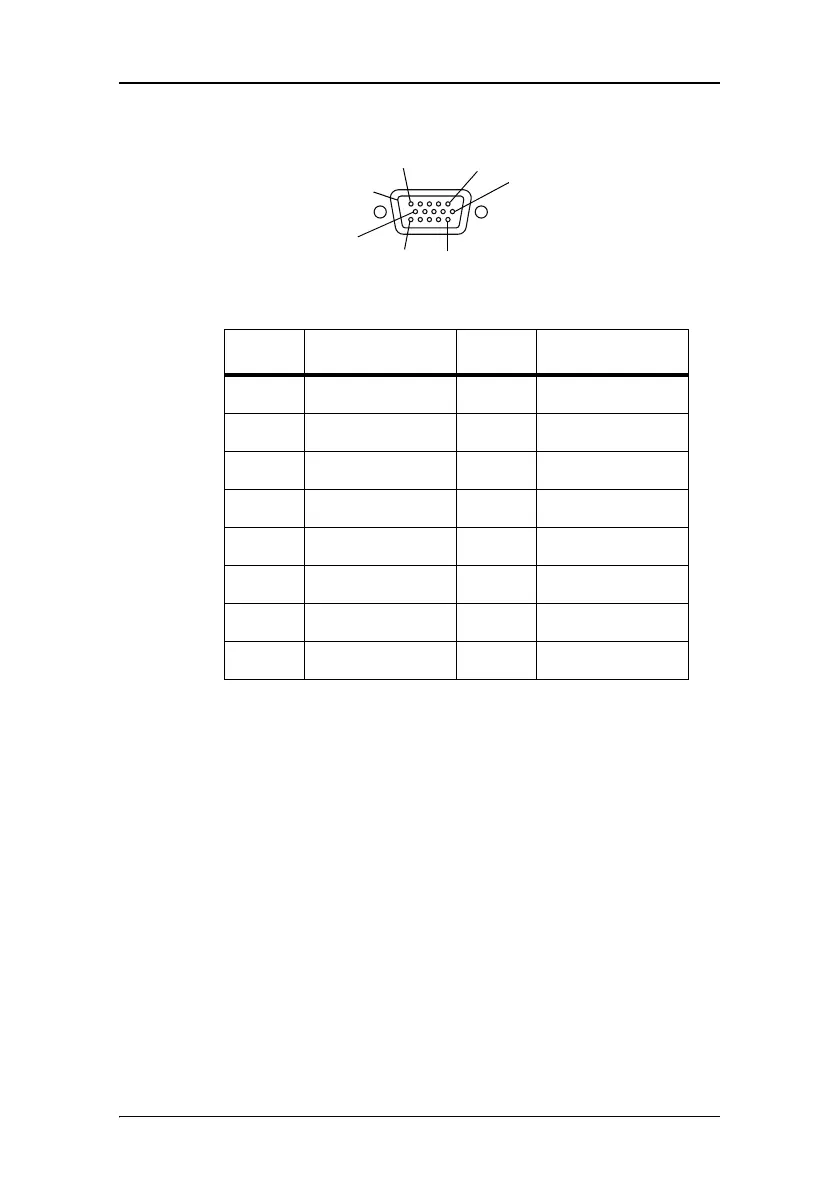

Figure 14: D-Sub 15 pin layout
Pin N° Signal Pin N° Signal
1Red in 9DDC 5V IN
2 Green in 10 VGA PRES
3Blue in 11NC
4 NC 12 DDC SDA
5GND 13HS IN
6GND 14VS IN
7 GND 15 DDC SCL
8 GND SG Shielded Ground
5
15 11
10
1
6
SG
