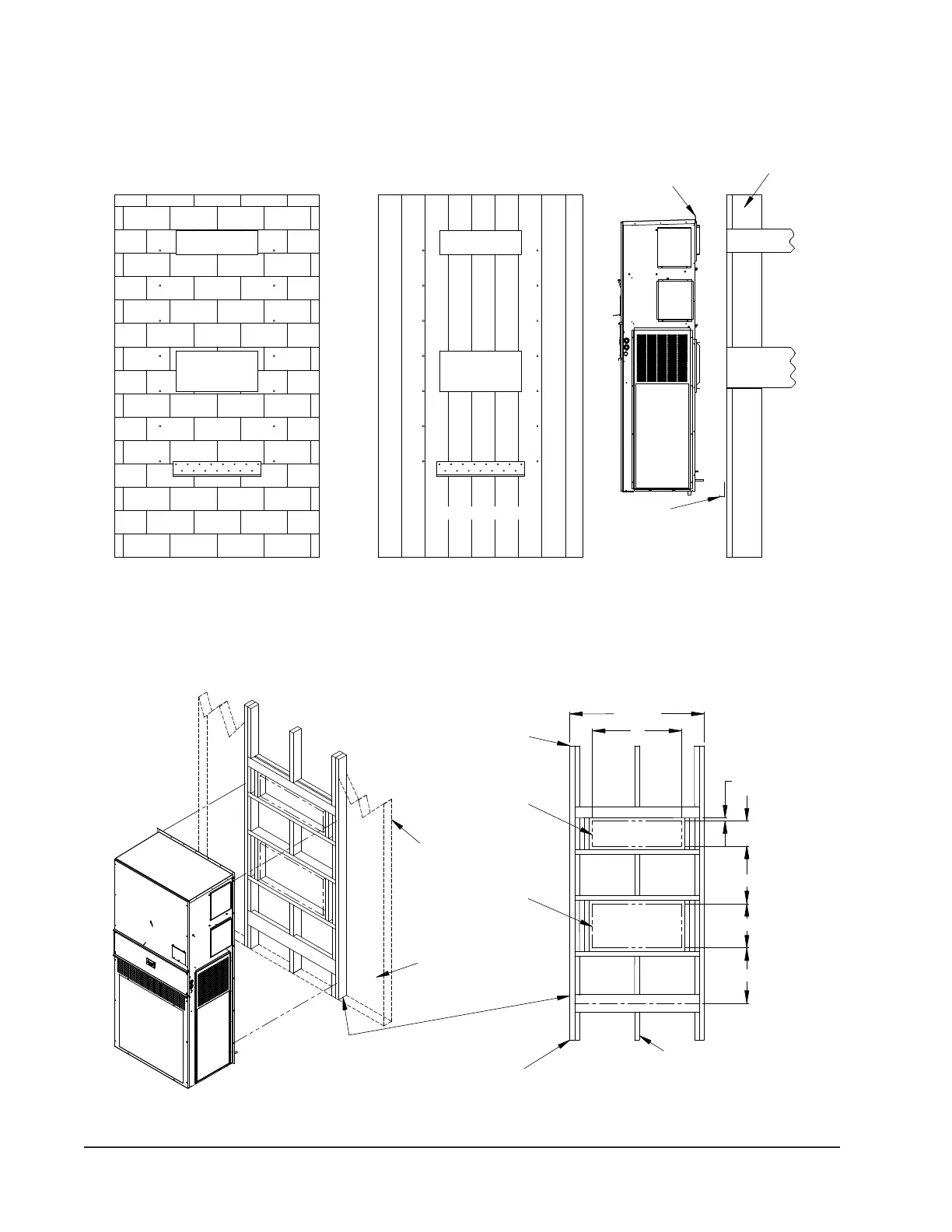

FIGURE 16
Wall Mounting Instructions
FIGURE 17
Wall Mounting Instructions
A
I
K
E + 1.000
B
1.000
C
FRAMING MATERIAL
2 x 4'S, 2 x 6'S &/OR
OPENING
SUPPY DUCT
OPENING
INTERIOR FINISHED WALL
OVER FRAME
EXTERIOR FINISH WALL
OVER FRAME
ATTACH TO BOTTOM
PLATE OF WALL
1.000" CLEARANCE
ALL AROUND DUCT
ATTACH TO TOP
PLATE OF WALL
1.000" CLEARANCE
STRUCTURAL STEEL
ALL AROUND DUCT
THIS STRUCTURAL MEMBER
LOCATED TO MATCH STUD
SPACING FOR REST OF WALL.
A SECOND MEMBER MAY BE
REQUIRED FOR SOME WALLS.
RETURN DUCT
MIS-3982 B
SEE UNIT DIMENSIONS,
FIGURE 13, FOR
ACTUAL DIMENSIONS
See Figure 14 Mounting Instructions
OPENING
CONCRETE BLOCK WALL INSTALLATION
RETURN AIR
WOOD FRAME WALL INSTALLATION
INSTALLING UNIT.
WALL BEFORE
BRACKET. MOUNT ON
BOTTOM MOUNTING
BEFORE INSTALLATION
MOUNT ON UNIT
WALL STRUCTURE
OPENING
SIDE VIEW
WOOD OR STEEL SIDING
FACTORY SUPPLIED
RAIN FLASHING.
SUPPLY AIR
MIS-3981 B
