2. General Information and Ratings
This chapter contains information about the E3 drive including how to identify the drive.

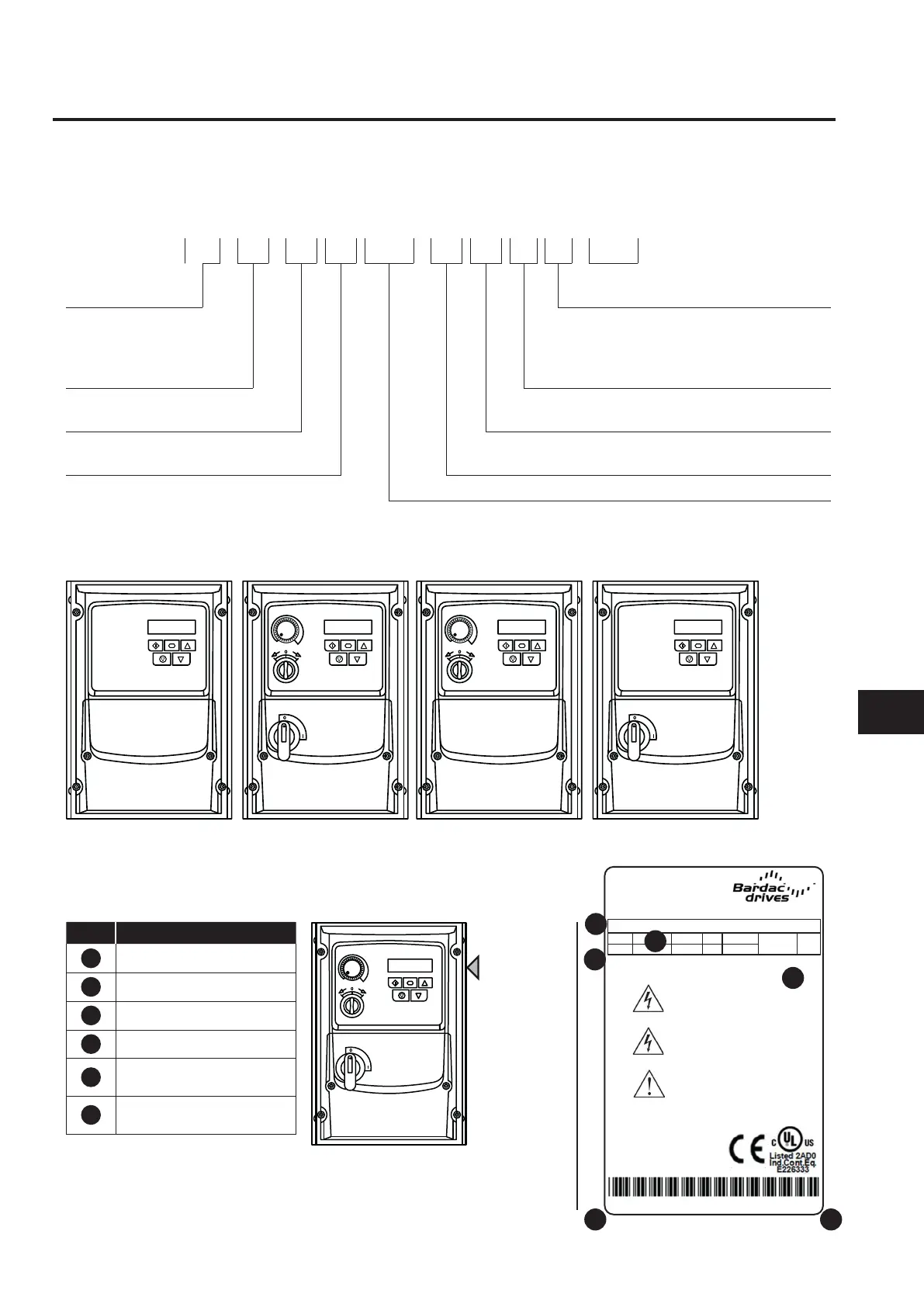

2.1. Identifying the Drive by Model Number
Each drive can be identified by its model number, as shown in the table below. The model number is on the shipping label and the
drive nameplate. The model number includes the drive and any options.
E - 3 - 1 2 0021 - 1 F 1 A - EIP
Additional
Option
1 = Not Fitted
4 = Internal Transistor
Product Family IP Rating
A = IP66 Non Switched
B = IP66 Switched
C = IP66 with local controls
E = IP66 with switch-disconnector
Generation Dynamic Brake
Transistor
1 = Not Fitted
4 = Internal Transistor
Frame Size Filter Type 0 = No Filter
F = Internal EMC Filter
Input Voltage 1 = 110 – 115 No. Of Input Phases
2 = 200 – 240
4 = 380 – 480
Output Current x 10
2.2. IP66 Drive Variants
A = IP66 Non Switched
B = IP66 Switched
C = IP66 with local controls E = IP66 with switch-disconector
2.3. Understanding the Rating Label
The product rating label provides the following information
Proposed
E3 Series
Variable Frequency Drive
IP66 / NEMA 4X
Serial No.: 11111111111 S/W : V3.09 10022021
E3-11023-101B
Input 200 – 240V 50/60Hz 1Ph 7.5A IE2%
Output 0 – Vin 0-500Hz 3Ph 2.3A 2
0.75kW /
1HP
CAUTION
Power down for 10 minutes
before removing cover
Read User Guide before
installation or servicing
Risk of Electric Shock
Max Amb, 40° CMade in the UK
SCCR: For rating and protection refer to User Guide
AVERTISSMENT
Risque du choc electrique
Une Tensin dangereuse peut etre
presentee jusqu a 10 mins avoir
coupe l’alimentation
IDL: ODE-3-110023-101B
Made in the UK By Invertek Drives
www.Bardac.com
Key
On right hand
side when
viewed from
the front.
1 Model Code
2 Enclosure Type and IP Rating
3 Firmware Version
4 Serial Number
5
Technical Data – Supply
Voltage
6
Technical Data – Maximum
continuous output current
General Information & Ratings
2
2
5
1
6
34
