Bardiani ZQ - Page 15

The Company BARDIANI VALVOLE reserves the right to modify its products at any time without prior notice.
(GB-IST-ZQ-0413) 15/36

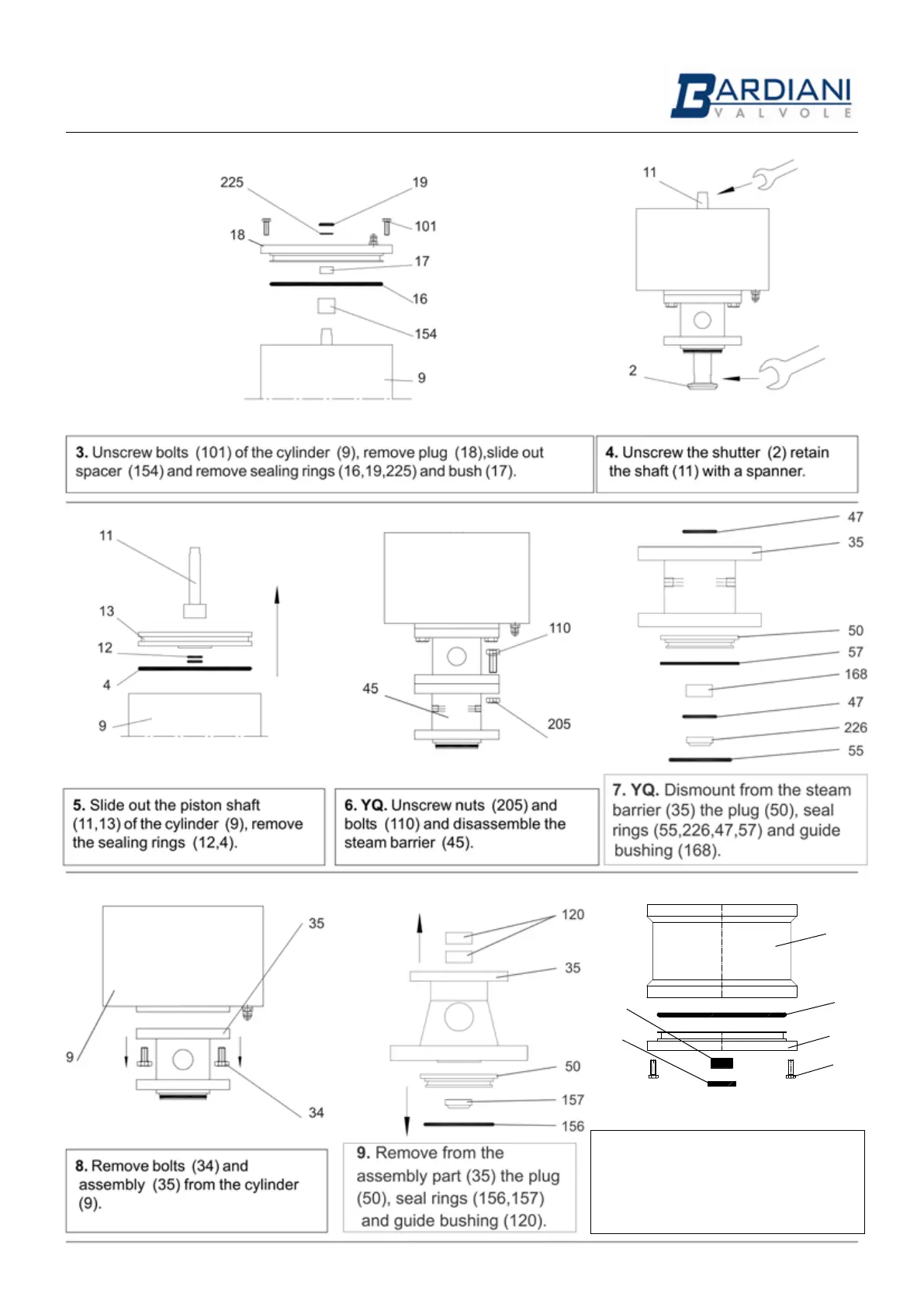

11. Disassembly of ZQ-YQ (cyl.207--360)
10. Remove the screw (101) and
the lower cylinder cap (150) to the
cylinder (9). Remove to the lower
cylinder cap (150) the seal rings (16
and 6) and the guide bushing (10).
9
16
150
101
10
6
