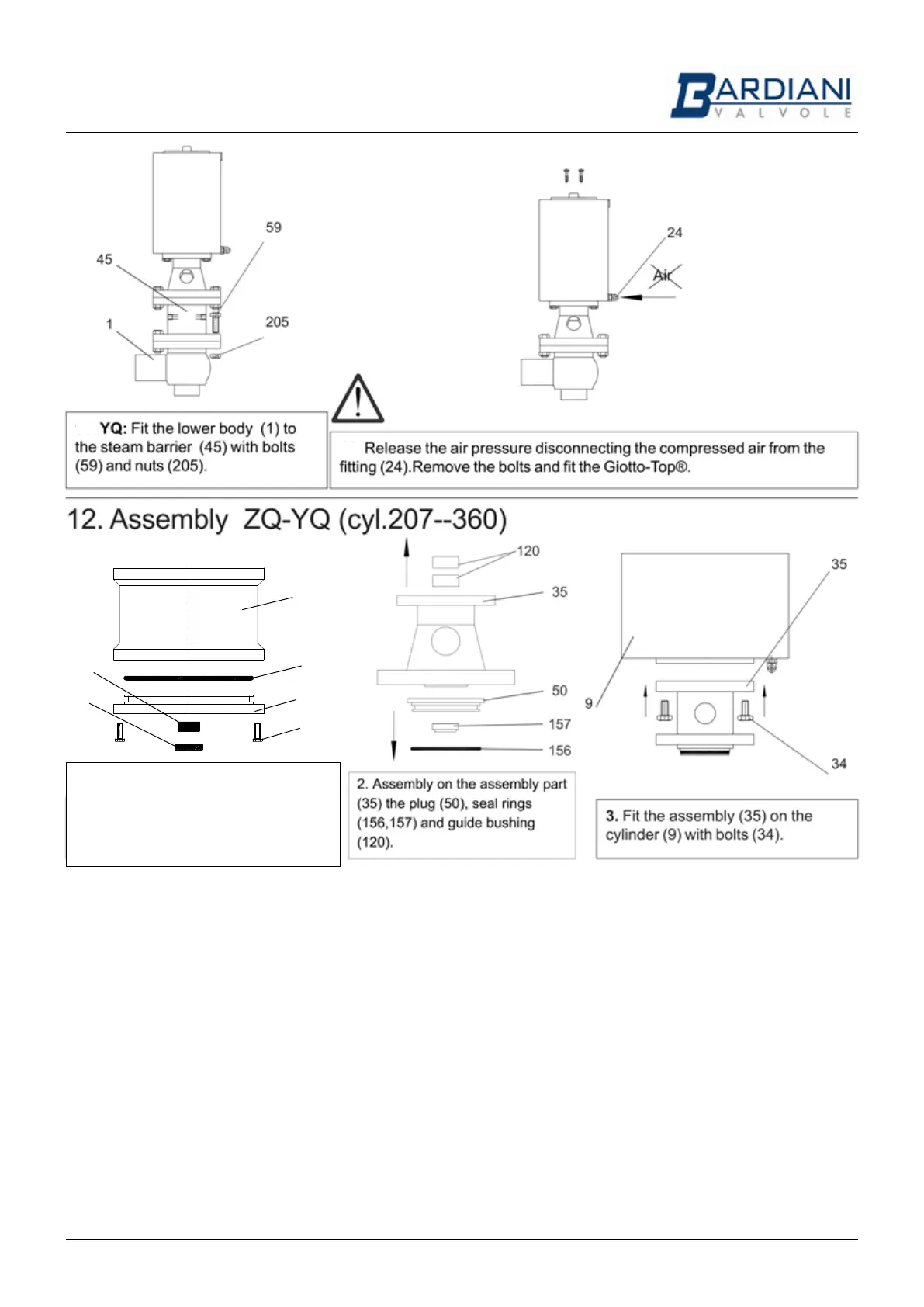

12. Assembly of ZQ-YQ (cyl.108--130)
10.
11.
1. Asembly on the lower cylinder cap
(150) seal ring (16 and 6) and guide
bushing (10). Insert the lower cylinder
cap (150) in to the cylinder (9) with the
screw (101).
9
16
150
101
10
6
