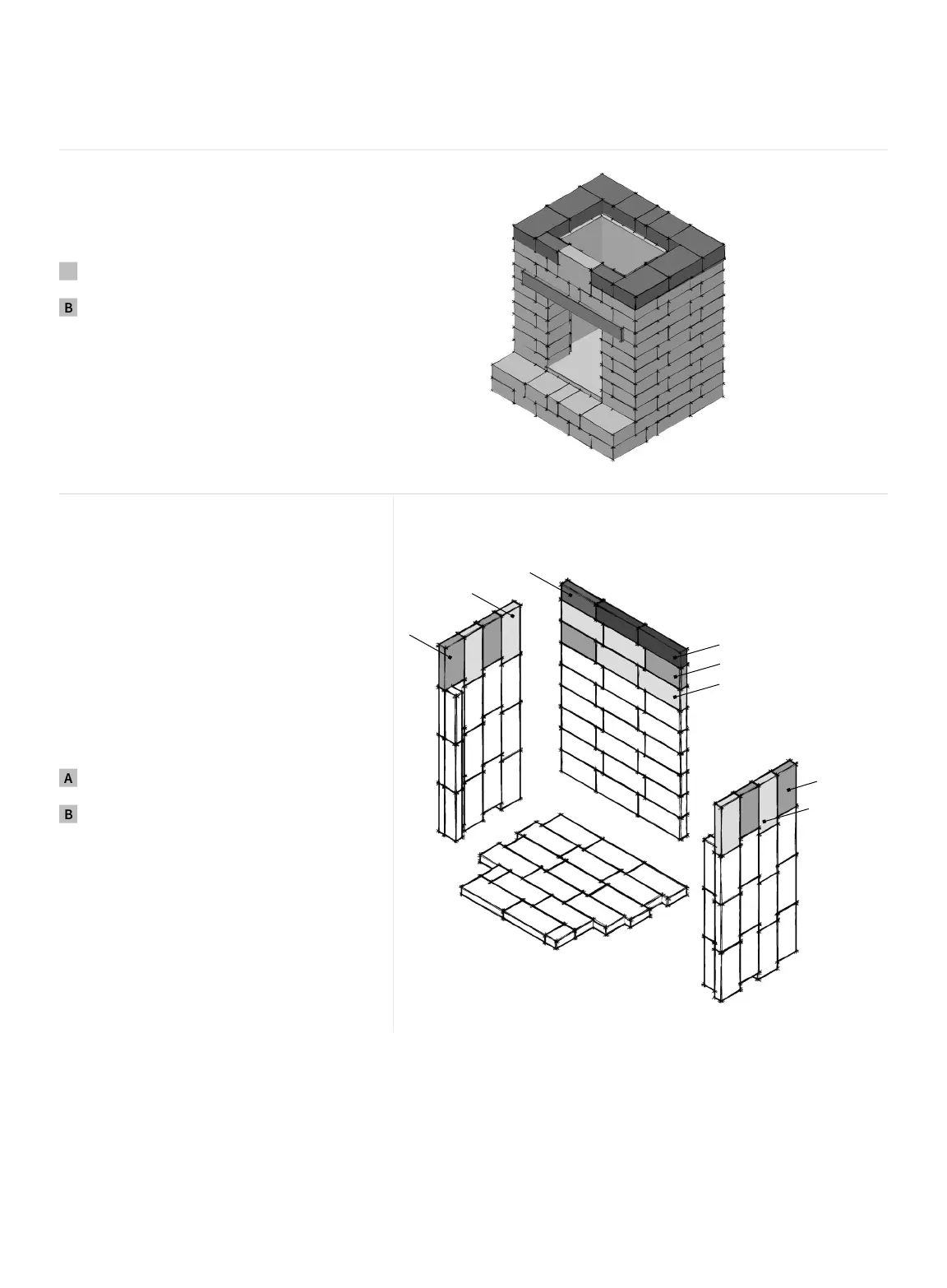

A Lay down the twelh layer as shown
in the diagram.
B Check that stones are level at
every step. Use included shims for
adjustments.
USE:
(6) 12 x 8 Sierra Grey blocks
(2) 8 x 8 Sierra Grey blocks
(3) 4 x 8 Sierra Grey blocks
12
A Place and glue the remaining pieces
of the firebox.
B Double check if all the pieces are
completely flushed against the inside
wall of the fireplace.
USE:
(1) 7.5 x 2.75 Fire Bricks
(2) 7.5 x 4 Fire Bricks
(4) 7.75 x 4 Fire Bricks
(2) 9 x 2.75 Fire Bricks
(8) 9 x 4 Fire Bricks
9" x 4"
9" x 4"
7.75" x 4"
7.5" x 4"
9" x 2.75"
7.5" x 2.75"
9" x 4"
7.75" x 4"
