ASSEMBLY INSTRUCTIONS
INSTALLING FEET

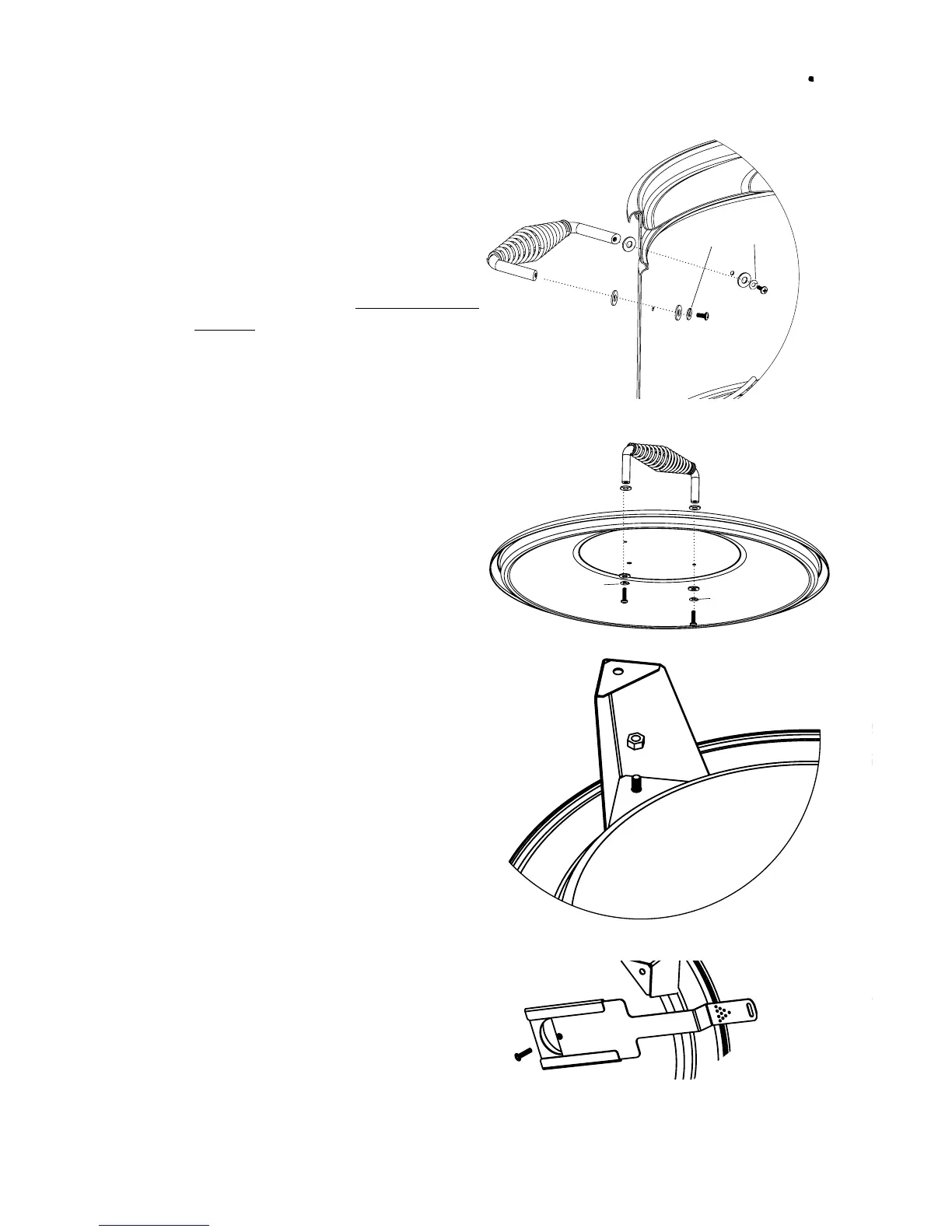

1. Align handle (with angled ends)
and washers on outside of barrel.
2. From inside barrel, angle & insert
screws with a at washer on both sides
and lock washer closest to the screw head.
Be sure to tighten well.
1. Align handle (with at ends)
and washers to holes on top of lid.
2. From underside of lid, attach
handle with washer, lock washer
and screw. Tighten well.
1. The wider side of the feet sit on the
under side of the base.
2. Set the foot on base aligning it with
a threaded stud.
3. Thread 10mm nut on to stud.
Do not over tighten.
INSTALLING SIDE HANDLES
INSTALLING TOP HANDLE
INSTALLING DAMPER
1. Slide damper into damper keeper on
the bottom of the base with the
angled step going upward.
2. Thread screw all the way in while
damper is half open. The screw
does not actually attach to anything
other than the damper slider. It sim-
ply prevents slider from being pulled
out too far
NOTE: ONLY USE INCLUDED 3/4" WIDE WASHERS.
NOT SMALLER WASHERS THAT MAY BE INCLUDED.
Lock Washer
Lock Washer
Lock Washer
To Next Page
