Barrette ELEVATION - Page 2

2
Tape Measure
Level
Drill
Safety Glasses
Masonry Drill Bit
Phillips Screwdriver
Chalk Line
7
⁄
7
⁄
7
16
⁄16⁄
" and
1
⁄
1
⁄
1
8
⁄8⁄
" Drill Bits
Pencil
9
⁄
9
⁄
9
16
⁄16⁄
" Socket for Drill
Felco Type Cable Cutter
Ruler
Rubber Mallet
Clamps
Hacksaw or Chopsaw
3/8" diameter galvanized bolts with nuts
(for Deck/Wood)
3/8" Masonry Anchors (for Concrete)
#10x 3 1/2" Deck Screws (For Deck/Wood)
TOOLS/MATERIALS NEEDED:
WARNING:
• Improper installation of this product can result in personal injury. Always wear safety goggles when
cutting, drilling and assembling the product.
• Incorrect installation may cause harm to the product or individual.
• Refer to local building codes for installation requirements; failure to install this product in accordance
with building codes may affect safety of the product and void product warranty
NOTICE:
• DO NOT attempt to assemble the kit if parts are missing or damaged.
• DO NOT return the product to the store. For assistance or replacement parts call: 1-877-265-2220.
FASTENERS NEEDED:
Depending on Installation Method
(Sold Separately)
To obtain and review a copy of the warranty please visit barretteoutdoorliving.com.
You may also contact us at 1-877-265-2220 or email CS.outdoorliving@barretteoutdoorliving.com.

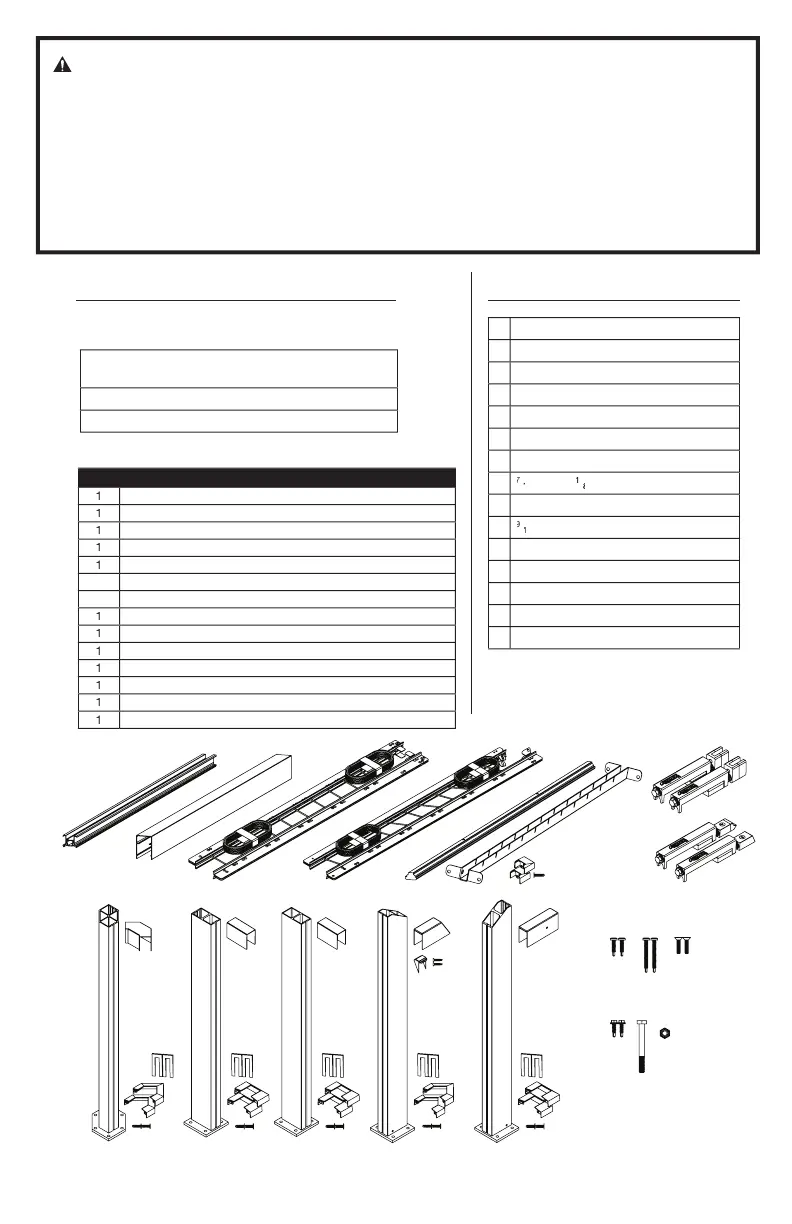

Components:
QTY. Description
1
Top Beam – (A)
1
Top Rail – (B)
1
Level Cable Guide – (C)
1
Stair Cable Guide – (D)
1
Center Support Cover, Center Support, Trim Ring – (E)
2
Level Tensioners – (F)
2
Stair Tensioners [A & B] – (G)
1
Level Corner Post, Cap, Trim Ring, Shims – (H)
1
Level Line Post, Cap, Trim Ring, Shims – (I)
1
Level End Post, Cap, Trim Ring, Shims – (J)
1
Stair End Post, Cap, Cap Adapter, Trim Ring, Shims – (K)
1
Stair Line Post, Cap, Trim Ring, Shims – (L)
1
Level Kit Screw Pack – (M)
1
Stair Kit Screw Pack – (N)
A.
B.
C.
D.
F.
E.
G.
H.
I.
K.
L.
M.
N.
J.
