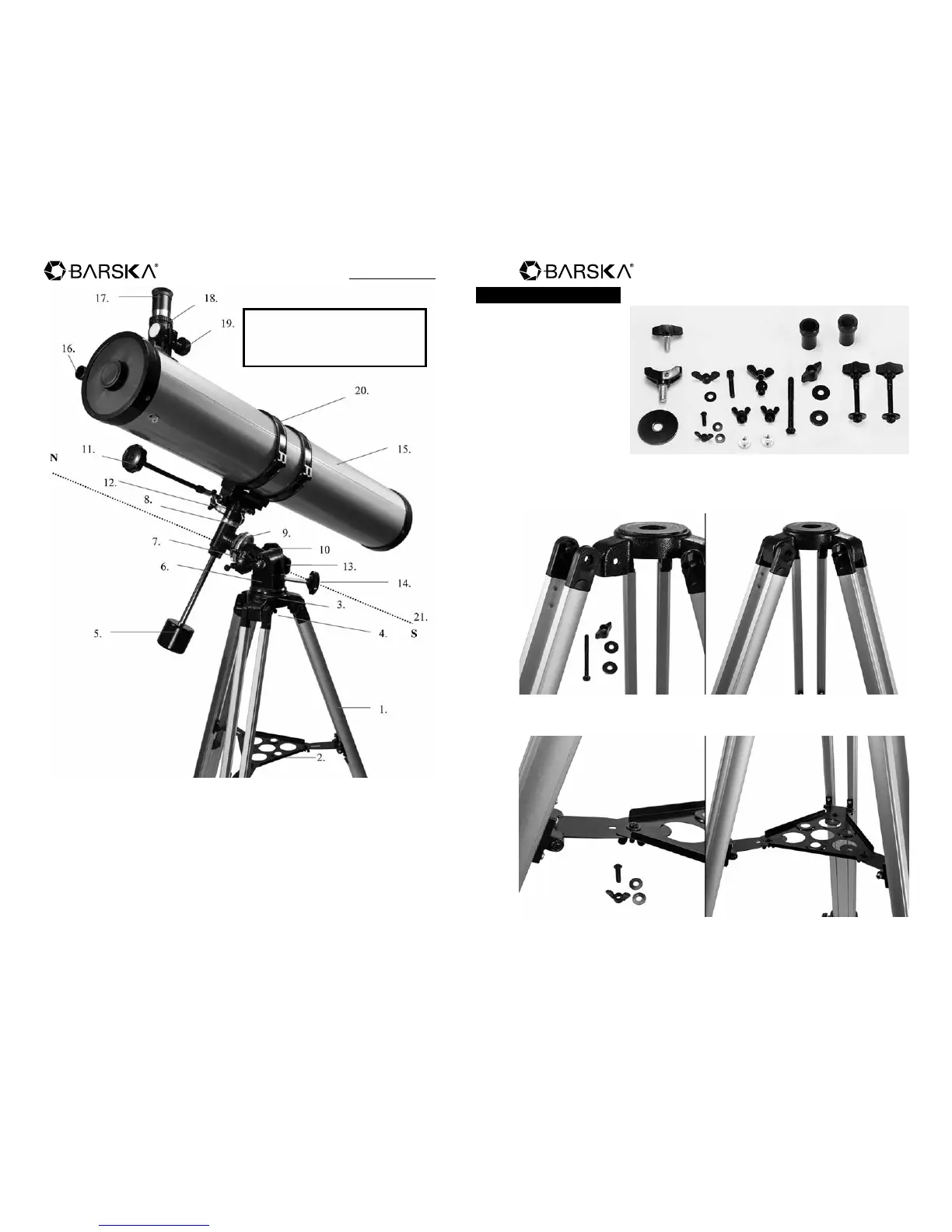

Setup Instructions
Included Screws:
1. Attach the Tripod Leg x 3 to the Tripod Connector with the 3 screws. Screw
is shown in the picture on the left. Should look like picture on the right
when nished.
2. Attach the Tripod Leg x 3 to Accessory Tray with the 3 screws. Screw is shown
in the picture on the left. Should look like picture on the right when nished.
2
675 Power, 900114 Starwatcher Telescope
675 Power, 900114 Starwatcher Telescope
3
CAUTION: DO NOT LOOK DIRECTLY
AT THE SUN. VIEWING THE SUN
OR ANY LIGHT SOURCE WITH THIS
OPTICAL DEVICE CAN CAUSE
PERMANENT EYE DAMAGE.
1. Tripod Leg 12. Polar Axis Lever
2. Accessory Tray 13. Declination Axis Clamp
3. Tripod Connector 14. Declination Axis Lever
4. Horizontal Axis Lever 15. Telescope Main Body
5. Counterweight 16. Finder Scope
6. Equatorial Mount 17. Eyepiece
7. Latitude Scale 18. Focus Tube
8. Longitude Scale 19. Focus Knob
9. Latitude Lever 20 Telescope Mounting Ring
10. Short Control Cable 21. Telescope Polar Axis
11. Long Control Cable
