BARTEC Operational Instructions – Control and signal device actuators and accessories
Note on instructions
When working in hazardous areas, the safety of personnel,
environment and equipment depends on compliance with the
relevant safety regulations. The people in charge of installation
and maintenance bear a special responsibility. It is essential
that they have an exact knowledge of the applicable rules and
regulations.
The instructions provide a summary of the most important
safety measures and must be read by every one working with the
product so that they will be familiar with the correct handling of
the product.
The instructions have to be kept for future reference and must
be available throughout the expected life of the product.
Description
For the ComEx modules type 07-33**-****/**** there are a
large number of control and signal device actuator are available
in different versions. All control and signal device actuator are
made of high-quality thermoplastic and can be used in almost
all potentially explosive areas.
The Control and signal design devices enables easy and safe
mounting and can be complemented by useful accessories. The
components are developed and certified for global hazardous
areas.

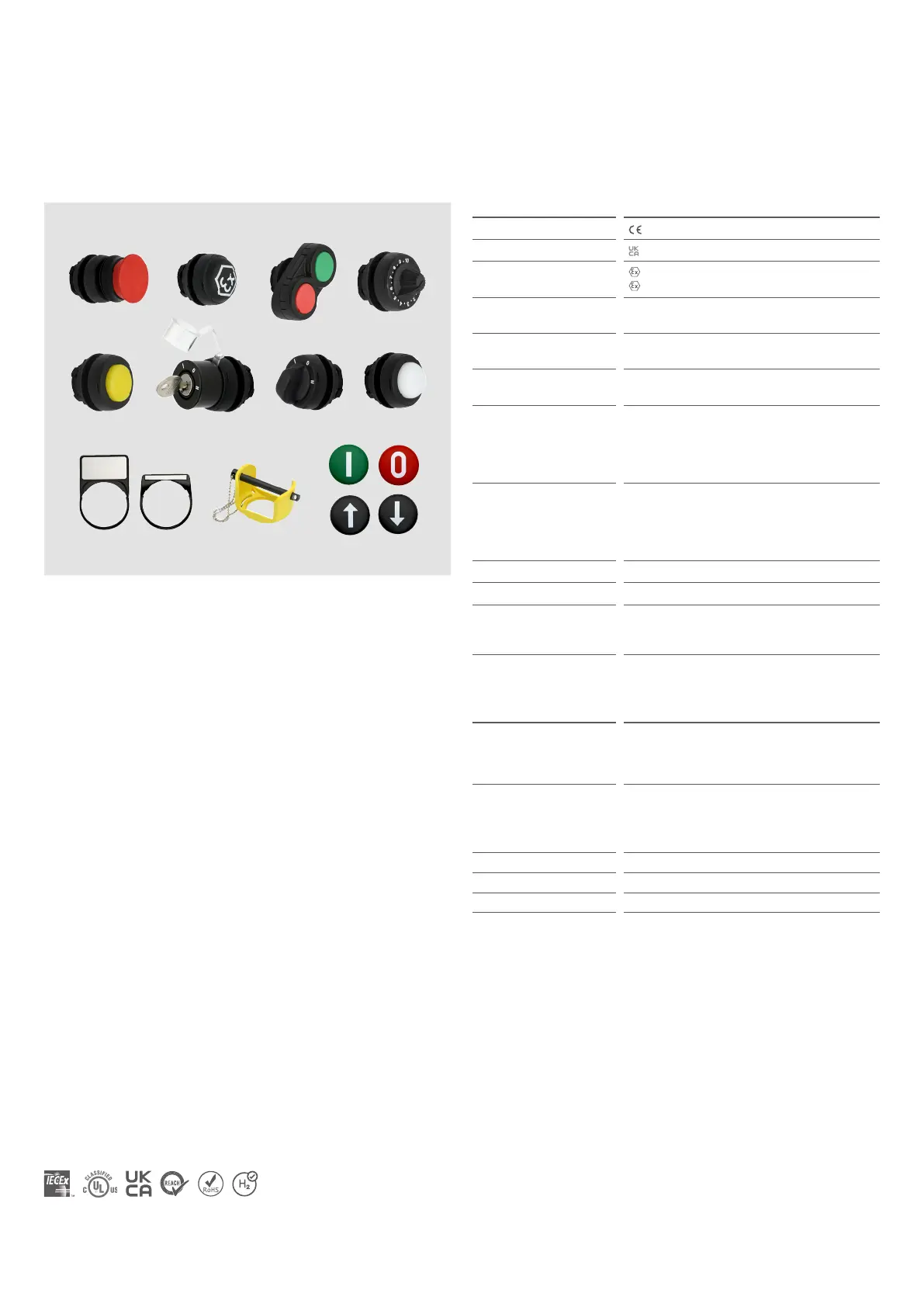

Control and signal device actuators and accessories
Type 07-3400-****/****
Explosion protection
Technical data
Notified Body Number
0044
Approved Body Number 2503
ATEX/UKEX
Ex protection type
II 2G Ex eb IIC Gb
II 2D Ex tb IIIC Db
ATEX/UKEX
Certification
CML21 ATEX31132U
CML22 UKEX3332U
IECEx
Ex type of protection
Ex eb IIC Gb
Ex tb IIIC Db
IECEx certificate
number
IECEx CML 21.0128U
CEC (UL Mark) Ex eb IIC Gb
Ex tb IIIC Db
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F, G
Class III, Division 2
CEC (UL Mark) Class I, Zone 1, AEx eb IIC Gb
Zone 21, AEx tb IIIC Db
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F, G
Class III, Division 2
UL certifacte number UL E184198
Operating temperature -40 °C to +70 °C (-40 °F to +158 °F)
Service temperature -55 °C to +70 °C (-67 °F to +158 °F)
(related to explosion protection
acc. to EN IEC 60079-0)
For further approvals and certificates, see www.bartec.com
Degree of protection Up to IP67 acc. to EN 60529 and NEMA 4X
acc. to UL 50E. Requires correct installation
in in a mounting hole on an enclosure with
appropriate degree of protection.
Mounting
– Installation in enclosures with a wall
thickness of 1mm to 6 mm (0.04 in to 0.24 in)
– Suitable for through-holes 30.3 mm (1.19 in)
– Torque fixing nut 2.8 to 3.4 Nm
Mechanical risk level High
Dimensions See selection chart on page 3
Weight See selection chart on page 3
