BARTEC Operational Instructions – Control and signal device actuators and accessories

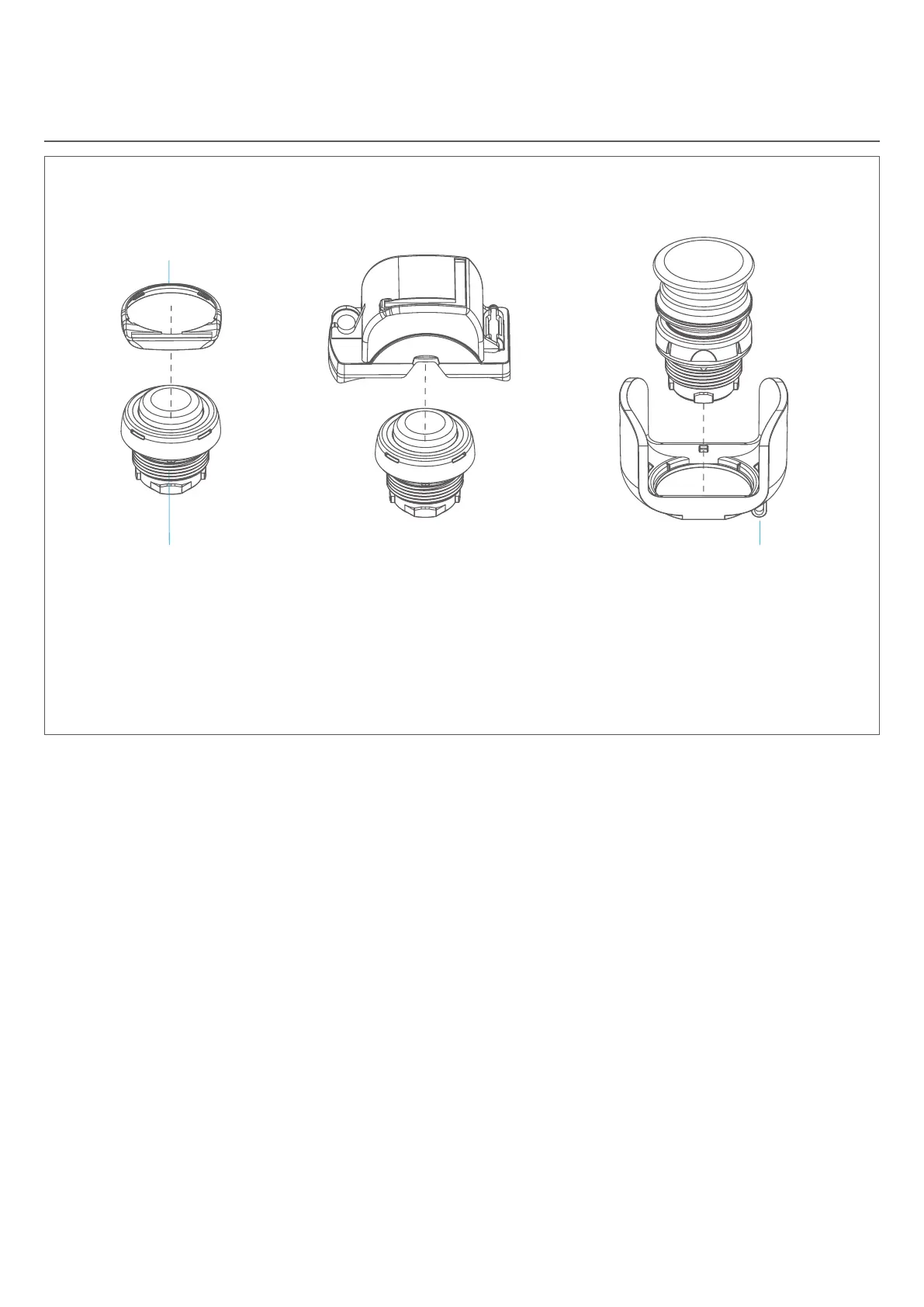

When mounting, first hook the marking clip/
shield holder into the attachment from above
on the marked side and then latch it into place
by pressing it into the opposite side. Note the
position relative to the anti-rotation device.
Marking clip/Shield holder
Attach the holding frame of the locking device
to the application housing from above. Note the
position relative to the anti rotation protection.
Locking device
Push the protective collar onto the application
housing from below. Note the position relative to
the anti rotation protection.
Protective collar
Start of
installation
Position of
the anti-twist
protection
Optional:
Attachment of the latch
with ball chain. Thread
the ball chain through and
close the clamp closure
Mounting information
