Handscanner
BCS 3600
ex
series
4 Product description
Subject to technical modifications
Revision A / 04/2019
23 / 106
4.2.4 Bluetooth hand-held scanners BCS 3678
ex
-NI / BCS 3678
ex
-IS with base station and
Bluetooth-enabled device

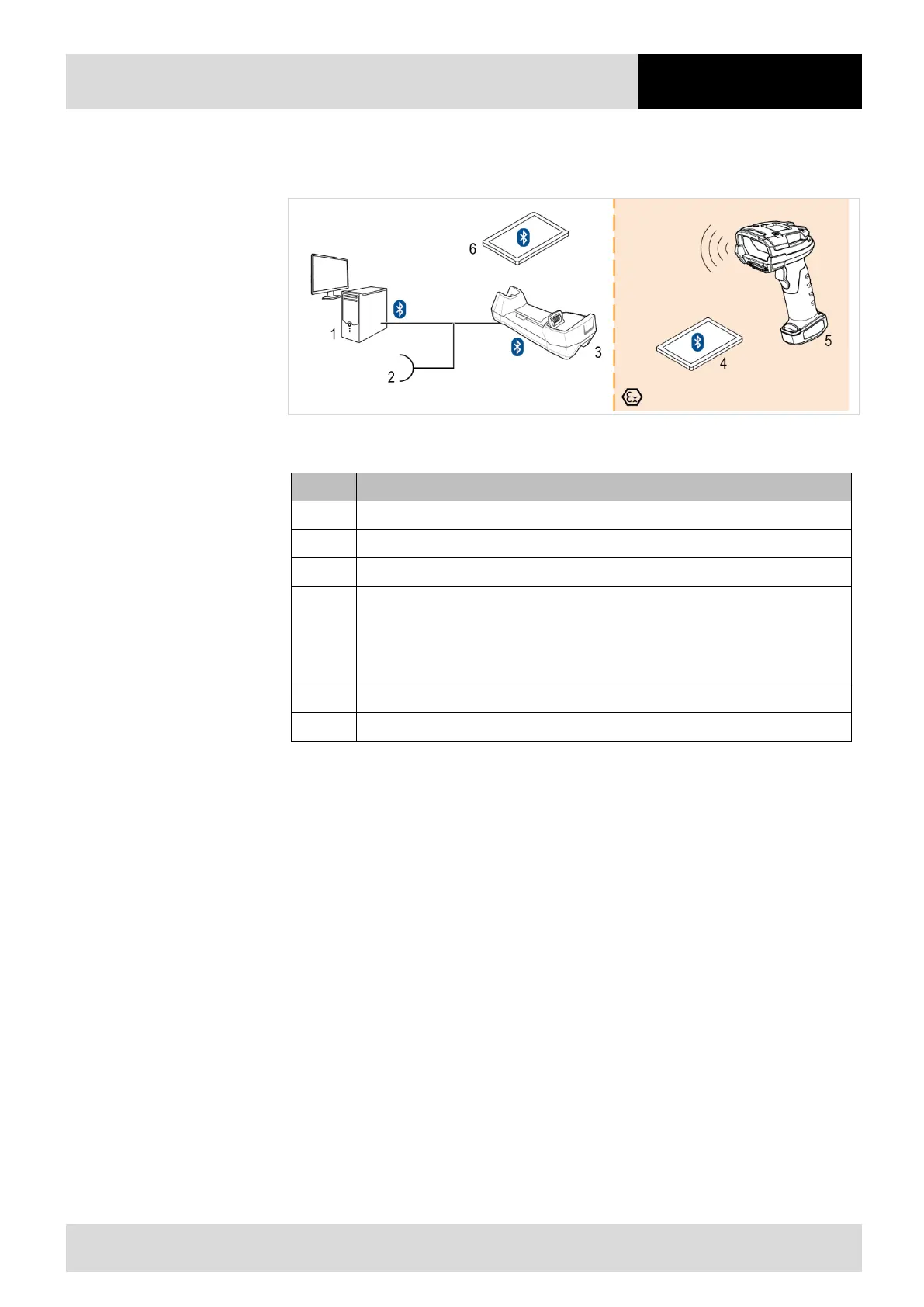

Figure 5 Bluetooth hand-held scanner BCS 3678
ex
-NI / BCS 3678
ex
-IS with base station (cradle) and Bluetooth-
enabled device
Pos.
Description
1
Host PC
2
Power supply (12 V
DC
)
3 Base station (Cradle) only for the use in safe areas
4 Bluetooth-enabled device (approved for a potentially explosive atmosphere):
• Agile X IS for Zone 1/21 / Division 1
• Agile X for Zone 2/22 / Division 2
• TC 7x series for Zone 2/22 / Division 2
5
Bluetooth hand-held scanner BCS 3678
ex
-NI / BCS 3678
ex
-IS
6 Bluetooth-enabled device (outside the potentially explosive atmosphere)
Table 17 Description of the needed components to build the connection between BCS 3678
ex
-NI / BCS 3678
ex
-
IS Bluetooth hand-held scanners with base station and Bluetooth-enabled device
The BCS 3678
ex
-NI / BCS 3678
ex
-IS Bluetooth hand-held scanners can optionally communicate with
the following devices:
‒ Outside the potentially explosive atmosphere:
– Host PC (1)
– Bluetooth-enabled base station (3)
– Bluetooth-enabled device (6)
‒ In the potentially explosive atmosphere (4):
– Agile X IS for Zone 1/21 / Division 1
– Agile X for Zone 2/22 / Division 2
– Other devices approved for explosion-proof certified devices
