4 Product description
Subject to technical modifications
Revision A / 04/2019
25 / 106
4.3 Corded hand-held scanners BCS 3608
ex
-NI/BCS 3608
ex
-IS
4.3.1 Construction of the corded hand-held scanners

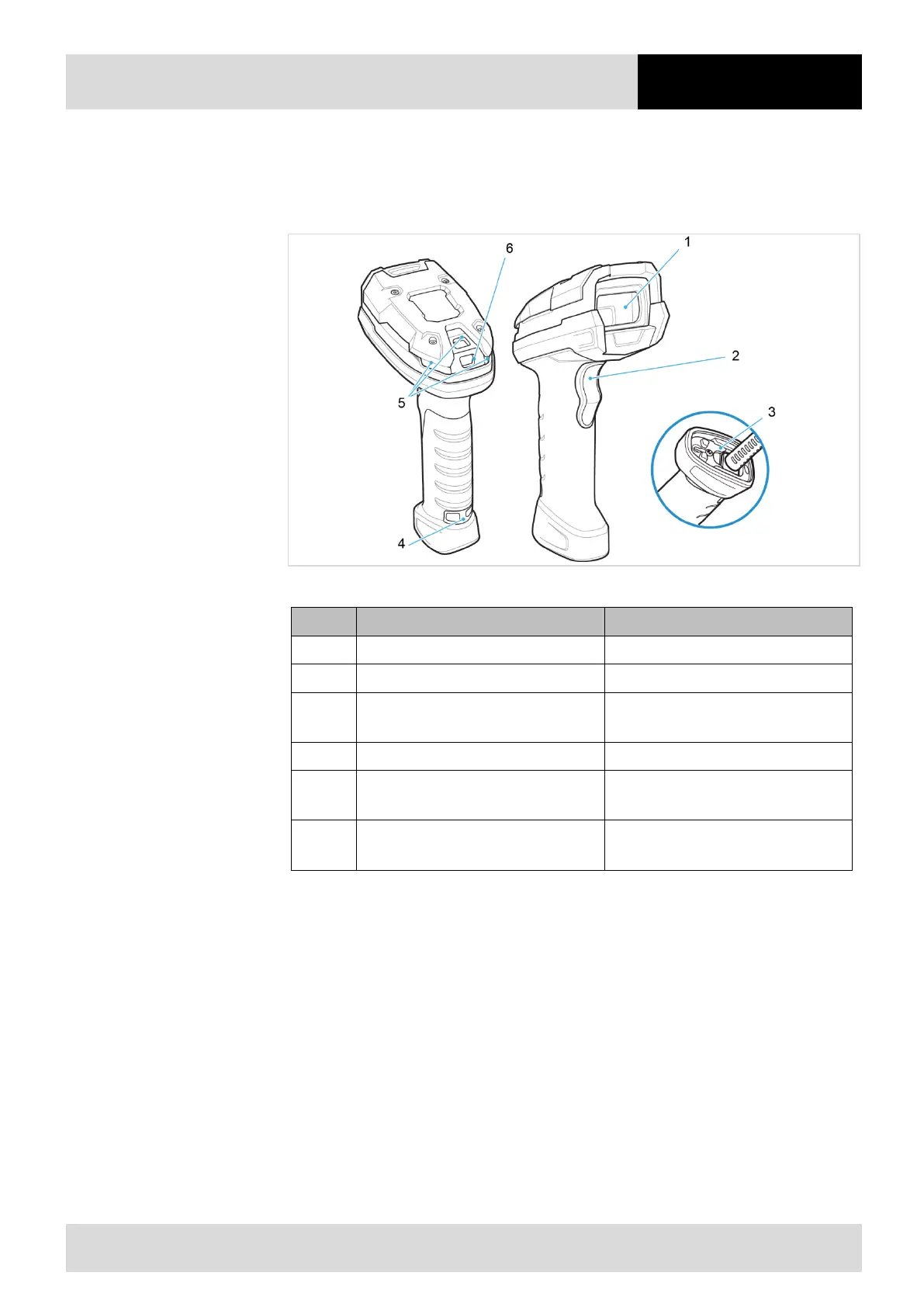

Figure 7 Corded hand-held scanner BCS 3608
ex
Pos.
Description
Function
1
Scan window
Scanning barcodes
2
Trigger button
Starting the scan process
3
Safety lock
Securing the connection cable to prevent
it coming unplugged
4
Lug
Attaching cord to the hand-held scanner
5
Status LEDs Displaying the status of the hand-held
scanner
6
Beeper Transmitting beeps or sequences of
beeps indicating events
Table 19 Construction of hand-held scanner BCS 3608
