BLADE SYNCHRONIZATION
(TS88, Titan 88, and specially modified units only)

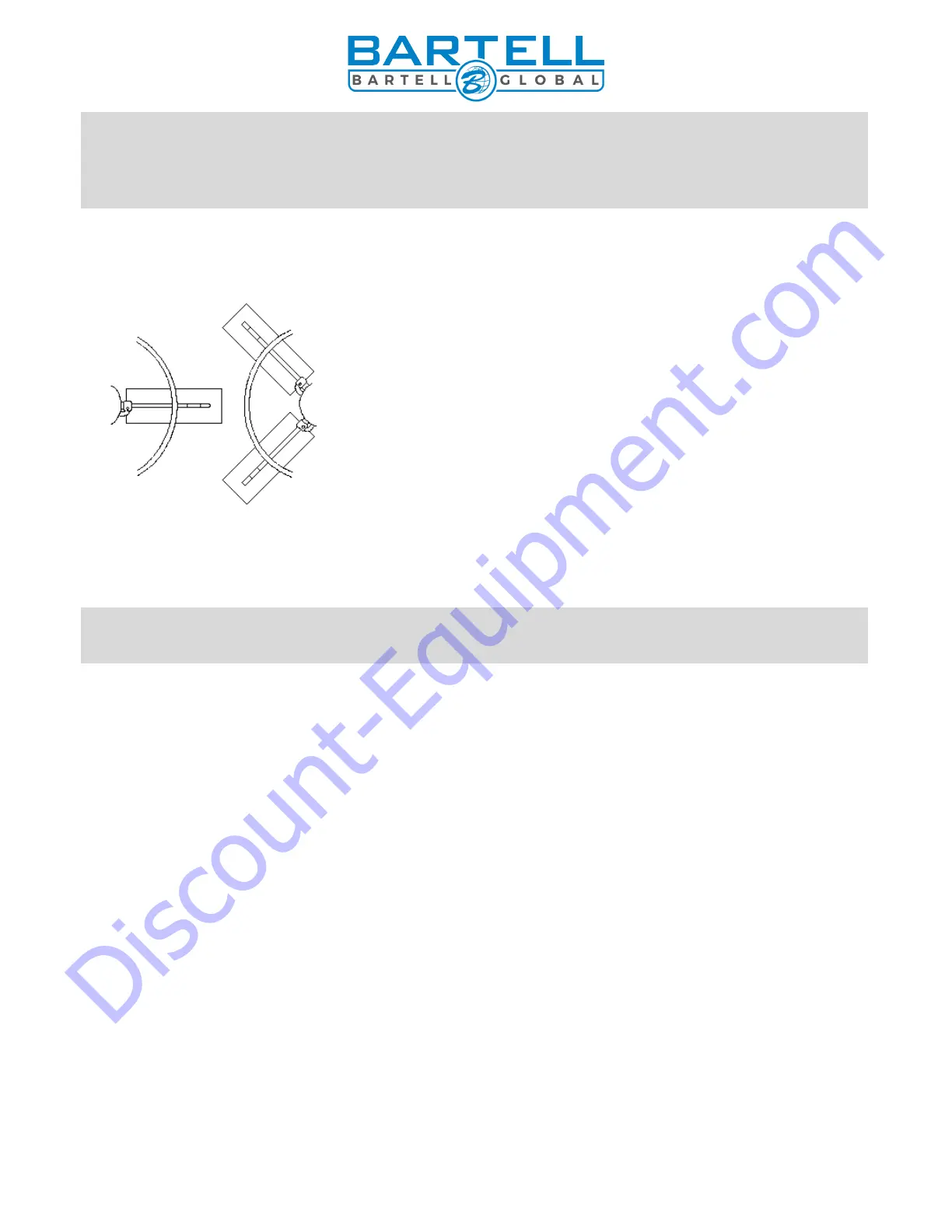

Figure 3.
To avoid blades hitting, make sure spider plates are
positioned as shown with respect to each other after
performing any maintenance.
TRANSPORTER USE
Titan 78, 88, 96
The transporter has pick-up brackets located on the inside of the wheels which should
be positioned under the pick-up points on the frame. Before connection, the handle will be
pointing upwards at approximately a 45-degree angle. Pull the handle down, engaging the
transporter and secure the bracket and transporter to the frame by locking the handle bracket in
the frame lock by means of the hitch pin. Using the handle as a lever, the ride-on may now be
moved. To disconnect the transporter, follow the above steps in reverse.
Titan 96H
The transporter consists of 2 wheels and a dolly. Lift one end of the rider with the dolly
and then insert the wheels into the holes closest to the dolly. Lower the rider onto the wheels
and move the dolly to the other end of the unit. Lift the unit and transport it. When transporting
is complete reverse installation for removal.
