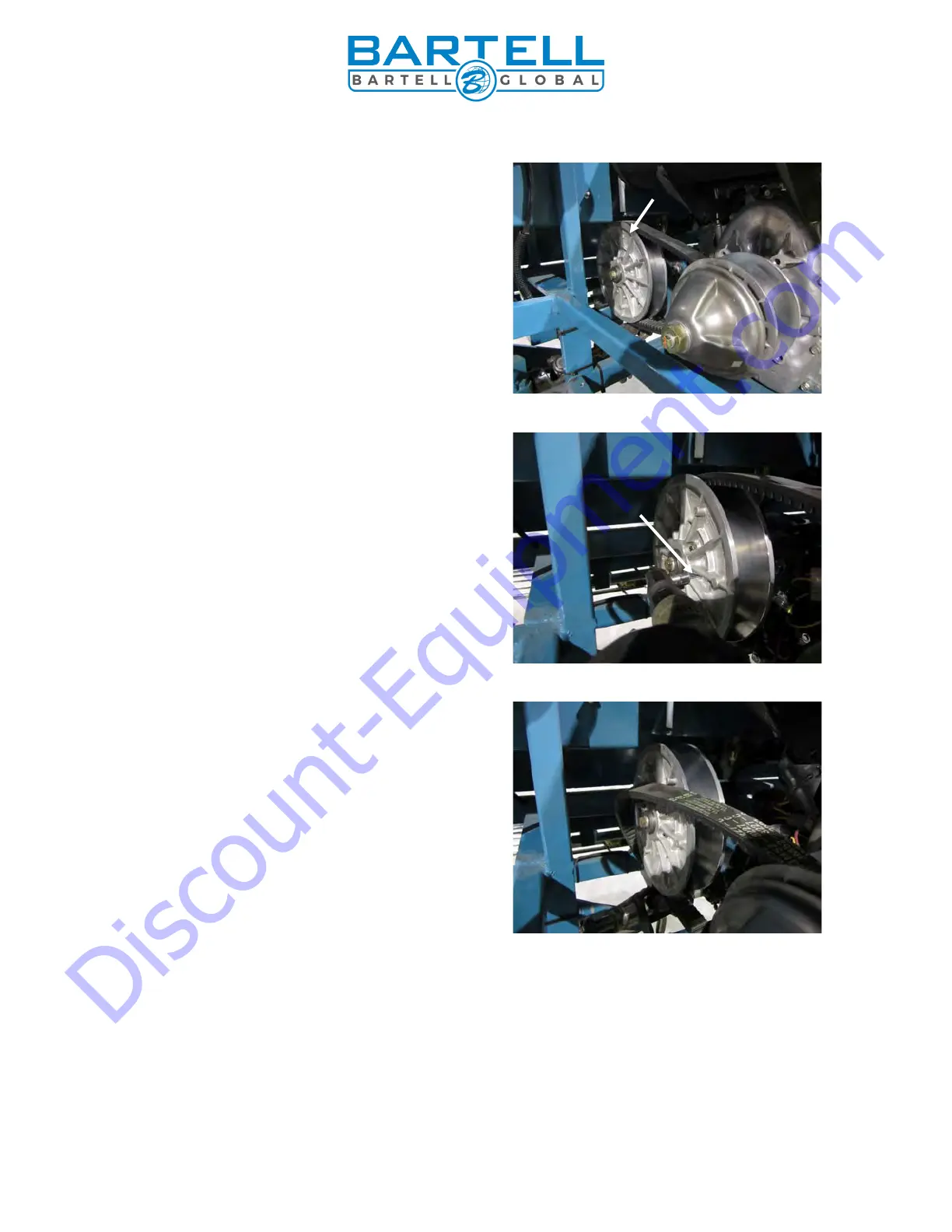

1. Remove belt cover from the machine to
expose the drive components. (Figure 6)
Figure 6
2. Look for the threaded hole on the driven
pulley (near the center) and screw in an
M6 bolt to open the pulley. A 35 mm bolt is
used for this example.
Figure 7
3. Remove the belt from the opened pulley.
Figure 8
M6 threaded hole
Driven Pulley
