4

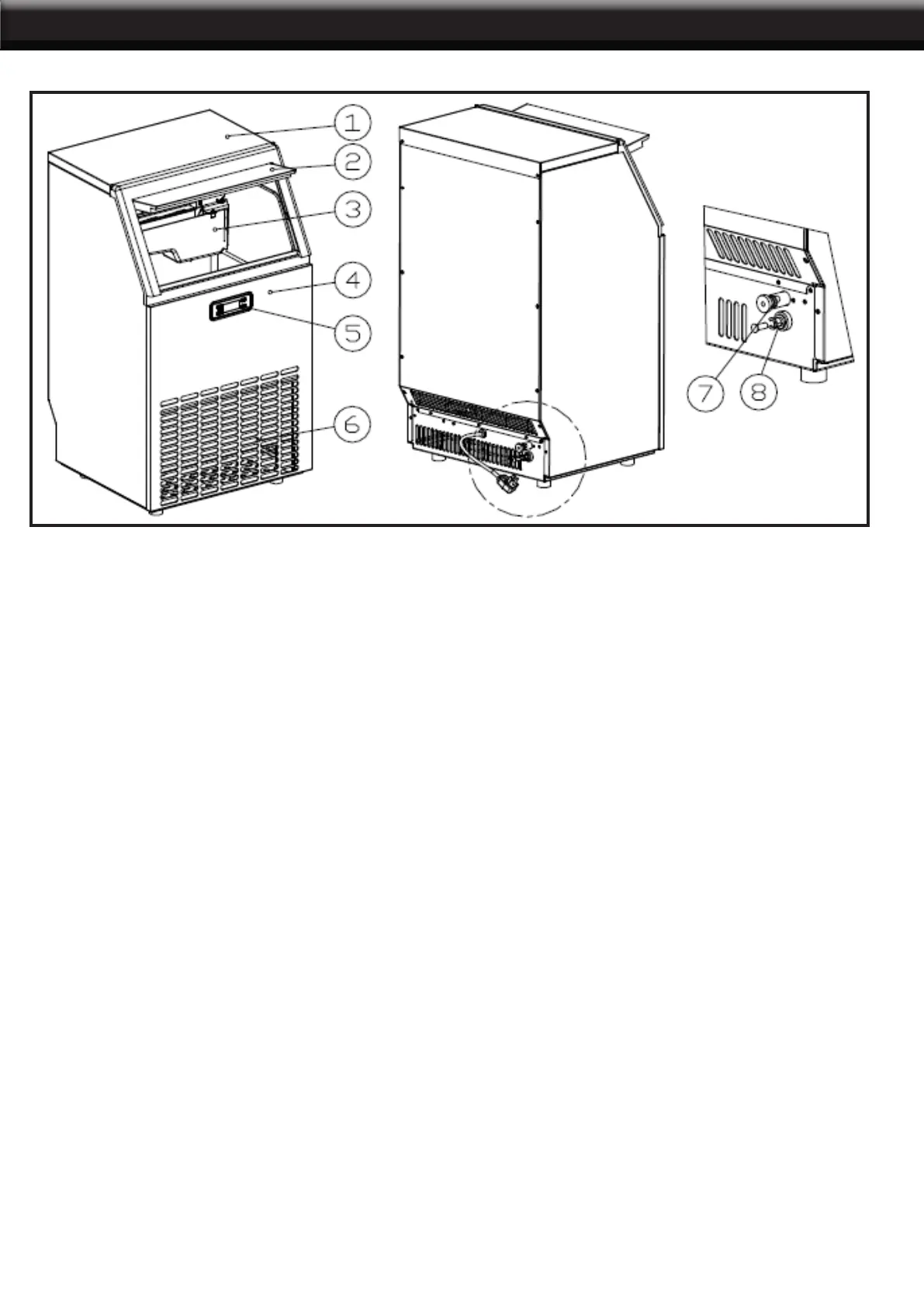

MAIN UNIT
1. Top cover
2. Door for ice taking
3. Ice-making & its water tank assembly: Including ice-making evaporator, water tank,
water pump
and some detecting parts
4. Front panel
5. Operation panel
6. Air outlet: Must keep the air circulate smoothly, hot air will blow out when unit running.
7. Water draining port. Normal plugged with the cap. When need to drain the water,
unplug the cap and connect the white drain pipe.
8. Water inlet port for water supply: Use to connect the water supply pipe.
Accessory: 2 meters long and white color water drain pipe.
water quick connector of the water faucet, 6.35mm diameter and white color water supply
pipe (3 meters long).
